INTAKE 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

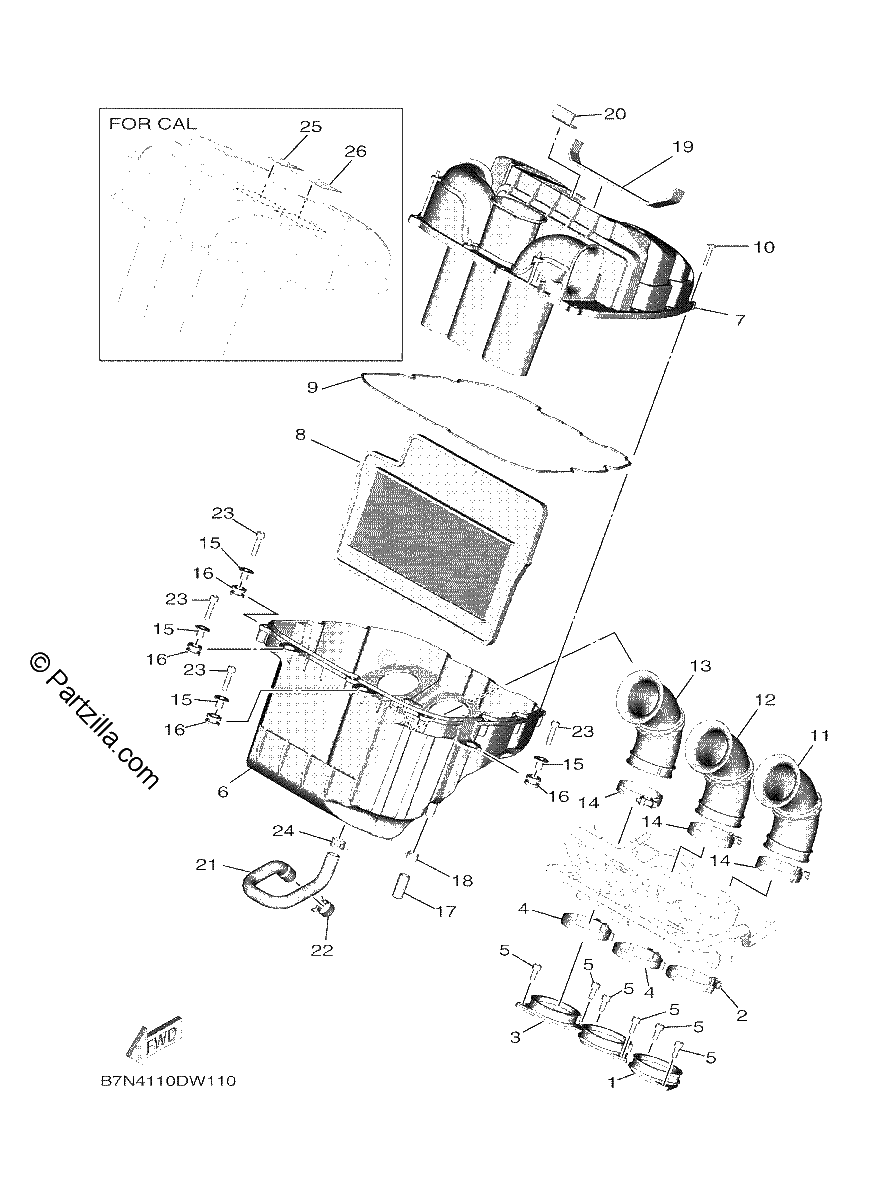

Diagrama de INTAKE 3

Repuestos

#1
B7N-13635-00-00
JOINT, INTAKE 1
$43.72¢21 862
1
#2
90450-58008-00
HOSE CLAMP ASSY
$8.41¢4 206
1
#3
B7N-13636-00-00
JOINT, INTAKE 2
$39.98¢19 988
1
#4
90450-58008-00
HOSE CLAMP ASSY
$8.41¢4 206
1
#5
90110-06168-00
BOLT, HEXAGON SOCKET HEAD
$5.65¢2 825
1
#6
B7N-14411-01-00
CASE, AIR CLEANER 1
$55.08¢27 538
1
#7
B7N-14402-11-00
CAP ASSY, AIR CLEANER
$134.77¢67 387
1
#8
B7N-14451-01-00
ELEMENT, AIR CLEANER
$47.95¢23 975
1
#9
14B-14452-00-00
SEAL
$20.11¢10 056
1
#10
90160-05013-00
SCREW, ROUND TAPPING
$7.34¢3 669
1
#11
B7N-14453-00-00
JOINT, AIR CLEANER 1
$32.65¢16 325
1
#12
B7N-14463-00-00
JOINT, AIR CLEANER 2
$24.22¢12 112
1
#13
B7N-14454-00-00
JOINT
$24.22¢12 112
1
#14
90450-53007-00
HOSE CLAMP ASSY
$8.38¢4 188
1
#15
90387-06205-00
COLLAR
$6.26¢3 131
1
#16
90480-12314-00
GROMMET
$3.38¢1 688
1
#17
1WS-1443E-00-00
PIPE, DRAIN
$4.85¢2 425
1
#18
90467-13083-00
CLIP
$6.27¢3 137
1
#19
B7N-14425-00-00
DAMPER 1
$3.94¢1 969
1
#20
B7N-14426-01-00
DAMPER 2
$1.29¢644
1
#21
B7N-15393-00-00
PIPE, BREATHER 2
$14.01¢7 006
1
#22
90467-17003-00
CLIP
$6.47¢3 238
1
#23
90110-06232-00
BOLT, HEXAGON SOCKET HEAD
$6.26¢3 131
1
#24
90467-15001-00
CLIP
$7.05¢3 525
1
