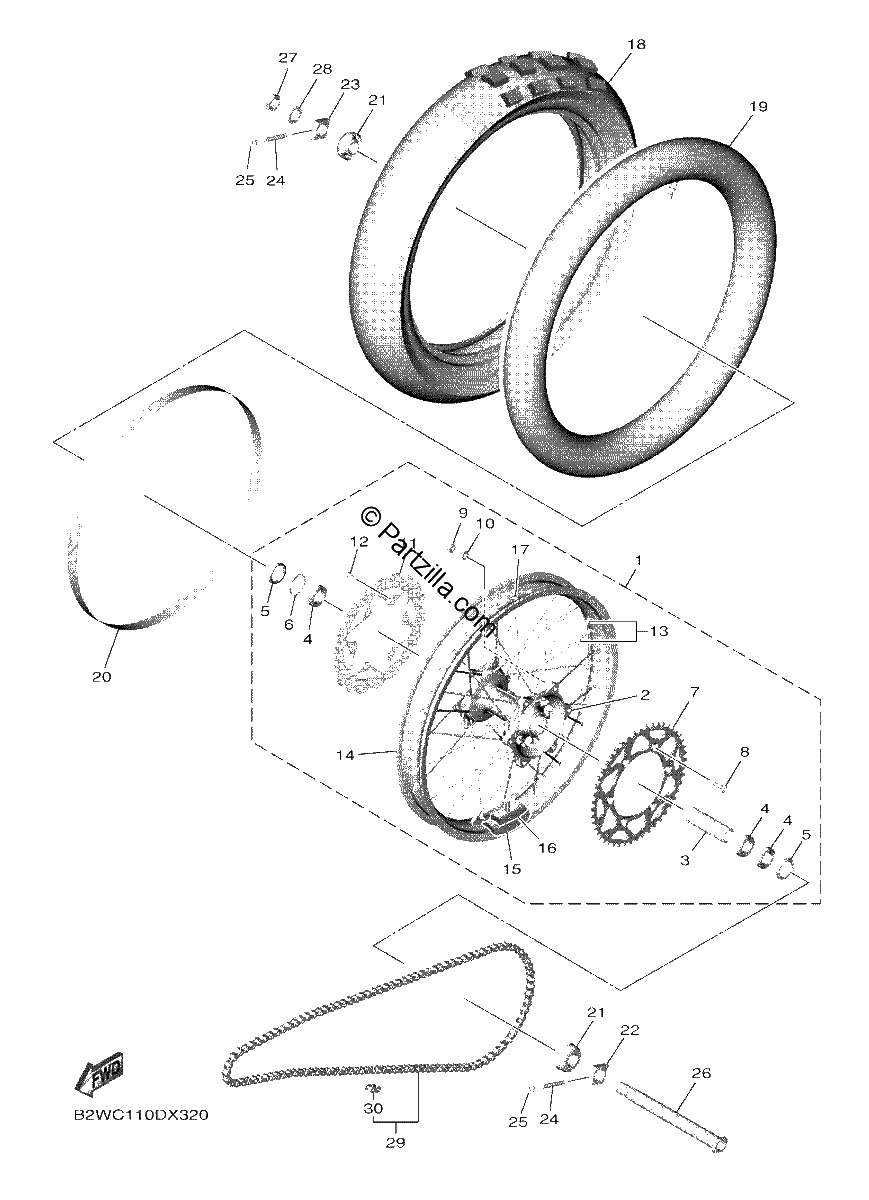

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR WHEEL SUB-ASSY
$586.49¢293 244
#2
HUB, REAR
$244.69¢122 343
#3
SPACER, bearing
$42.62¢21 310
#4
BEARING
$23.48¢11 742
#5
. OIL SEAL
$17.88¢8 941
#6
Circlip
$6.83¢3 415
#7
SPROCKET, DRIVEN (50T)
$51.22¢25 611
#7
SPROCKET, DRIVEN (51T)
$90.84¢45 419
#7
SPROCKET, DRIVEN (49T)
$93.14¢46 569
#7
SPROCKET, DRIVEN (52T)
$103.49¢51 744
#7
SPROCKET, DRIVEN (48T)
$99.91¢49 956
#7
SPROCKET, DRIVEN (47T)
$78.29¢39 146
#8
bolt
$3.12¢1 558
#9
NUT, SELF-LOCKING
$6.59¢3 295
#10
WASHER, plate
$6.32¢3 162
#11
DISK, REAR BRAKE 2
$127.89¢63 946
#12
SCREW, COUNTERSUNK
$2.92¢1 461
#13
SPOKE SET, REAR
$181.80¢90 902
#14
RIM (215-19)
$313.51¢156 757
#15
SPACER,BEAD
$36.54¢18 268
#16
Damper
$7.28¢3 640
#17
GROMMET
$7.42¢3 709
#18
TIRE (110/90-19 62M MX33)
$183.99¢91 994
#19
TUBE 110/90-19
$56.55¢28 273
#20
BAND,RIM 110/90-19
$16.09¢8 044
#21
COLLAR ASSY
$37.85¢18 923
#22
PULLER, CHAIN 1
$32.05¢16 025
#23
PULLER, CHAIN 2
$29.15¢14 576
#24
bolt
$7.37¢3 686
#25
Nut
$5.73¢2 864
#26
AXLE, WHEEL
$87.00¢43 499
#27
NUT, SELF-LOCKING
$29.72¢14 858
#28
WASHER, plate
$6.46¢3 231
#29
CHAIN(DID520DMS SDH G&B L114)
$155.32¢77 660
#30
JOINT, CHAIN(DID520DMS G RJ)
$5.40¢2 702
