EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

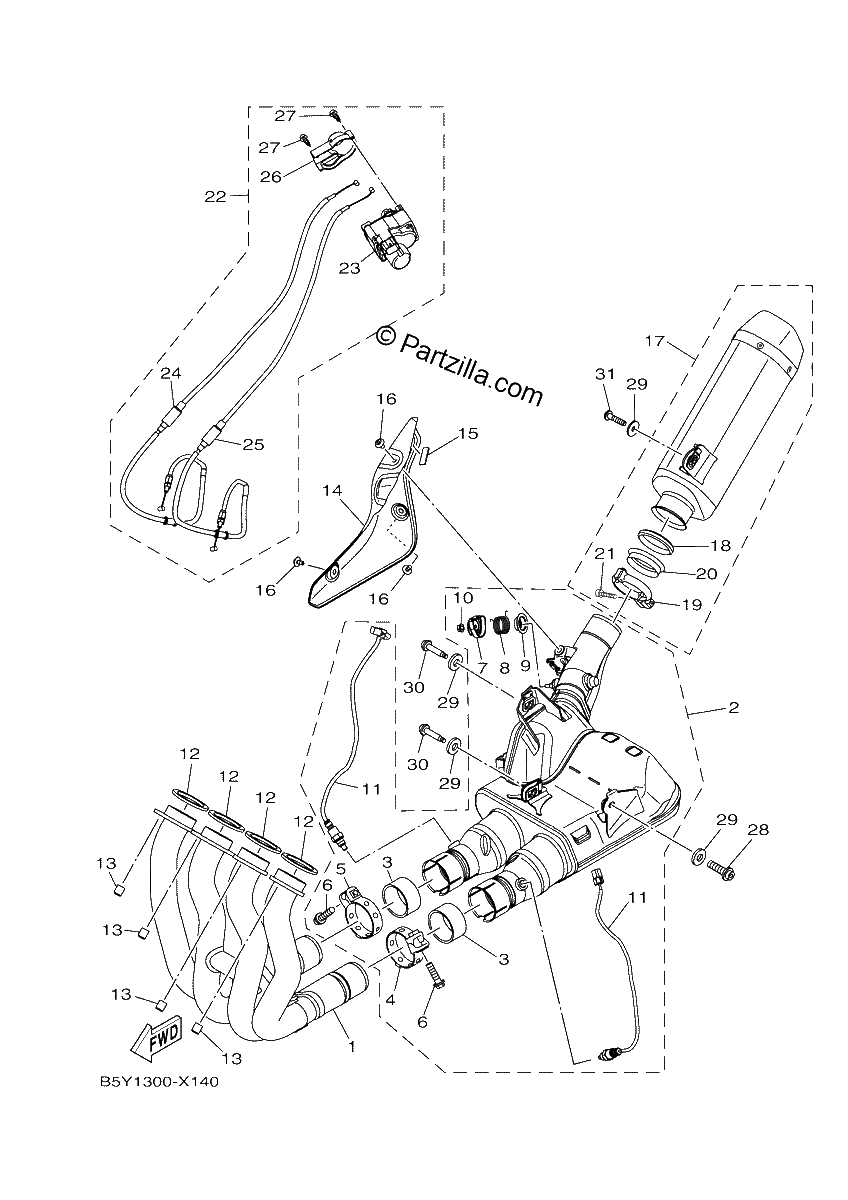

Diagrama de EXHAUST

Repuestos

#1
B60-14602-00-00
EXHAUST PIPE COMP.
$1214.99¢607 494
1
#2
B5Y-14730-10-00
CHAMBER ASSY
$2453.74¢1 226 869
1
#3
5YU-14714-10-00
GASKET, MUFFLER
$46.33¢23 163
1
#4
39P-14715-00-00
BAND, MUFFLER
$37.81¢18 906
1
#5
2CR-14715-00-00
BAND, MUFFLER
$34.98¢17 488
1
#6
95024-08035-00
BOLT,FLANGE (3EF)
$7.34¢3 669
1
#7
2C0-14865-00-00
PULLEY
$30.15¢15 075
1
#8
2C0-14856-00-00
SPRING
$4.96¢2 481
1
#9
2D1-14843-00-00
SEAT, SPRING
$7.14¢3 569
1
#10
90179-06063-00
NUT
$4.30¢2 150
1
#11
2CR-8592A-20-00
SENSOR, OXYGEN (replaces 2CR-8592A-10-00)
$277.31¢138 656
1
#12
2CR-14613-00-00
GASKET, EXHAUST PIPE
$11.34¢5 669
1
#13
90179-08442-00
NUT,SPEC'L SHAPE
$6.81¢3 406
1
#14
B5Y-14718-00-00
PROTECTOR, MUFFLER 1
$262.31¢131 156
1
#15
B5Y-1475P-00-00
SEAT
$2.71¢1 356
1
#16
90111-06153-00
BOLT, HEX. SOCKET BUTTON
$1.42¢712
1
#17
B5Y-14750-00-00
SILENCER ASSY
$2704.99¢1 352 494
1
#18
2CR-14623-00-00
GASKET, EXHAUST PIPE
$17.01¢8 506
1
#19
2CR-14725-00-00
BAND, MUFFLER
$54.75¢27 375
1
#20
2CR-14618-00-00
RING, STOPPER
$19.71¢9 856
1
#21
90110-06343-00
BOLT, HEXAGON SOCKET HEAD
$3.38¢1 688
1
#22
B5Y-4616A-01-00
SERVO MOTOR COMP
$543.39¢271 694
1
#23
B5Y-85820-01-00
SERVO MOTOR ASSY
$365.41¢182 706
1
#24
B5Y-1133E-00-00
CABLE, PULLEY 1
$96.27¢48 137
1
#25
B5Y-1133F-00-00
CABLE, PULLEY 2
$84.75¢42 375
1
#26
5VY-85829-01-00
COVER, SERVO MOTOR
$12.09¢6 044
1
#27
97702-50514-00
SCREW, TAPPING
$4.56¢2 281
1
#28
90110-08099-00
BOLT, HEXAGON SOCKET HEAD
$8.01¢4 006
1
#29
90201-087G2-00
WASHER, PLATE
$3.70¢1 850
1
#30
90109-08238-00
BOLT
$3.69¢1 844
1
#31
90110-08071-00
BOLT, HEXAGON SOCKET HEAD
$8.34¢4 169
1
