ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

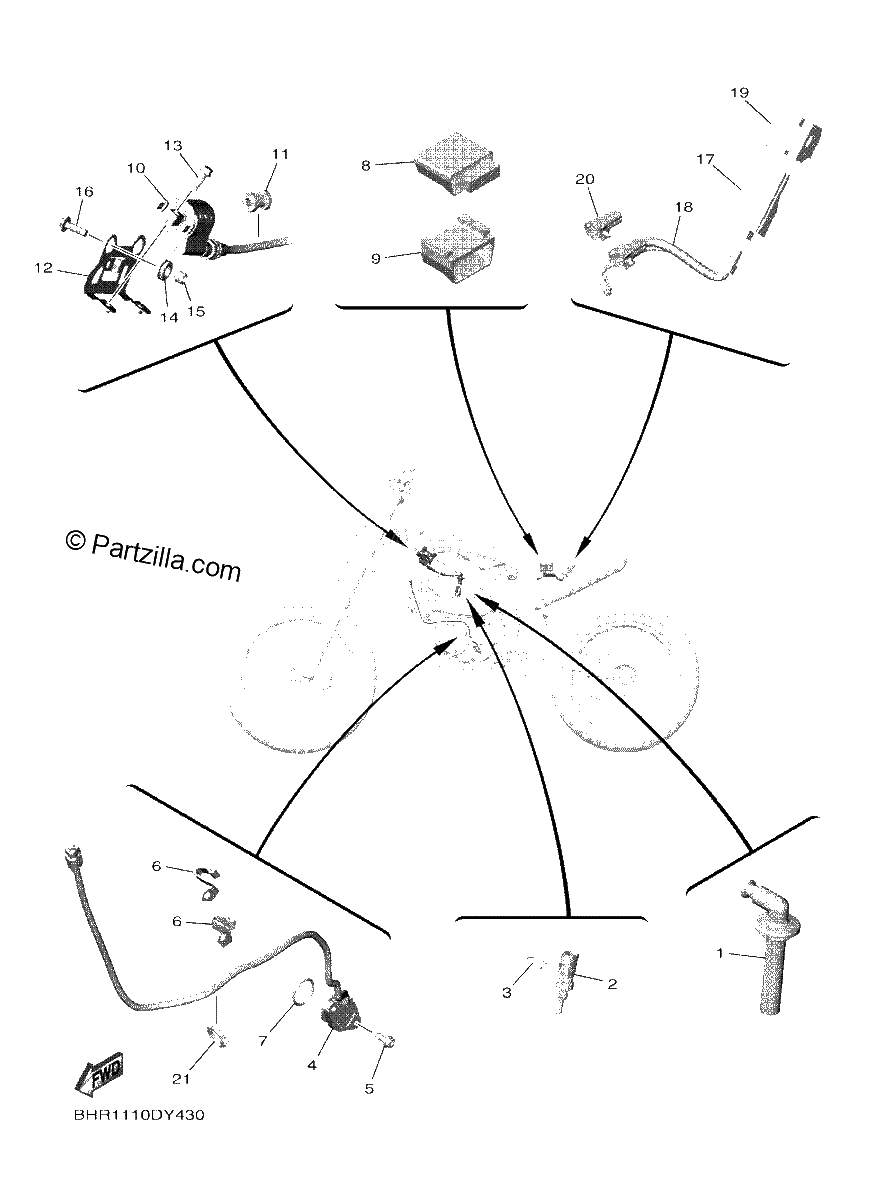

Diagrama de ELECTRICAL 1

Repuestos

#1
B2W-82370-00-00
PLUG CAP ASSY
$161.28¢80 638
1
#2
BHR-83591-00-00
THERMO UNIT
$37.75¢18 875
1
#3
BHR-83525-00-00
CLIP
$2.48¢1 238
1
#4
BHR-82540-00-00
NEUTRAL SWITCH ASSY
$87.01¢43 506
1
#5
90110-05062-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#6
BHR-15484-00-00
CLAMP 2
$17.16¢8 581
1
#7
93210-21001-00
O-RING
$5.69¢2 844
1
#8
BHR-8591A-00-00
ENGINE CONTROL UNIT ASSY
$667.49¢333 744
1
#9
BHR-82155-00-00
BAND
$36.23¢18 113
1
#10
BHR-82310-00-00
IGNITION COIL ASSY
$95.84¢47 919
1
#11
90480-11015-00
Grommet
$4.15¢2 075
1
#12
BHR-2194U-00-00
STAY, IGNITION COIL
$26.63¢13 313
1
#13
90105-06219-00
Bolt, Flange
$2.16¢1 081
1
#14
90480-13025-00
Grommet
$3.79¢1 894
1
#15
90387-066J9-00
COLLAR
$8.89¢4 444
1
#16
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.81¢406
1
#17
BHR-85810-00-00
COMMUNICATION CONT. UNIT ASSY
$1108.74¢554 369
1
#18
BHR-85721-00-00
WIRE, LEAD
$56.54¢28 269
1
#19
BHR-85546-00-00
BAND
$19.77¢9 888
1
#20
BHR-82378-00-00
CONNECTOR
$15.29¢7 644
1
#21
90465-10098-00
CLAMP
$2.78¢1 388
1
