TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

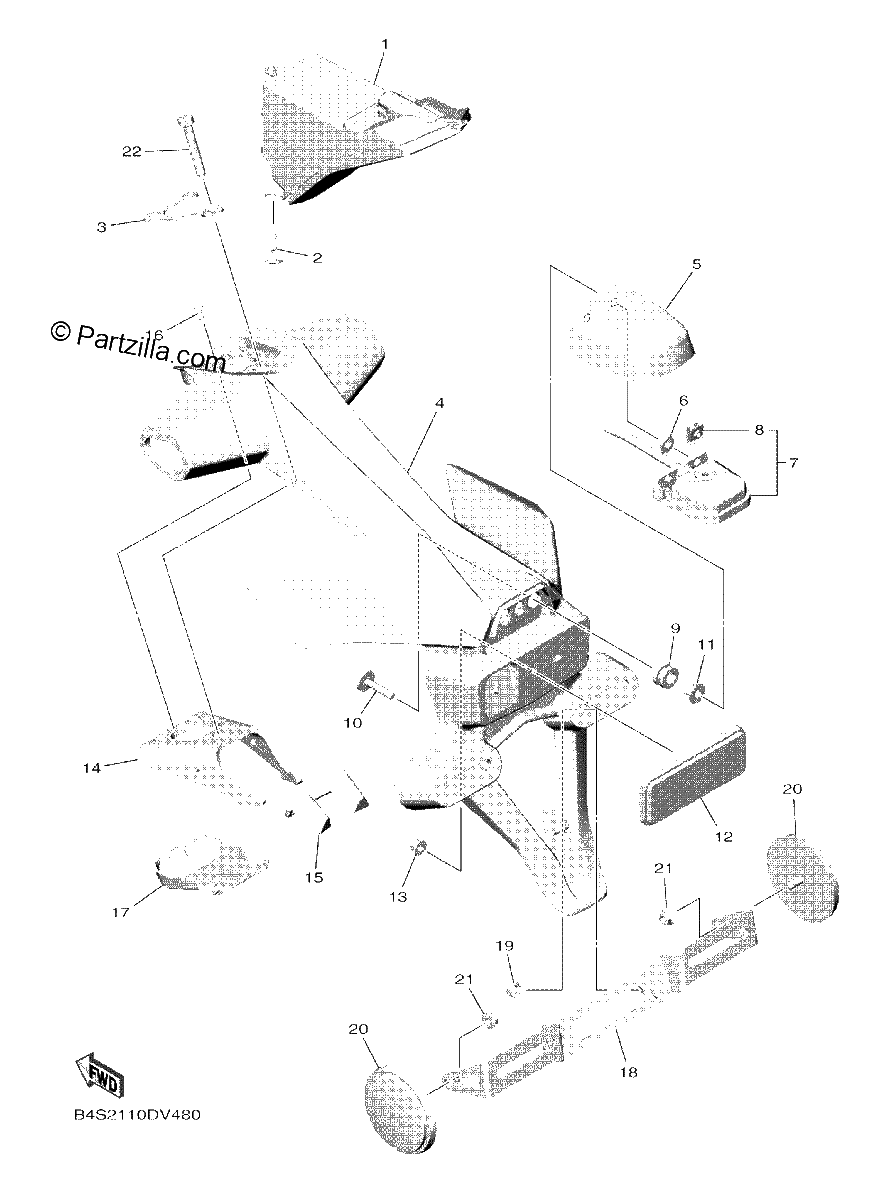

Diagrama de TAILLIGHT

Repuestos

#1
2CR-84710-00-00
TAILLIGHT UNIT ASSY
$206.60¢103 300
1
#2
90269-06008-00
RIVET
$8.80¢4 400
1
#3
2CR-21615-00-00
WASHER, SPECIAL 1
$9.53¢4 763
1
#4
2CR-21629-00-00
GUARD, MUD
$298.05¢149 025
1
#5
2CR-2163F-00-00
COVER, REAR FENDER 3
$184.35¢92 175
1
#6
90387-05035-00
COLLAR
$5.99¢2 994
1
#7
2CR-84745-00-00
LICENSE LIGHT UNIT ASSY
$198.98¢99 488
1
#8
90183-05061-00
NUT, SPRING
$4.72¢2 363
1
#9
90480-11009-00
GROMMET
$0.96¢481
1
#10
90159-05035-00
SCREW, WITH WASHER
$7.41¢3 706
1
#11
90387-05003-00
COLLAR
$5.53¢2 763
1
#12
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#13
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#14
2CR-2161G-00-00
BRACKET 6
$34.77¢17 388
1
#15
2CR-21639-00-00
DAMPER 2
$8.45¢4 225
1
#16
90267-32146-00
RIVET, BLIND
$6.91¢3 456
1
#17
2CR-2163A-01-00
COVER, REAR FENDER 1
$7.06¢3 531
1
#18
1RC-84751-00-00
BRACKET, LICENSE
$34.89¢17 444
1
#19
95607-06200-00
NUT, U FLANGE
$12.61¢6 306
1
#20
449-85131-02-00
REFLECTOR, REAR 1
$30.67¢15 337
1
#21
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#22
90110-06140-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
