CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

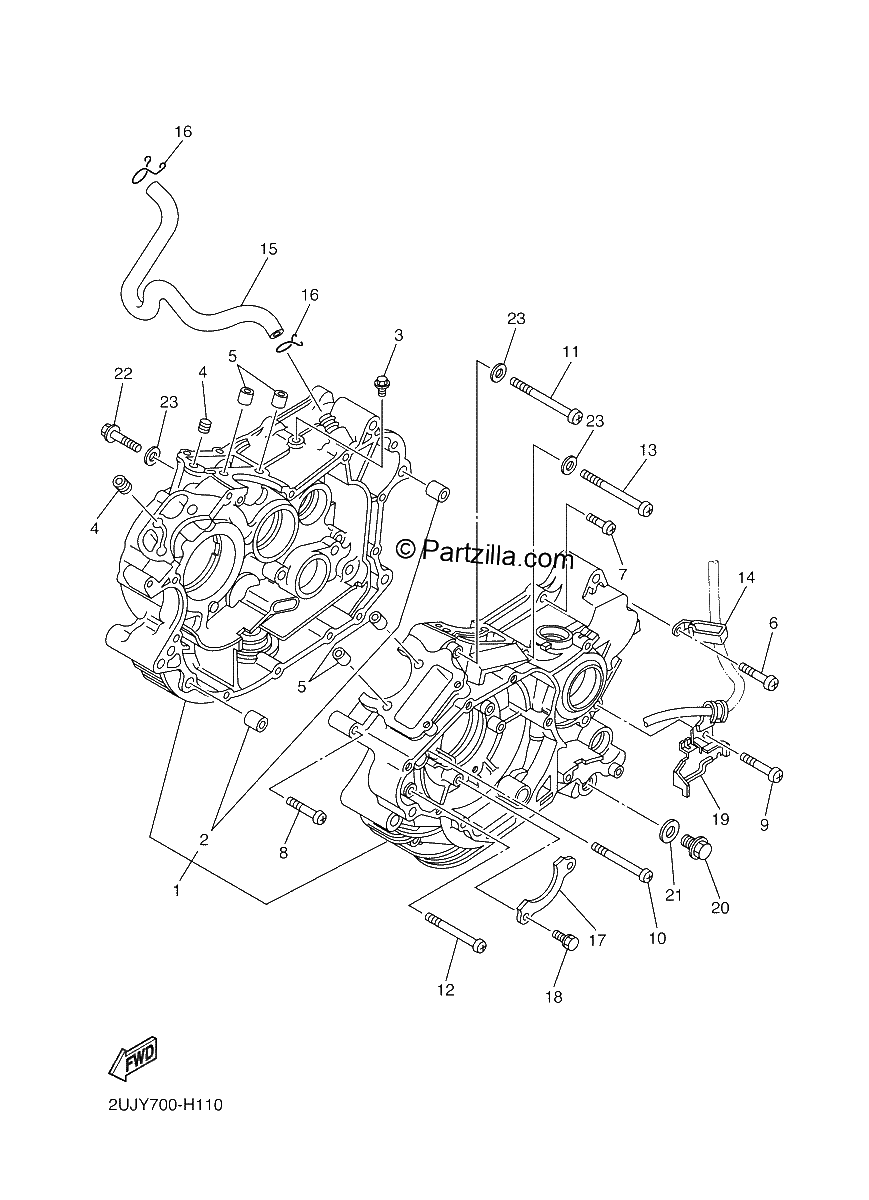

Diagrama de CRANKCASE

Repuestos

#1
2UJ-15100-03-00
CRANKCASE ASSY
$1006.99¢503 493
1
#2
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#3
90105-06048-00
BOLT, FLANGE
$1.64¢822
1
#4
2UJ-15138-00-00
NOZZLE 1
$4.43¢2 214
1
#5
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
#6
98504-06030-00
SCREW, PAN HEAD
$5.08¢2 541
1
#7
98504-06030-00
SCREW, PAN HEAD
$5.08¢2 541
1
#8
98504-06040-00
SCREW, PAN HEAD
$6.75¢3 375
1
#9
98507-06060-00
SCREW, PAN HEAD
$6.14¢3 070
1
#10
98507-06070-00
SCREW, PAN HEAD
$7.58¢3 789
1
#11
98504-06070-00
SCREW, PAN HEAD
$19.00¢9 499
1
#12
98507-06080-00
SCREW, PAN HEAD
$5.92¢2 961
1
#13
98504-06080-00
SCREW, PAN HEAD
$1.89¢943
1
#14
90465-08277-00
CLAMP
$10.68¢5 342
1
#15
2UJ-11166-00-00
PIPE, BREATHER 1
$37.97¢18 987
1
#16
90467-14015-00
CLIP
$8.26¢4 129
1
#17
2UJ-12279-00-00
PLATE
$8.96¢4 479
1
#18
90119-06238-00
BOLT, WITH WASHER
$1.79¢897
1
#19
90465-08060-00
CLAMP
$12.07¢6 038
1
#20
90340-14132-00
PLUG, STRAIGHT SCREW
$2.90¢1 449
1
#21
214-11198-01-00
GASKET
$2.97¢1 483
1
#22
90153-06029-00
SCREW, TAPPING
$9.13¢4 566
1
#23
90430-06014-00
GASKET
$7.59¢3 795
1
