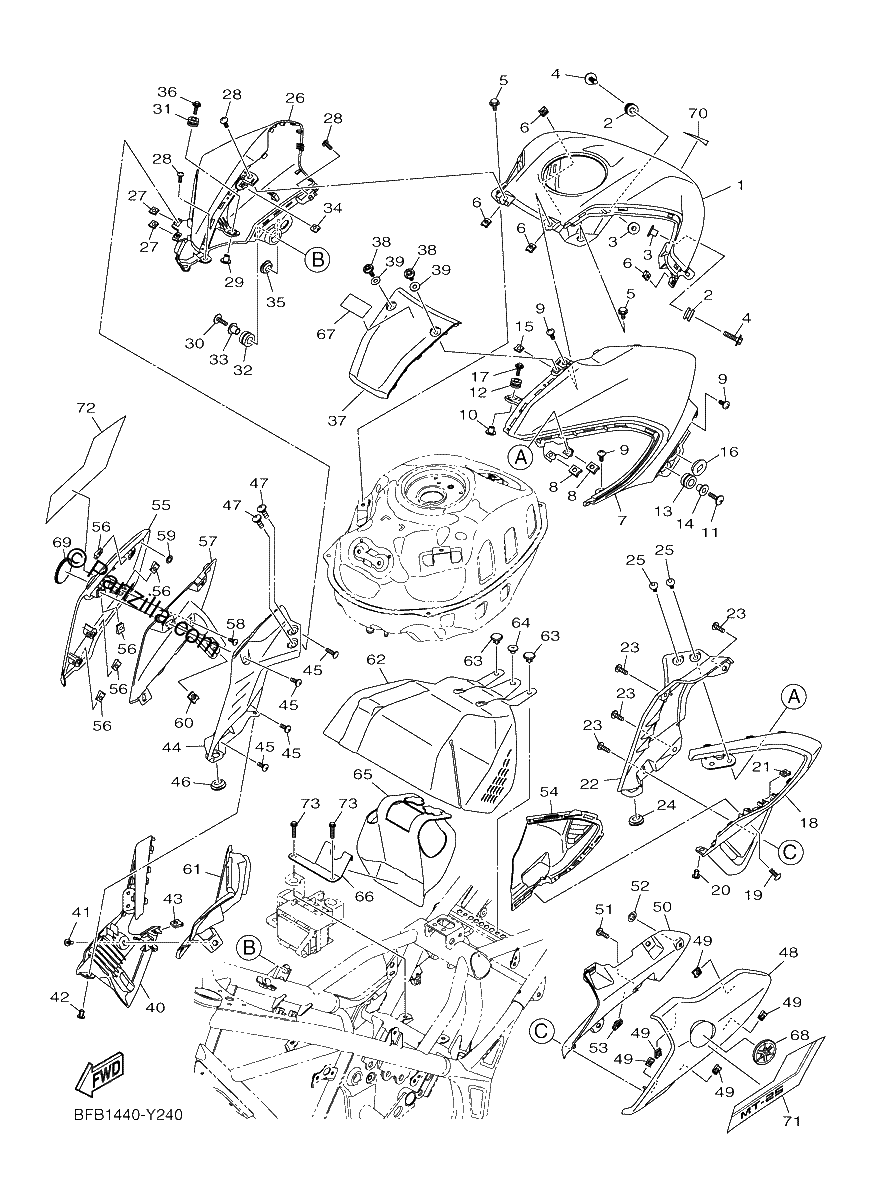

FUEL TANK 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, TANK (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$56.54¢28 269
#2
GROMMET
$2.95¢1 475
#3
COLLAR
$2.94¢1 469
#4
BOLT, WITH WASHER
$2.06¢1 031
#5
BOLT (B9B1)
$0.49¢244
#6
NUT, SPRING
$1.25¢625
#7
COVER, TANK SIDE 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$17.50¢8 750
#8
NUT, SPRING
$1.25¢625
#9
TAPPING SCREW
$2.36¢1 181
#10
COLLAR
$2.94¢1 469
#11
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
#12
GROMMET
$2.95¢1 475
#13
GROMMET
$7.52¢3 762
#14
COLLAR
$5.41¢2 706
#15
NUT, SPRING
$2.82¢1 412
#16
Grommet
$5.72¢2 863
#17
BOLT, WITH WASHER
$6.38¢3 188
#18
DUCT 1
$12.75¢6 375
#19
SCREW, ROUND TAPPI
$0.51¢256
#20
RIVET
$1.71¢856
#21
NUT, SPRING
$1.25¢625
#22
GUIDE, AIR 3
$12.24¢6 119
#23
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#24
Grommet
$5.72¢2 863
#25
SCREW, ROUND TAPPI
$0.51¢256
#26
COVER, TANK SIDE 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$17.50¢8 750
#27
NUT, SPRING
$1.25¢625
#28
TAPPING SCREW
$2.36¢1 181
#29
COLLAR
$2.94¢1 469
#30
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
#31
GROMMET
$2.95¢1 475
#32
GROMMET
$7.52¢3 762
#33
COLLAR
$5.41¢2 706
#34
NUT, SPRING
$2.82¢1 412
#35
Grommet
$5.72¢2 863
#36
BOLT, WITH WASHER
$6.38¢3 188
#37
COVER, TOP (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$17.76¢8 881
#38
BOLT,HEX. SOCKET B
$2.60¢1 300
#39
WASHER, PLATE
$7.66¢3 831
#40
DUCT 2
$12.75¢6 375
#41
SCREW, ROUND TAPPI
$0.51¢256
#42
RIVET
$1.71¢856
#43
NUT, SPRING
$1.25¢625
#44
GUIDE, AIR 4
$12.24¢6 119
#45
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#46
Grommet
$5.72¢2 863
#47
SCREW, ROUND TAPPI
$0.51¢256
#48
SCOOP, AIR 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$31.46¢15 731
#49
NUT, SPRING
$1.25¢625
#50
PANEL, INNER 1
$12.24¢6 119
#51
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#52
NUT, SPRING
$0.50¢250
#53
NUT, SPRING
$1.25¢625
#54
GRILL, AIR INTAKE
$9.91¢4 956
#55
SCOOP, AIR 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$31.18¢15 588
#56
NUT, SPRING
$1.25¢625
#57
PANEL, INNER 2
$12.24¢6 119
#58
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#59
NUT, SPRING
$0.50¢250
#60
NUT, SPRING
$1.25¢625
#61
GRILL, AIR INTAKE
$10.77¢5 387
#62
COVER, AIR CLEANER
$31.88¢15 938
#63
RIVET,SPEC'L SHAPE
$7.13¢3 563
#64
RIVET
$1.95¢975
#65
GUARD, FLAP
No Disponible
#66
STAY, FLAP
$7.50¢3 750
#67
. LABEL, CAUTION
$7.16¢3 581
#68
TUNING FORK MARK, 3D
$10.56¢5 281
#69
TUNING FORK MARK, 3D
$10.56¢5 281
#70
GRAPHIC, FUEL TANK 7 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$3.81¢1 906
#71
GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$9.31¢4 656
#72
GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$9.31¢4 656
#73
BOLT, FLANGE
$1.75¢875
