CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

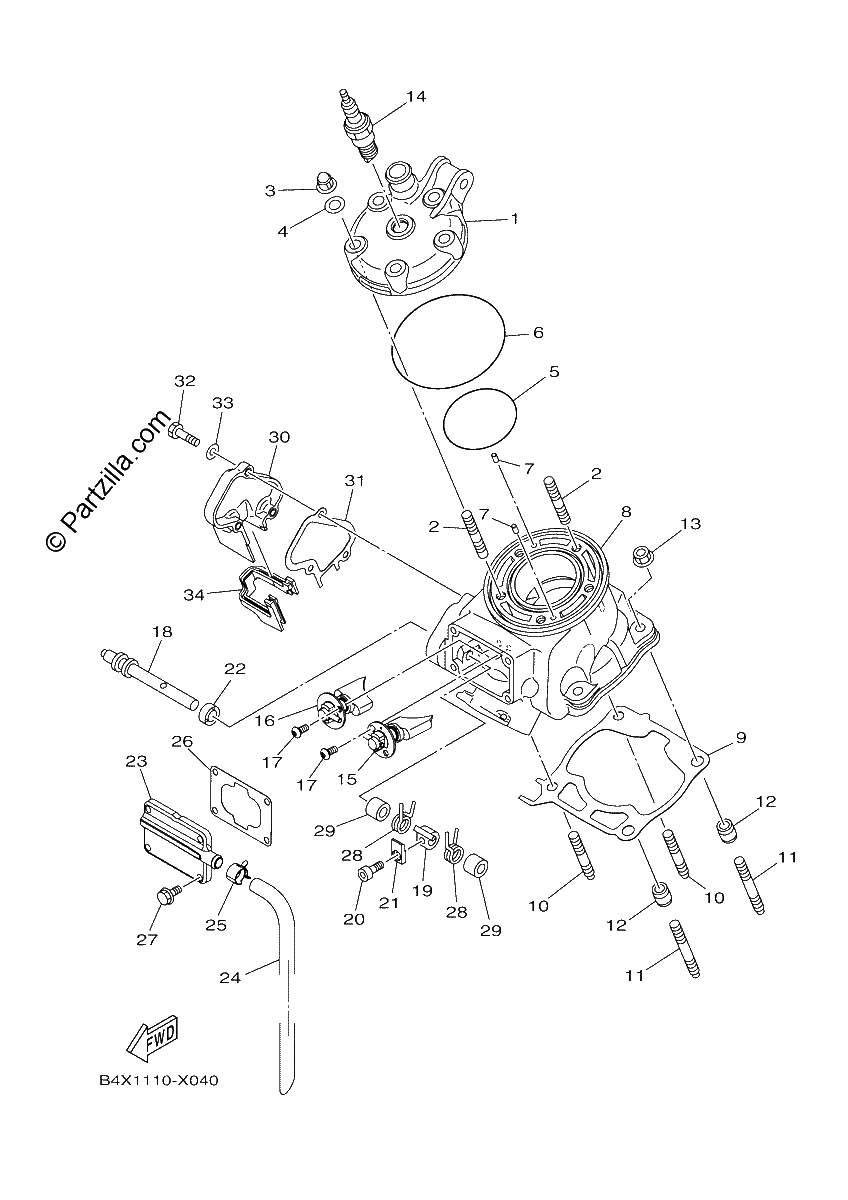

Diagrama de CYLINDER HEAD

Repuestos

#1
BRX-11111-00-00
HEAD, CYLINDER 1
$341.52¢170 758
1
#2
90116-08027-00
BOLT, STUD
$3.93¢1 967
1
#3
90176-08005-00
NUT, CROWN
$2.24¢1 121
1
#4
90201-080L8-00
WASHER, PLATE
$3.07¢1 535
1
#5
93210-63442-00
O-Ring
$6.32¢3 162
1
#6
93210-90785-00
O-Ring
$10.05¢5 026
1
#7
93604-08071-00
PIN, DOWEL
$6.75¢3 375
1
#8
B4X-11311-00-00
CYLINDER 1
$947.59¢473 794
1
#9
B4X-11351-00-00
GASKET, CYLINDER
$20.32¢10 160
1
#10
90116-08031-00
BOLT, stud
$9.12¢4 560
1
#11
90116-08028-00
BOLT, stud
$7.44¢3 720
1
#12
99590-10114-00
PIN, DOWEL
$4.83¢2 415
1
#13
90179-08019-00
Nut
$5.73¢2 864
1
#14
94709-00193-00
PLUG, SPARK (NGK BR-9EVX)
$33.29¢16 646
1
#15
BRX-1131D-00-00
VALVE ASSY
$266.26¢133 130
1
#16
BRX-1132D-00-00
VALVE ASSY 2
$266.26¢133 130
1
#17
90149-05001-00
SCREW,PAN HEAD(1RW This item has been discontinued and may not be available. Contact us for more information.
$6.14¢3 070
1
#18
5HD-1131V-00-00
SHAFT 1
$80.04¢40 020
1
#19
4SS-11832-00-00
LEVER, LINK
$73.94¢36 973
1
#20
91312-04010-00
BOLT, HEXAGON SOCKET HEAD
$7.57¢3 783
1
#21
5UN-11395-00-00
HOLDER
$49.59¢24 794
1
#22
93104-08040-00
OIL SEAL
$13.40¢6 699
1
#23
B4X-1131M-00-00
COVER
$37.97¢18 987
1
#24
4JY-11166-00-00
PIPE,BREATHER 1
$19.56¢9 781
1
#25
90467-13062-00
CLIP
$7.57¢3 783
1
#26
1C3-11354-00-00
Gasket
$4.81¢2 403
1
#27
90119-05008-00
BOLT, WITH WASHER
$0.64¢322
1
#28
90508-16134-00
Spring, Torsion
$5.43¢2 714
1
#29
90387-08785-00
Collar
$6.76¢3 381
1
#30
B4X-11992-00-00
HOUSING 2
$16.48¢8 240
1
#31
B4X-11993-00-00
GASKET
$5.34¢2 668
1
#32
97002-05020-00
BOLT
$2.71¢1 357
1
#33
92902-05600-00
WASHER, PLATE
$0.61¢305
1
#34
B4X-11995-00-00
SEAL, HOUSING
$11.56¢5 779
1
