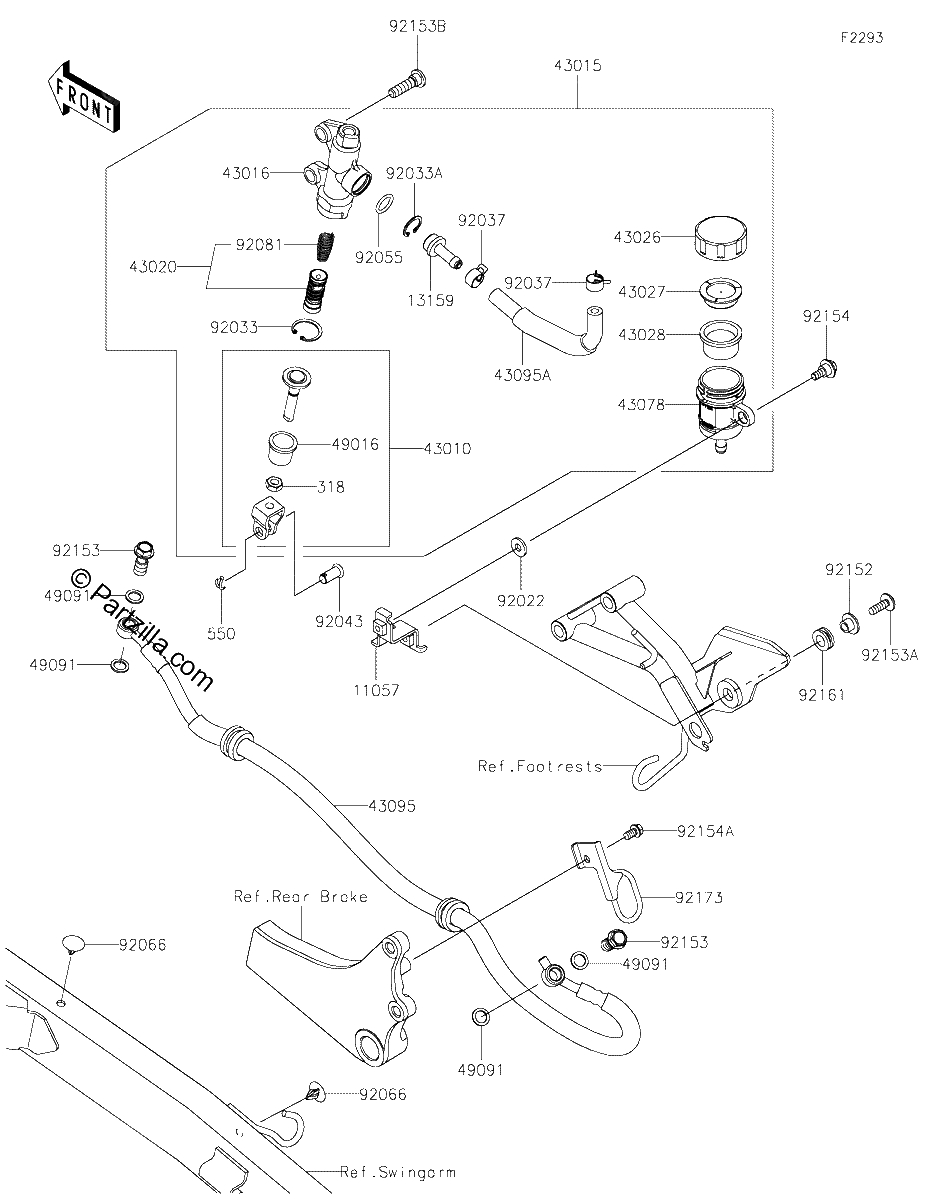

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#318
NUT HEX SMALL,8MM
$1.24¢621
#550
PIN COTTER,2.0X15
$1.08¢541
#11057
BRACKET,RR MASTER CYLINDER
$6.34¢3 168
#13159
CONNECTOR
$7.72¢3 858
#43010
ROD Assembly BRAKE
$73.80¢36 898
#43015
CYLINDER-ASSY-MASTER,RR
$480.68¢240 338
#43016
CYLINDER MASTER,Rear
$180.44¢90 218
#43020
PISTON-COMP-BRAKE
$68.37¢34 184
#43026
CAP-BRAKE
$41.78¢20 890
#43027
PLATE DIAPHRAGM
$5.35¢2 674
#43028
DIAPHRAGM
$19.22¢9 608
#43078
RESERVOIR
$36.34¢18 170
#43095
HOSE-BRAKE,RR
$101.29¢50 646
#43095A
HOSE-BRAKE
$22.80¢11 402
#49016
COVER-SEAL,BRAKE PISTON
$13.71¢6 854
#49091
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
#92022
WASHER,6.5X16X2
$3.59¢1 794
#92033A
RING-SNAP,20.5MM
$4.53¢2 266
#92033
RING SNAP,20.9X24.6X1.2
$7.12¢3 559
#92037
CLAMP
$9.04¢4 520
#92043
PIN,8X17
$3.58¢1 788
#92055
RING O,14.8X2.4
$3.38¢1 691
#92066
PLUG
$1.75¢874
#92081
SPRING,MASTER CYLINDER
$12.59¢6 296
#92152
COLLAR
$3.53¢1 765
#92153A
BOLT,6X18
$1.87¢937
#92153B
BOLT,SOCKET,8X30
$3.58¢1 788
#92153
BOLT,OIL,L=23
$4.98¢2 490
#92154A
BOLT,FLANGED,6X10
$2.36¢1 179
#92154
BOLT
$3.52¢1 759
#92161
DAMPER,10X18X6.5
$2.08¢1 041
#92173
CLAMP
$11.56¢5 779
