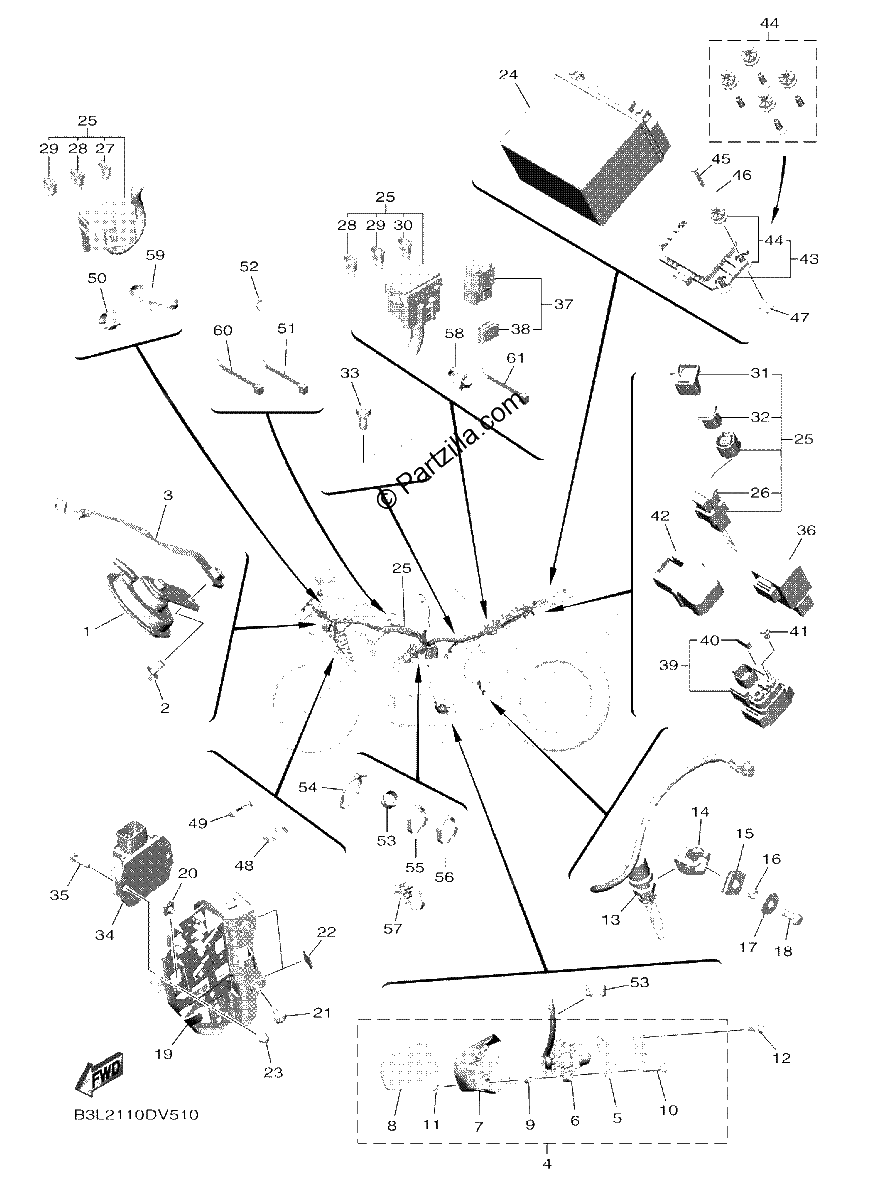

Diagrama de ELECTRICAL 2

Repuestos

#1
B67-83371-00-00
HORN
$72.69¢36 346
1
#2
95812-06012-00
BOLT, FLANGE (replaces 95802-06012-00)
No Disponible
1
#3
2CR-23377-00-00
BRACKET, HORN
$12.85¢6 423
1
#4
B3L-27406-00-00
Cover assy
$117.21¢58 604
1
#5
B3L-27961-00-00
BRACKET, SENSOR 1
$11.37¢5 687
1
#6
B3L-82566-00-00
SWITCH, SIDE STAND
$66.83¢33 413
1
#7
B3L-27453-00-00
COVER 1
$11.19¢5 595
1
#8
B3L-27498-00-00
SEAT 1
$3.52¢1 759
1
#9
90387-05025-00
COLLAR
$5.66¢2 829
1
#10
92012-05030-00
BOLT, BUTTON HEAD
$5.69¢2 846
1
#11
95602-05200-00
NUT, SELF-LOCKING
$7.51¢3 755
1
#12
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#13
2CR-82530-01-00
STOP SWITCH ASSY
$44.17¢22 086
1
#14
2CR-2144G-00-00
STAY, STOP SWITCH
$5.49¢2 743
1
#15
90480-12607-00
GROMMET
$9.36¢4 681
1
#16
90387-06023-00
COLLAR
$8.39¢4 198
1
#17
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#18
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
1
#19
B3L-2836H-00-00
BRACKET 5
$27.46¢13 731
1
#20
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#21
90111-06095-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#22
13S-21649-00-00
DAMPER
$7.23¢3 617
1
#23
663-45119-01-00
CAP, GREASE NIPPLE
$2.05¢1 023
1
#24
5TJ-82100-01-00
BATTERY YTZ7S(F) - FA
$226.96¢113 482
1
#25
B3L-82590-12-00
WIRE HARNESS ASSY
$1238.54¢619 269
1
#26
5JW-82151-10-00
FUSE (50A)
$15.65¢7 826
1
#27
5JJ-82151-80-00
FUSE (2A-BL)
$7.75¢3 875
1
#28
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#29
5JJ-82151-10-00
. FUSE (15A-BL)
$4.08¢2 041
1
#30
5JJ-82151-30-00
. FUSE (10A-BL)
$7.58¢3 789
1
#31
B3L-82155-00-00
BAND
$4.37¢2 185
1
#32
B3L-8215B-00-00
CAP
$4.66¢2 329
1
#33
91312-06012-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#34
2CR-81960-00-00
RECTIFIER REGULATOR ASSY
$164.19¢82 093
1
#35
90105-06148-00
Bolt, Flange
$6.82¢3 410
1
#36
5VK-81950-31-00
RELAY ASSY (replaces 5VK-81950-30-00)
$58.82¢29 411
1
#37
1TP-81950-00-00
RELAY ASSY (1TP-00)
$14.34¢7 170
1
#38
5EA-81952-00-00
HOLDER, RELAY
$7.38¢3 691
1
#39
2CR-81940-00-00
STARTER RELAY ASSY
$58.28¢29 141
1
#40
1AE-82151-00-00
FUSE (30A-BL)
$6.82¢3 410
1
#41
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#42
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#43
B3L-8593A-01-00
INERTIAL MEASURE, UNIT ASSY
$855.59¢427 794
1
#44
2CR-W8A8D-01-00
.. GROMMET AND COLLAR SET
$62.34¢31 171
1
#45
91312-04025-00
BOLT
$1.69¢845
1
#46
2CR-81162-00-00
WASHER, PLAIN
$1.43¢713
1
#47
90183-04039-00
NUT, SPRING
$6.46¢3 231
1
#48
1UA-82591-00-00
BAND
$4.52¢2 260
1
#49
1UA-82591-00-00
BAND
$4.52¢2 260
1
#50
90464-16003-00
CLAMP
$6.87¢3 433
1
#51
1UA-82591-00-00
BAND
$4.52¢2 260
1
#52
90465-10098-00
CLAMP
$2.55¢1 277
1
#53
90464-13227-00
Clamp
$7.24¢3 622
1
#54
90464-16061-00
BAND
$7.68¢3 841
1
#55
90464-13077-00
CLAMP
$7.30¢3 651
1
#56
90464-13077-00
CLAMP
$7.30¢3 651
1
#57
90464-45006-00
CLAMP
$7.07¢3 536
1
#58
90464-13077-00
CLAMP
$7.30¢3 651
1
#59
3MA-82591-00-00
BAND
$6.95¢3 473
1
#60
1UA-82591-00-00
BAND
$4.52¢2 260
1
#61
1UA-82591-00-00
BAND
$4.52¢2 260
