SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

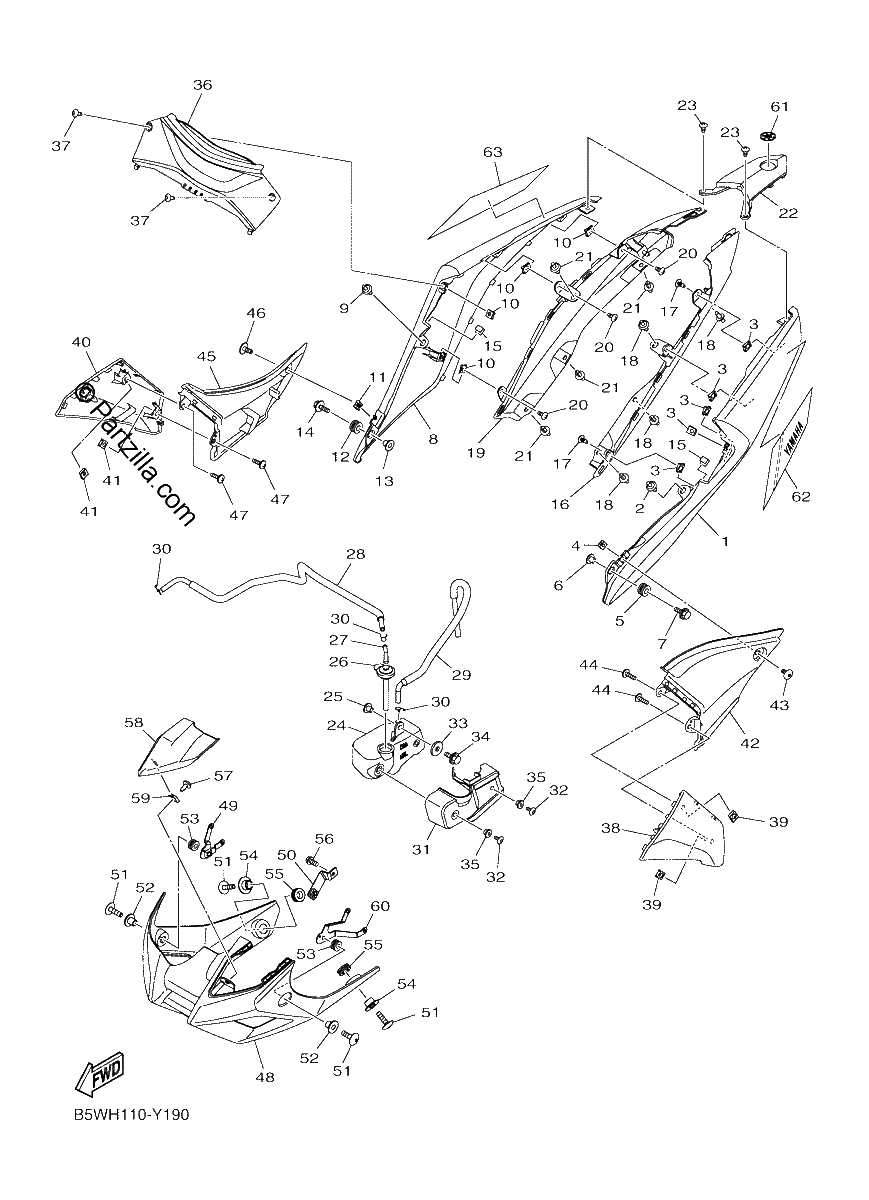

Diagrama de SIDE COVER

Repuestos

#1
1WD-F1711-00-PC
COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC,MDNM8}*
$31.69¢15 847
1
#2
90269-06816-00
RIVET
$1.58¢788
1
#3
90183-05807-00
NUT, SPRING
$1.15¢575
1
#4
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#5
90480-12808-00
GROMMET
$2.71¢1 357
1
#6
90387-06899-00
COLLAR
$2.70¢1 351
1
#7
90119-06810-00
BOLT, WITH WASHER
$3.38¢1 691
1
#8
1WD-F1721-00-PC
COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC,MDNM8}*
$31.69¢15 847
1
#9
90269-06816-00
RIVET
$1.58¢788
1
#10
90183-05807-00
NUT, SPRING
$1.15¢575
1
#11
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#12
90480-12808-00
GROMMET
$2.71¢1 357
1
#13
90387-06899-00
COLLAR
$2.70¢1 351
1
#14
90119-06810-00
BOLT, WITH WASHER
$3.38¢1 691
1
#15
31B-F8307-00-00
SEAL
$2.44¢1 219
1
#16
1WD-F171L-00-00
MOLE, SIDE COVER 1
$4.30¢2 151
1
#17
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#18
90269-06816-00
RIVET
$1.58¢788
1
#19
1WD-F171M-00-00
MOLE, SIDE COVER 2
$16.09¢8 044
1
#20
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#21
90269-06816-00
RIVET
$1.58¢788
1
#22
1WD-F171N-00-00
MOLE, SIDE COVER 3
$11.73¢5 865
1
#23
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#24
1WD-F1871-01-00
TANK, RECOVERY (replaces 1WD-F1871-00-00)
$23.01¢11 506
1
#25
90387-06857-00
COLLAR
$1.18¢592
1
#26
1WD-F1875-01-00
CAP
$3.30¢1 650
1
#27
3C1-F1828-00-00
ELBOW
$24.05¢12 023
1
#28
1WD-F1816-02-00
PIPE 1
$10.28¢5 140
1
#29
1WD-F1817-01-00
PIPE 2
$6.49¢3 243
1
#30
90467-08003-00
CLIP
$6.90¢3 450
1
#31
BS7-F172W-00-00
Cover
$18.50¢9 252
1
#32
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#33
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#34
95807-06014-00
BOLT, FLANGE
$2.44¢1 219
1
#35
90560-06244-00
SPACER
$7.30¢3 651
1
#36
1WD-F1731-00-PA
COVER, SIDE 3
$14.34¢7 170
1
#37
90160-05810-00
SCREW, ROUND TAPPING
$1.74¢868
1
#38
B9T-F171E-00-P3
COVER, SIDE 5
$20.37¢10 183
1
#39
90183-05807-00
NUT, SPRING
$1.15¢575
1
#40
B9T-F171X-00-P3
COVER, SIDE 6
$22.63¢11 316
1
#41
90183-05807-00
NUT, SPRING
$1.15¢575
1
#42
B9T-F1716-00-00
LID, SIDE COVER
$12.55¢6 273
1
#43
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#44
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#45
B9T-F1726-00-00
LID, SIDE COVER 2
$9.12¢4 560
1
#46
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#47
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#48
B6W-F8385-00-P1
COVER, UNDER
$116.43¢58 213
1
#49
B04-F833F-00-00
BRACKET 9
$5.49¢2 743
1
#50
B04-F833G-00-00
BRACKET 10
$5.08¢2 541
1
#51
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.61¢805
1
#52
90387-06899-00
COLLAR
$2.70¢1 351
1
#53
90480-12808-00
GROMMET
$2.71¢1 357
1
#54
90387-09801-00
COLLAR
$9.94¢4 968
1
#55
90480-18418-00
GROMMET
$7.58¢3 789
1
#56
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#57
97702-50012-00
SCREW, TAPPING
$3.54¢1 771
1
#58
B08-F842M-00-00
COVER 1
$18.50¢9 252
1
#59
90183-05807-00
NUT, SPRING
$1.15¢575
1
#60
B04-F833E-00-00
BRACKET 8
$7.28¢3 640
1
#61
1PA-F836B-20-00
TUNING FORK MARK
$5.85¢2 927
1
#62
B9T-F173E-50-00
.. GRAPHIC 1
$5.55¢2 777
1
#63
B9T-F173F-50-00
.. GRAPHIC 2
$4.67¢2 335
1
