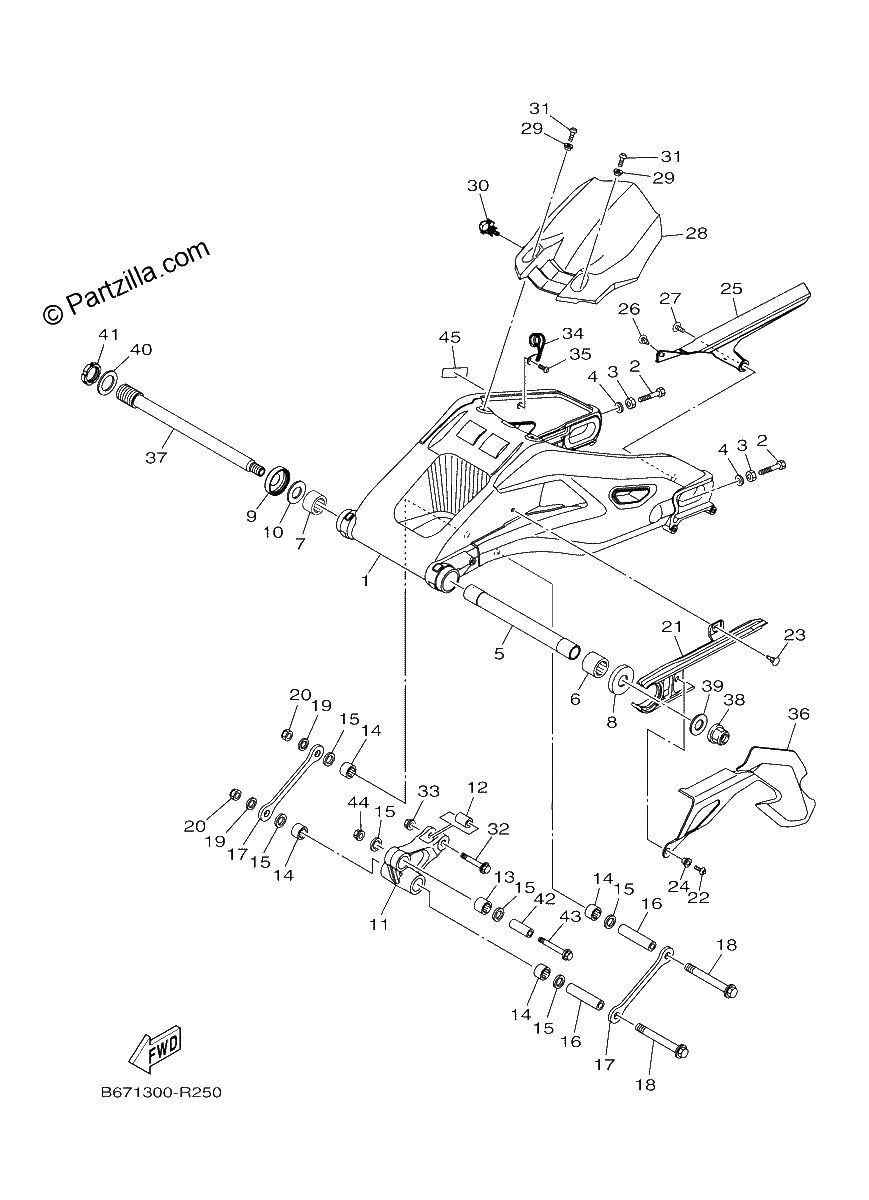

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP. *{MDNM9}*
$2886.49¢1 443 244
#2
BOLT
$3.29¢1 644
#3
NUT (6L2)
$7.44¢3 720
#4
WASHER, PLATE
$6.83¢3 415
#5
BUSH
$61.77¢30 883
#6
BEARING
$54.19¢27 094
#7
BEARING
$37.40¢18 699
#8
COVER, THRUST 1
$14.54¢7 268
#9
COVER, THRUST 1
$28.78¢14 392
#10
WASHER, PLATE
$8.33¢4 163
#11
ARM, RELAY
$118.83¢59 415
#12
COLLAR
$19.48¢9 741
#13
BEARING
$36.70¢18 348
#14
BEARING
$38.04¢19 021
#15
OIL SEAL
$7.38¢3 691
#16
COLLAR
$21.50¢10 753
#17
ARM 1
$25.02¢12 512
#18
Bolt, Flange
$9.99¢4 997
#19
WASHER, plate
$1.35¢673
#20
NUT, SELF-LOCKING
$7.59¢3 795
#21
SEAL, GUARD (replaces 2CR-22151-00-00)
$41.84¢20 918
#22
BOLT, BUTTON HEAD
$6.82¢3 410
#23
RIVET
$3.68¢1 840
#24
COLLAR
$18.85¢9 424
#25
CASE, CHAIN
$28.66¢14 329
#26
RIVET
$3.68¢1 840
#27
BOLT,HEX. SOCKET BUTTON
$6.88¢3 439
#28
REAR FENDER COMP.
$30.68¢15 341
#29
SPACER
$7.30¢3 651
#30
Clamp
$5.93¢2 967
#31
BOLT, BUTTON HEAD
$2.90¢1 449
#32
BOLT, FLANGE
$21.50¢10 753
#33
NUT, U FLANGE
$2.51¢1 254
#34
HOLDER, BRAKE HOSE 5
$30.89¢15 444
#35
BOLT, BUTTON HEAD
$6.82¢3 410
#36
COVER ASSY 1
$34.37¢17 187
#37
SHAFT, PIVOT
$95.70¢47 851
#38
NUT, SELF-LOCKING
$31.75¢15 876
#39
WASHER, PLATE
$10.28¢5 140
#40
WASHER, PLATE
$10.87¢5 434
#41
NUT
$18.85¢9 424
#42
COLLAR
$19.14¢9 568
#43
BOLT
$15.96¢7 981
#44
NUT, U FLANGE
$2.51¢1 254
#45
LABEL, TIRE
$1.79¢897
