REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

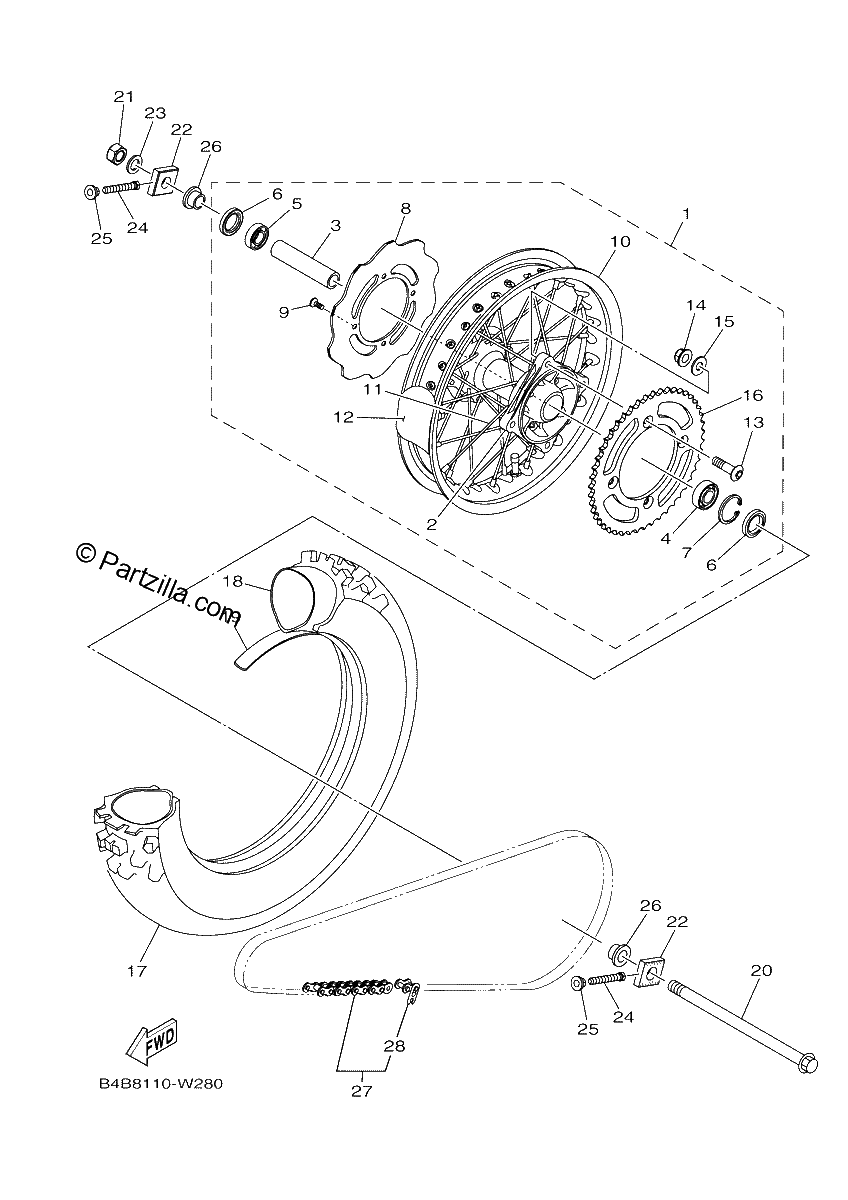

Diagrama de REAR WHEEL

Repuestos

#1
B0G-25302-00-00
REAR WHEEL SUB-ASSY
$505.99¢252 994
1
#2
4ES-25311-00-00
HUB, REAR
$339.63¢169 815
1
#3
4ES-25383-00-00
COLLAR, WHEEL
$23.99¢11 994
1
#4
93306-00203-00
. BEARING
$36.59¢18 297
1
#5
93306-20203-00
BEARING
$25.44¢12 719
1
#6
93102-20009-00
OIL SEAL
$9.99¢4 997
1
#7
99009-35500-00
CIRCLIP
$6.75¢3 375
1
#8
B4B-2582W-01-00
DISK, REAR BRAKE 2
$100.83¢50 416
1
#9
90151-06051-00
SCREW, COUNTERSUNK
$2.92¢1 461
1
#10
94418-16006-00
RIM (185-16)
$412.08¢206 040
1
#11
4LB-25304-00-00
SPOKE SET, REAR
$83.74¢41 871
1
#12
1T2-25394-00-00
SPACER, BEAD
$46.48¢23 242
1
#13
90152-08001-00
SCREW, COUNTERSUNK
$3.28¢1 639
1
#14
90185-08008-00
NUT, SELF-LOCKING
$6.59¢3 295
1
#15
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#16
5PA-25453-00-00
SPROCKET, DRIVEN (53T)
$80.48¢40 239
1
#16
5PA-25451-00-00
SPROCKET, DRIVEN (51T)
$80.78¢40 388
1
#16
5PA-25452-00-00
SPROCKET, DRIVEN (52T)
$108.40¢54 200
1
#17
94109-16024-00
TIRE (90/100-16 52M MX3S)
$103.49¢51 744
1
#18
94209-16291-00
TUBE (90/100-16M/C TR4)
$32.06¢16 031
1
#19
94307-16171-00
BAND, RIM (18-16)
$19.93¢9 965
1
#20
B4B-25381-00-00
AXLE, WHEEL
$43.50¢21 752
1
#21
90185-14009-00
NUT, SELF-LOCKING
$9.12¢4 560
1
#22
BR8-25389-00-00
PULLER, CHAIN 2
$21.72¢10 862
1
#23
90201-14411-00
WASHER,PLATE
$5.86¢2 932
1
#24
90101-08006-00
bolt
$7.37¢3 686
1
#25
90179-08029-00
Nut
$13.87¢6 935
1
#26
BR8-25383-00-00
COLLAR, WHEEL
$24.58¢12 288
1
#27
9Y582-43123-00
CHAIN (DID 428DS 124LL)
$144.60¢72 300
1
#28
94682-43001-00
JOINT, CHAIN (DID 428DS-RJ)
$5.44¢2 720
1
