FRONT FORK

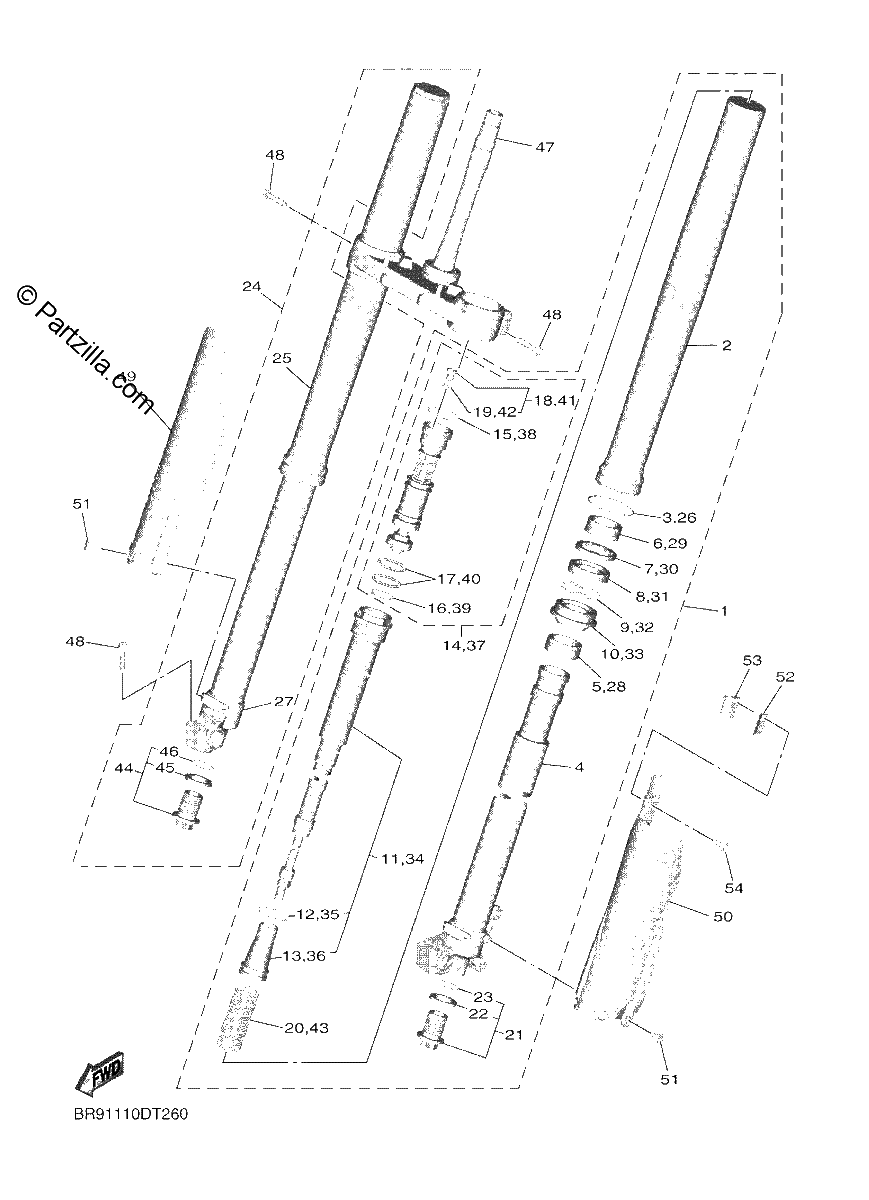

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1566.24¢783 119
#2
TUBE, OUTER
$893.74¢446 869
#3
RING, SNAP
$4.97¢2 488
#4
INNER TUBE COMP2
$473.94¢236 969
#5
PISTON, FRONT FORK
$24.64¢12 319
#6
METAL, SLIDE 1
$25.02¢12 513
#7
WASHER, OIL SEAL
$12.61¢6 306
#8
Oil Seal
$23.64¢11 819
#9
RING, SNAP
$7.65¢3 825
#10
SEAL, DUST
$22.95¢11 475
#11
. CYLINDER COMP, FRONT FORK
$828.74¢414 369
#12
O-RING
$3.81¢1 906
#13
SEAT, SPRING UPPER
$60.51¢30 256
#14
. VALVE COMP
$421.90¢210 950
#15
O-RING
$8.28¢4 138
#16
O-RING
$7.08¢3 538
#17
O-RING
$5.21¢2 606
#18
AIR VALVE COMP
$23.89¢11 944
#19
O-RING
$3.26¢1 631
#20
SPRING, FRONT FORK (K=4.7)
$145.06¢72 531
#21
BOLT, CAP
$82.40¢41 200
#22
GASKET
$11.34¢5 669
#23
GASKET
$4.00¢2 000
#24
FRONT FORK ASSY (R.H)
$1573.74¢786 869
#25
TUBE, OUTER
$893.74¢446 869
#26
RING, SNAP
$4.97¢2 488
#27
INNER TUBE COMP1
$473.94¢236 969
#28
PISTON, FRONT FORK
$24.64¢12 319
#29
METAL, SLIDE 1
$25.02¢12 513
#30
WASHER, OIL SEAL
$12.61¢6 306
#31
Oil Seal
$23.64¢11 819
#32
RING, SNAP
$7.65¢3 825
#33
SEAL, DUST
$22.95¢11 475
#34
. CYLINDER COMP, FRONT FORK
$828.74¢414 369
#35
O-RING
$3.81¢1 906
#36
SEAT, SPRING UPPER
$60.51¢30 256
#37
. VALVE COMP
$421.90¢210 950
#38
O-RING
$8.28¢4 138
#39
O-RING
$7.08¢3 538
#40
O-RING
$5.21¢2 606
#41
AIR VALVE COMP
$23.89¢11 944
#42
O-RING
$3.26¢1 631
#43
SPRING, FRONT FORK (K=4.7)
$145.06¢72 531
#44
BOLT, CAP
$82.40¢41 200
#45
GASKET
$11.34¢5 669
#46
GASKET
$4.00¢2 000
#47
UNDER BRACKET COMP.
$589.99¢294 994
#48
BOLT, FLANGE DEEP RECESS
$2.94¢1 469
#49
PROTECTOR 2
$16.54¢8 269
#50
PROTECTOR 1
$16.54¢8 269
#51
BOLT
$3.93¢1 963
#52
CLAMP
$19.71¢9 856
#53
CLAMP
$26.99¢13 494
#54
BOLT, FLANGE
$5.05¢2 525
