CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

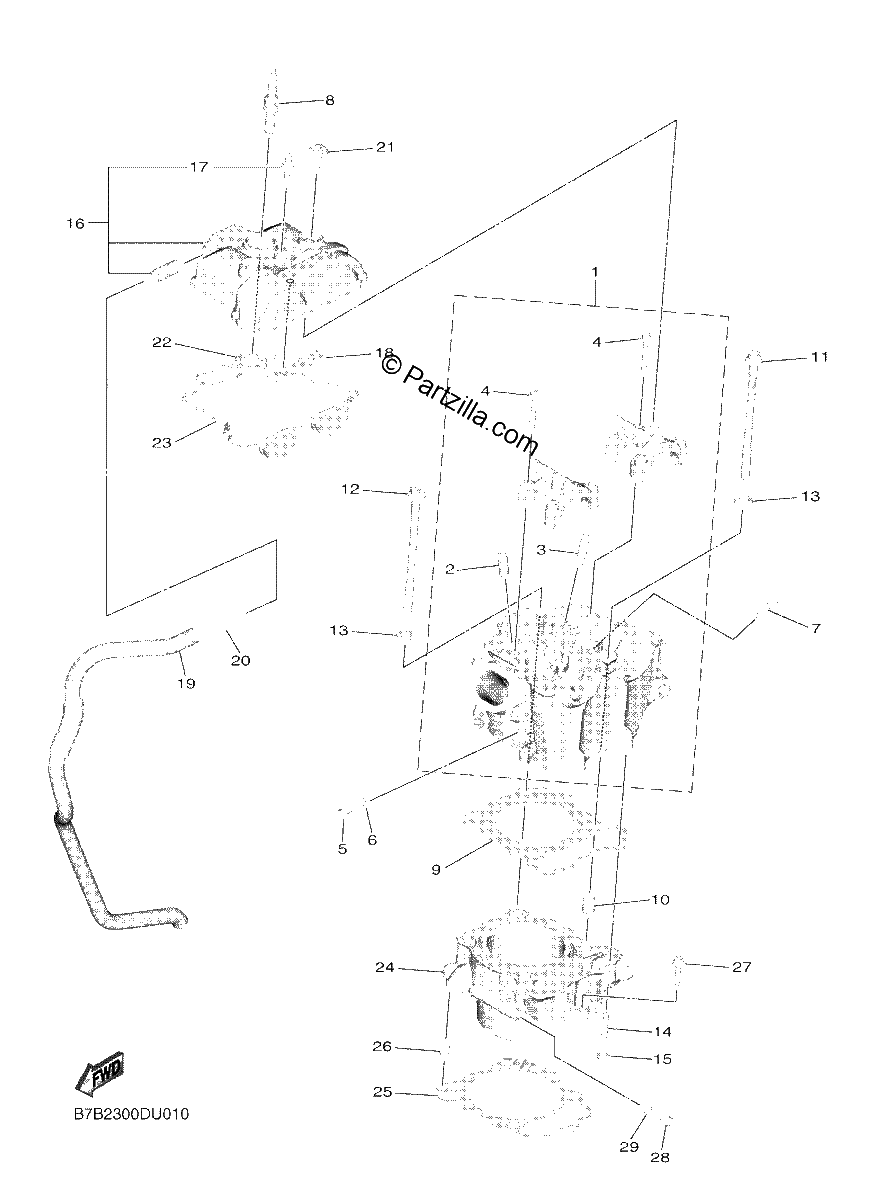

Diagrama de CYLINDER

Repuestos

#1
B7B-11101-19-00
CYLINDER HEAD ASSY
$1039.99¢519 994
1
#2
B7B-11133-10-00
. GUIDE, VALVE 1
$232.64¢116 319
1
#3
3D7-11133-10-00
GUIDE, VALVE 1
$66.19¢33 094
1
#4
90105-06027-00
BOLT, FLANGE
$7.67¢3 838
1
#5
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.91¢456
1
#6
90430-06014-00
GASKET
$8.25¢4 125
1
#7
90116-06037-00
BOLT, stud
$4.03¢2 013
1
#8
LMA-R9EJ0-00-00
LMAR9EJ NGK SPLUG
$15.19¢7 594
1
#9
B7B-11181-00-00
GASKET, CYLINDER HEAD 1
$33.09¢16 544
1
#10
93612-16254-00
PIN,DOWEL
$5.19¢2 594
1
#11
90105-09004-00
Bolt, Flange
$14.65¢7 325
1
#12
90105-09002-00
BOLT, FLANGE
$16.29¢8 144
1
#13
90201-096J9-00
WASHER,PLATE
$3.34¢1 669
1
#14
90116-06037-00
BOLT, stud
$4.03¢2 013
1
#15
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#16
B7B-11190-00-00
COVER, CYLINDER HEAD 1
$305.32¢152 663
1
#17
90116-06048-00
. BOLT, STUD
$5.51¢2 756
1
#18
5BE-12241-01-00
GUIDE, STOPPER 2
$30.44¢15 219
1
#19
1SM-11166-00-00
PIPE, BREATHER 1
$30.23¢15 113
1
#20
90467-140A4-00
CLIP
$9.91¢4 956
1
#21
5UM-1119E-00-00
BOLT, COVER HEAD
$13.06¢6 531
1
#22
1SM-11194-00-00
GASKET, HEAD COVER 2
$17.01¢8 506
1
#23
1SM-11193-00-00
GASKET, HEAD COVER 1
$32.14¢16 069
1
#24
B7B-11311-00-00
CYLINDER 1
$511.64¢255 819
1
#25
B7B-11351-00-00
Gasket, Cylinder
$14.65¢7 325
1
#26
99530-10116-00
PIN, DOWEL
$4.00¢2 000
1
#27
90110-06380-00
BOLT, HEXAGON SOCKET HEAD
$7.52¢3 762
1
#28
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.91¢456
1
#29
90430-06014-00
GASKET
$8.25¢4 125
1
