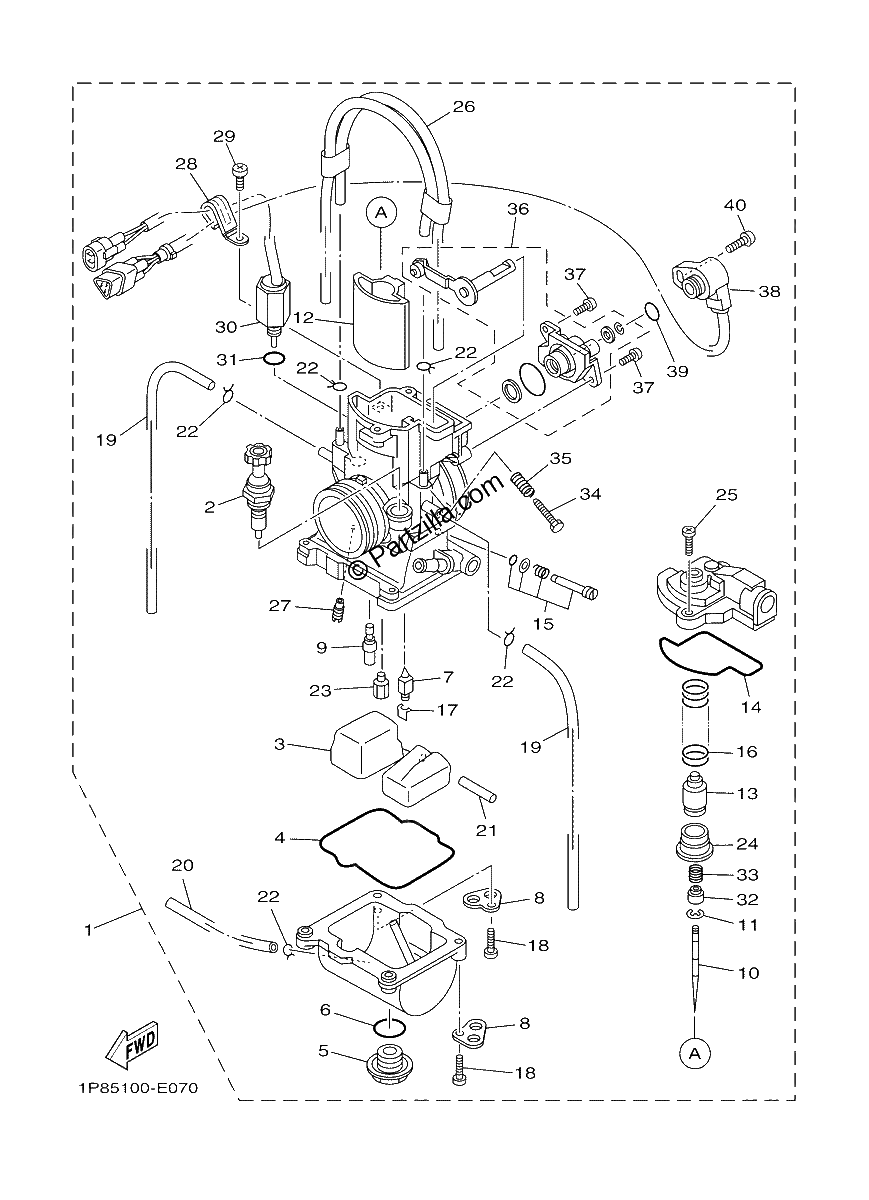

CARBURETOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CARBURETOR ASSY 1
$911.24¢455 619
#2
PLUNGER, STARTER
$41.64¢20 819
#3
FLOAT
$69.97¢34 988
#4
GASKET, FLOAT CHAMBER
$26.06¢13 031
#5
PLUG, SCREW
$34.04¢17 019
#6
O-RING
$7.03¢3 513
#7
VALVE, NEEDLE
$45.39¢22 694
#8
PLATE
$8.88¢4 438
#9
JET, SLOW (#62) | AP
$19.52¢9 763
#9
JET, SLOW (#55) | AP
$10.25¢5 125
#9
JET, SLOW (#60) | AP
$19.52¢9 763
#9
JET, SLOW (#58) | AP
$18.90¢9 450
#9
JET, SLOW (#52) | AP
$9.91¢4 956
#9
JET, SLOW (#38) | AP
$18.38¢9 188
#9
JET, SLOW (#40) | AP
$18.90¢9 450
#9
JET, SLOW (#42) | AP
$9.91¢4 956
#9
JET, SLOW (#45) | AP
$9.91¢4 956
#9
JET, SLOW (#48) | AP
$9.91¢4 956
#9
JET, SLOW (#50) | STD
$9.91¢4 956
#10
NEEDLE (N3CK) | AP
$30.47¢15 237
#10
NEEDLE (N3CH) | AP
$29.96¢14 981
#10
NEEDLE (N3CJ) | AP
$35.29¢17 644
#10
NEEDLE (NYHW)
$26.10¢13 050
#10
NEEDLE (N3CW) | AP
$30.84¢15 419
#10
NEEDLE (N3EG) | AP
$30.47¢15 237
#10
NEEDLE (N3EH) | AP
$31.29¢15 644
#10
NEEDLE (N3EJ) | AP
$28.90¢14 450
#10
NEEDLE (N3EW) | STD
$28.82¢14 413
#10
NEEDLE (N8RH) | AP
$19.71¢9 856
#10
NEEDLE (N8RJ) | AP
$30.47¢15 237
#10
NEEDLE (N8RW) | AP
$35.29¢17 644
#10
NEEDLE (NYHG)
$27.69¢13 844
#10
NEEDLE (NYHH)
$32.69¢16 344
#10
NEEDLE (NYHJ)
$25.89¢12 944
#10
NEEDLE (NYHK)
$29.98¢14 988
#10
NEEDLE (N3EK) | AP
$31.14¢15 569
#10
NEEDLE (N3CG) | AP
$31.10¢15 550
#11
CLIP
$7.65¢3 825
#12
VALVE ASSY
$228.39¢114 194
#13
HOLDER
$46.22¢23 112
#14
GASKET
$17.73¢8 863
#15
PILOT SCREW SET
$20.20¢10 100
#16
SPRING, THROTTLE VALVE
$27.44¢13 719
#17
CLIP
$16.55¢8 275
#18
SCREW, PAN HEAD
$3.33¢1 663
#19
PIPE
$10.54¢5 269
#20
PIPE, OVER FLOW 1
$11.55¢5 775
#21
PIN, FLOAT ARM
$6.06¢3 031
#22
Clip
$7.65¢3 825
#23
JET, MAIN (#182) | AP
$12.00¢6 000
#23
JET, MAIN (#188) | AP
$12.42¢6 212
#23
JET, MAIN (#165) | AP
$12.00¢6 000
#23
JET, MAIN (#180) | AP
$12.00¢6 000
#23
JET, MAIN (#162) | AP
$11.83¢5 913
#23
JET, MAIN (#190) | AP
$12.09¢6 044
#23
JET, MAIN (#178) | STD
$12.00¢6 000
#23
JET, MAIN (#168) | AP
$12.00¢6 000
#23
JET, MAIN (#185) | AP
$11.84¢5 919
#23
JET, MAIN (#175) | AP
$12.00¢6 000
#23
JET, MAIN (#170) | AP
$12.31¢6 156
#23
JET, MAIN (#172) | AP
$12.00¢6 000
#24
RING
$24.13¢12 063
#25
SCREW, PAN HEAD
No Disponible
#26
HOSE
$46.33¢23 163
#27
JET (#60) | AP
$15.59¢7 794
#27
JET (#65) | AP
$17.40¢8 700
#27
JET (#40) | AP
$16.83¢8 413
#27
JET (#50) | STD
$16.83¢8 413
#27
JET (#70) | AP
$17.40¢8 700
#27
JET (#55) | AP
$17.40¢8 700
#28
. PLATE
$8.15¢4 075
#29
SCREW, PAN HEAD
$3.89¢1 944
#30
SOLENOID VALVE
$291.25¢145 625
#31
O-RING
$5.07¢2 537
#32
COLLAR
$41.35¢20 675
#33
SPRING
$7.91¢3 956
#34
SCREW, THROTTLE
$18.85¢9 425
#35
SPRING, THROTTLE STOP
$8.50¢4 250
#36
LEVER COMP. 1
$122.52¢61 262
#37
SCREW
$5.81¢2 906
#38
. THROTTLE SENSOR ASSY
$239.94¢119 969
#39
O-RING
$8.18¢4 088
#40
SCREW
$6.36¢3 181
