CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

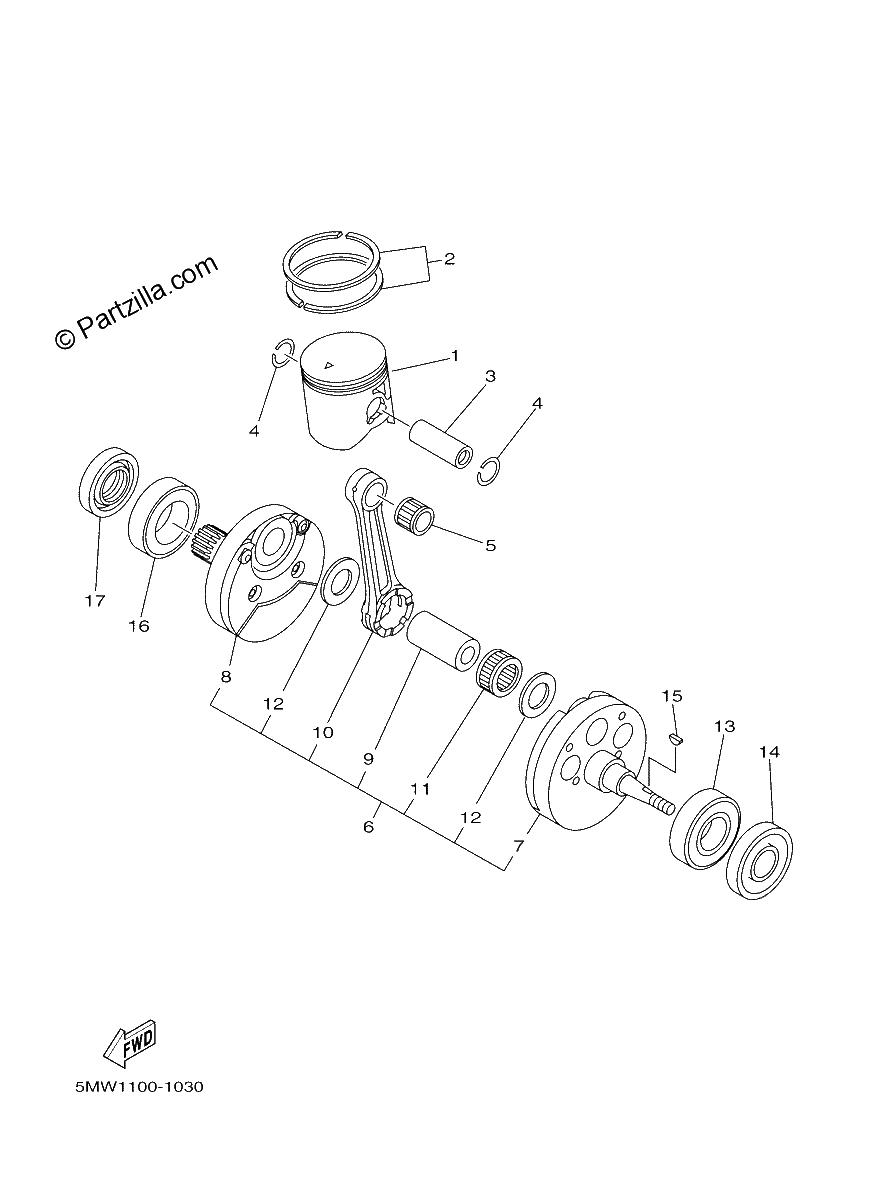

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
1P8-11631-00-A0
PISTON (STD) | UR RED
$136.25¢68 125
1
#1
1P8-11631-00-B0
PISTON (STD) | UR ORANGE
$125.11¢62 556
1
#1
1P8-11631-00-C0
PISTON (STD) | UR GREEN
$136.25¢68 125
1
#1
1P8-11631-00-D0
PISTON (STD) | UR PURPLE
$136.25¢68 125
1
#2
5CU-11603-11-00
PISTON RING SET (STD)
$54.00¢27 000
1
#3
5UP-11633-00-00
PIN, PISTON
$36.88¢18 438
1
#4
93450-19052-00
CIRCLIP
$6.06¢3 031
1
#5
93310-218A6-00
BEARING
$40.25¢20 125
1
#6
5UP-11400-10-00
CRANKSHAFT ASSY
$683.91¢341 956
1
#7
5UP-11410-10-00
CRANKSHAFT
$272.36¢136 181
1
#8
5MW-11420-10-00
CRANKSHAFT
$361.59¢180 794
1
#9
5CU-11681-00-00
PIN, CRANK 1
$76.51¢38 256
1
#10
5MW-11651-00-00
ROD, CONNECTING
$201.08¢100 538
1
#11
93310-52406-00
BEARING
$122.91¢61 456
1
#12
90209-24327-00
WASHER
$46.33¢23 163
1
#13
93306-37808-00
BEARING
$78.49¢39 244
1
#14
93102-20485-00
OIL SEAL
$22.69¢11 344
1
#15
90280-03045-00
KEY, WOODRUFF
$6.88¢3 438
1
#16
93306-37808-00
BEARING
$78.49¢39 244
1
#17
93102-28004-00
OIL SEAL
$26.29¢13 144
1
