WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

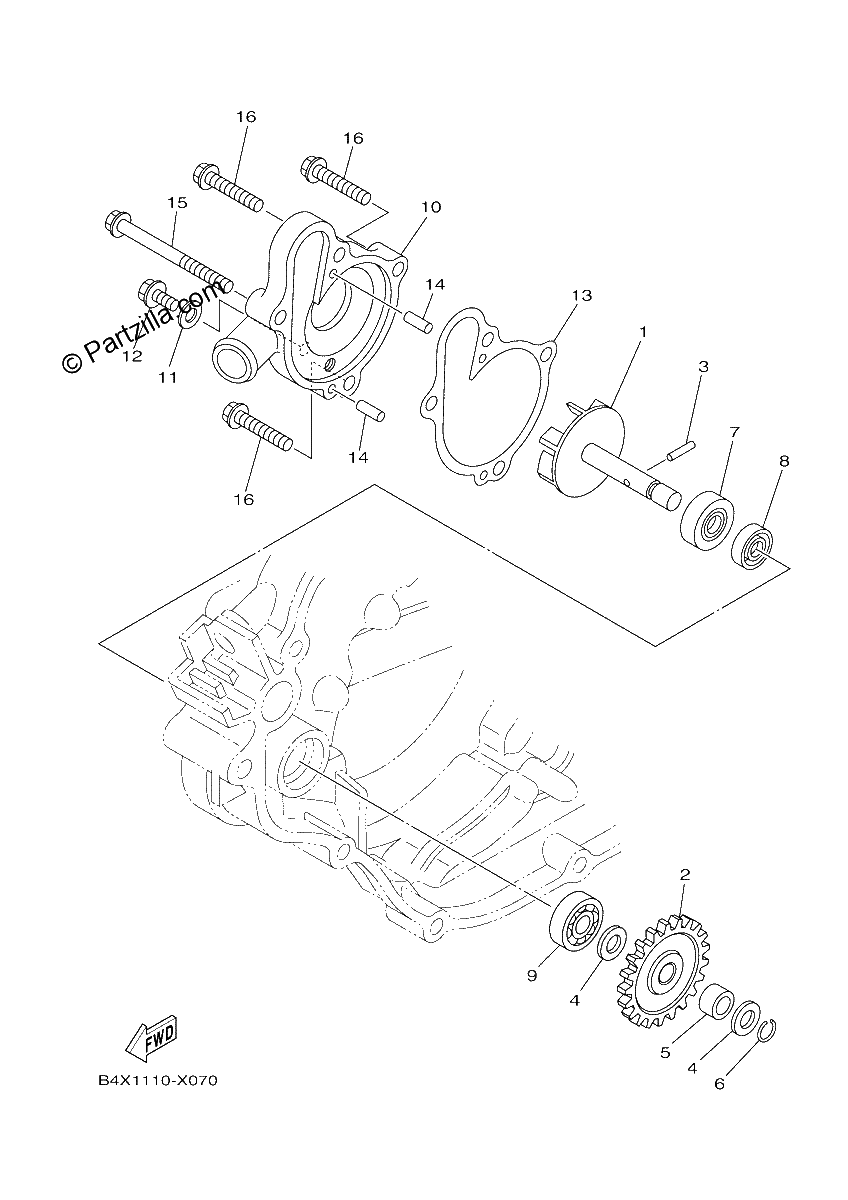

Diagrama de WATER PUMP

Repuestos

#1
1C3-12450-01-00
IMPELLER SHAFT ASSY (replaces 1C3-12450-00-00)
$82.49¢41 244
1
#2
1C3-12453-10-00
Gear
$87.73¢43 863
1
#3
93603-12007-00
PIN, DOWEL
$1.96¢981
1
#4
90201-08512-00
WASHER,PLATE
$7.34¢3 669
1
#5
90387-08032-00
Collar
$8.89¢4 444
1
#6
93440-07182-00
CIRCLIP
$3.74¢1 869
1
#7
93102-08004-00
Oil Seal
$9.91¢4 956
1
#8
93102-08307-00
OIL SEAL
$4.88¢2 438
1
#9
93300-60814-00
BEARING (1LX) (replaces 93300-60801-00)
$24.89¢12 444
1
#9
93300-60801-00
BEARING
$24.89¢12 444
1
#10
1C3-12422-00-00
Cover, Housing
$65.38¢32 688
1
#11
90430-06014-00
GASKET
$8.25¢4 125
1
#12
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#13
1C3-12428-00-00
GASKET, HOUSING COVE
$8.03¢4 013
1
#14
93604-10011-00
PIN, DOWEL
$6.25¢3 125
1
#15
95E32-06065-00
BOLT, FLANGE DEEP RECESS
$1.02¢513
1
#16
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
