OIL COOLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

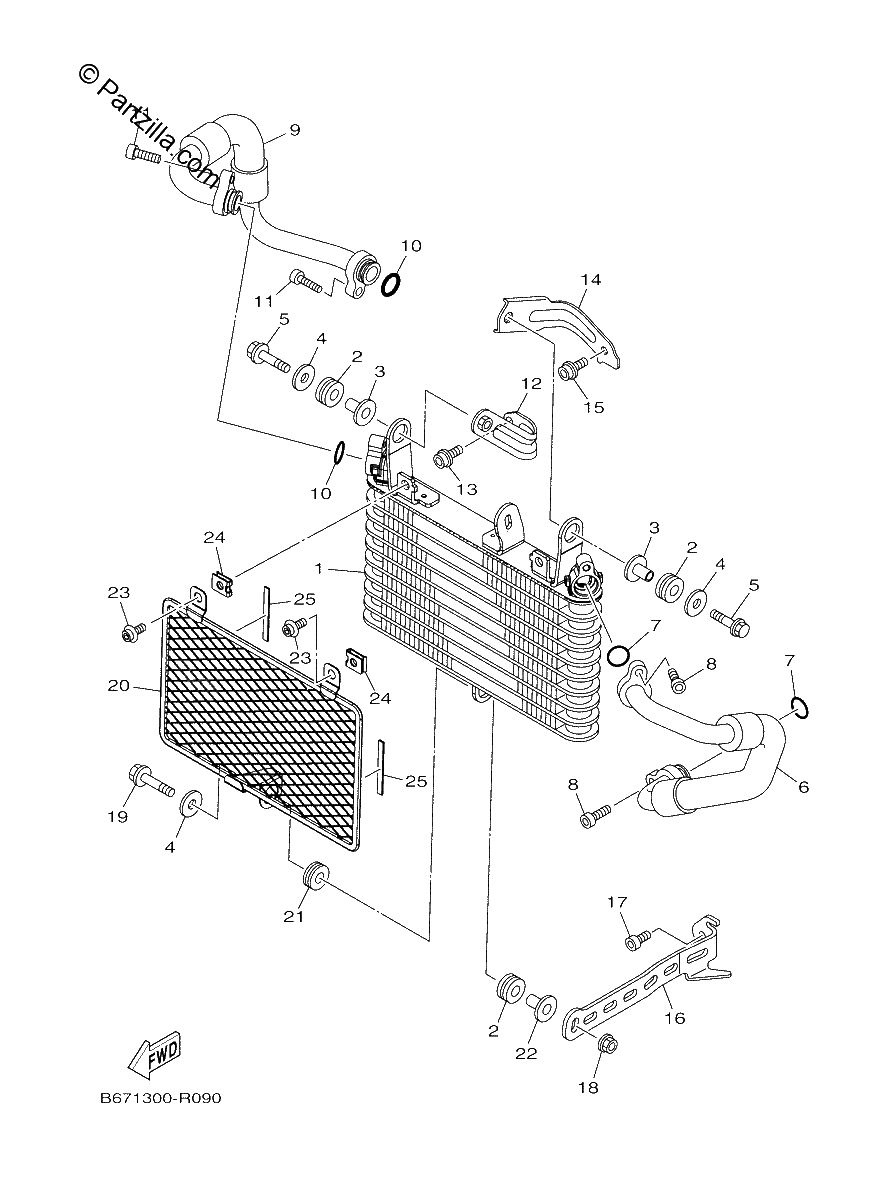

Diagrama de OIL COOLER

Repuestos

#1
B67-13470-00-00
OIL COOLER ASSY
$351.51¢175 755
1
#2
90480-15363-00
GROMMET
$6.75¢3 375
1
#3
90387-0614M-00
COLLAR
$9.04¢4 520
1
#4
90201-06071-00
WASHER, PLATE
$4.88¢2 438
1
#5
90110-06346-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#6
2CR-13464-00-00
HOSE, OIL 1
$207.94¢103 971
1
#7
93210-13657-00
O-RING
$6.43¢3 214
1
#8
90110-06211-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#9
2CR-13465-00-00
HOSE, OIL 2
$237.72¢118 858
1
#10
93210-13657-00
O-RING
$6.43¢3 214
1
#11
90110-06211-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#12
2CR-13151-00-00
STAY
$15.09¢7 544
1
#13
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$2.91¢1 455
1
#14
2CR-13152-00-00
STAY 2
$15.09¢7 544
1
#15
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$2.91¢1 455
1
#16
B5Y-13782-00-00
STAY
$22.65¢11 327
1
#17
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$2.91¢1 455
1
#18
95607-06200-00
NUT, U FLANGE
$11.60¢5 802
1
#19
95827-06040-00
BOLT, FLANGE
$4.98¢2 490
1
#20
B67-13463-00-00
COVER, OIL COOLER
$74.30¢37 151
1
#21
27D-11328-00-00
GROMMET, ANODE
$4.97¢2 484
1
#22
90387-06098-00
COLLAR
$7.72¢3 858
1
#23
90110-06400-00
BOLT, HEXAGON SOCKET HEAD (replaces 90110-06399-00)
$1.71¢857
1
#24
5SL-12671-00-00
NUT 1
$5.69¢2 846
1
#25
2CR-13381-00-00
DAMPER
$2.60¢1 299
1
