SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

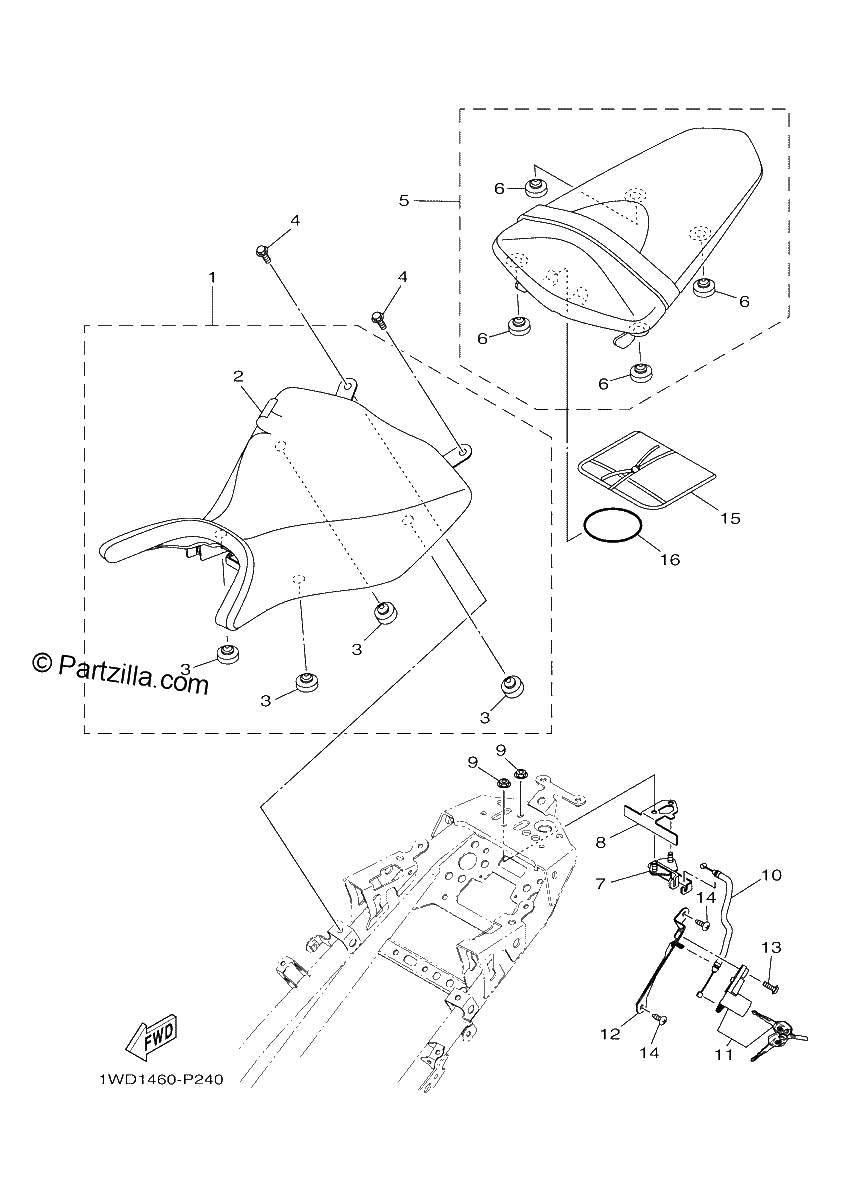

Diagrama de SEAT

Repuestos

#1
1WD-F4710-03-00
SINGLE SEAT ASSY
$52.92¢26 462
1
#2
1WD-F4711-01-00
. COVER, SINGLE SEAT
$11.78¢5 888
1
#3
5BP-F4741-00-00
PAD, SEAT
$2.71¢1 357
1
#4
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#5
1WD-F4750-01-00
TANDEM SEAT ASSY
$66.80¢33 402
1
#6
3C1-F4741-00-00
PAD, SEAT
$1.31¢655
1
#7
1WD-F4780-00-00
SEAT LOCK ASSY
$22.48¢11 241
1
#8
1WD-F4792-00-00
PLATE
$18.50¢9 252
1
#9
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#10
1WD-F478E-00-00
CABLE, SEAT LOCK
$7.28¢3 640
1
#11
1WD-WF479-00-00
ROTOR SUB ASSY WITH KEY
$72.76¢36 380
1
#12
1WD-F117K-00-00
STAY, LOCK
$4.60¢2 300
1
#13
90159-06054-00
SCREW, WITH WASHER
$1.18¢592
1
#14
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#15
B9T-F8100-00-00
TOOL KIT
$20.25¢10 126
1
#16
5TL-H2131-00-00
BAND, BATTERY
$2.77¢1 386
1
