CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

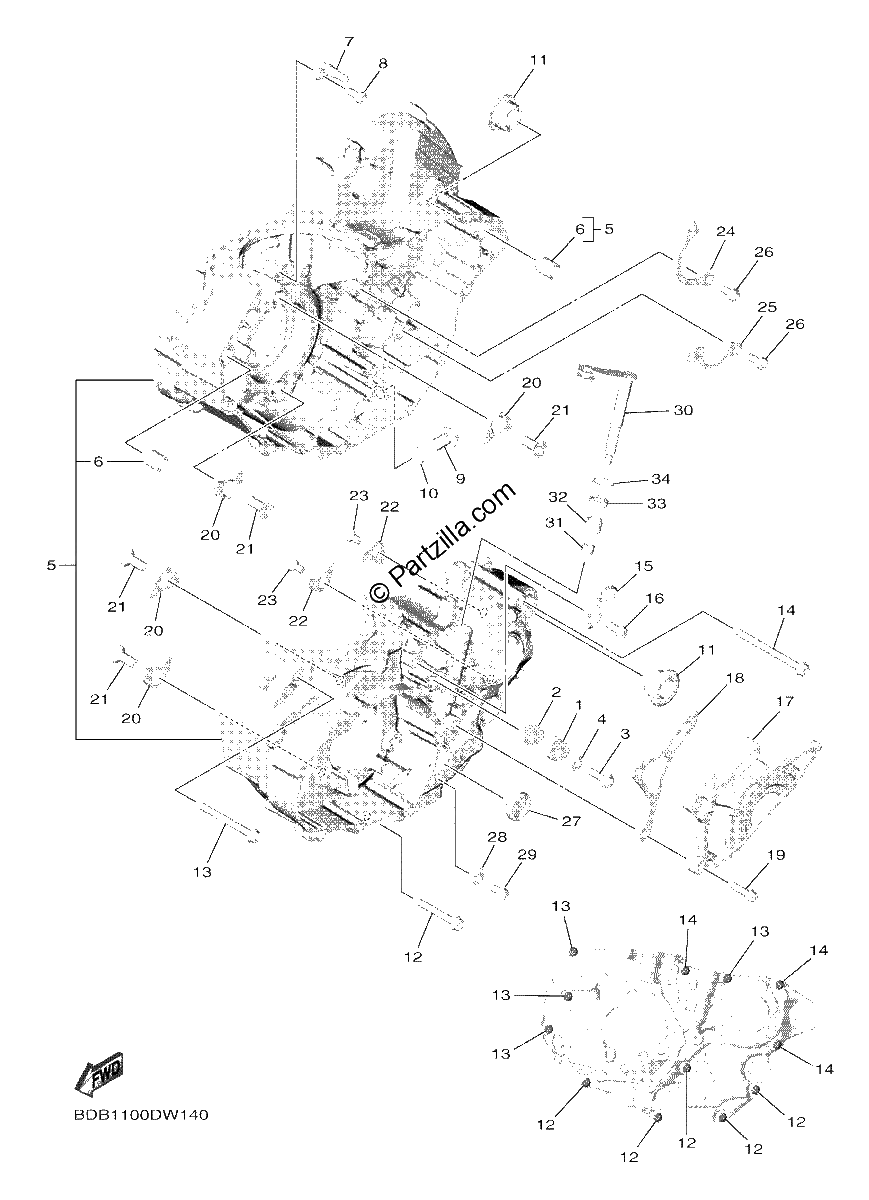

Diagrama de CRANKCASE

Repuestos

#1
BR9-13371-00-00
PLATE (replaces 1SL-13371-00-00)
$11.85¢5 923
1
#2
1SL-13475-00-00
Gasket
$13.03¢6 515
1
#3
90105-06203-00
BOLT, FLANGE
$1.98¢989
1
#4
90430-06166-00
GASKET
$3.78¢1 892
1
#5
BR9-15100-19-00
CRANKCASE ASSY
$1619.19¢809 594
1
#6
99530-14016-00
PIN, DOWEL
$3.51¢1 754
1
#7
BR9-15155-00-00
NOZZLE 3
$36.25¢18 124
1
#8
90110-06182-00
BOLT
$6.75¢3 375
1
#9
95E32-10016-00
BOLT, FLANGE DEEP RECESS
$1.45¢724
1
#10
90430-10188-00
Gasket
$6.77¢3 387
1
#11
90387-17018-00
Collar
$20.73¢10 367
1
#12
90110-06391-00
BOLT, HEXAGON SOCKET HEAD
$1.94¢972
1
#13
90110-06363-00
BOLT, HEXAGON SOCKET HEAD
$2.75¢1 374
1
#14
90110-06392-00
BOLT, HEXAGON SOCKET HEAD
$3.44¢1 719
1
#15
BR9-15441-00-00
HOLDER, CLUTCH CABLE
$14.79¢7 394
1
#16
90105-06099-00
BOLT, FLANGE
$6.11¢3 053
1
#17
1SL-15421-00-00
COVER, CRANKCASE 2
$15.65¢7 826
1
#18
1SL-17466-00-00
Guide, Chain
$16.08¢8 038
1
#19
90105-06189-00
Bolt, Flange
$6.75¢3 375
1
#20
18P-15383-00-00
PLATE, BEARING COVER
$7.38¢3 691
1
#21
90151-08007-00
SCREW, COUNTERSUNK
$2.02¢1 012
1
#22
4JT-15381-01-00
PLATE, BEARING COV
$11.53¢5 767
1
#23
90151-06053-00
SCREW
$6.99¢3 496
1
#24
BR9-15388-00-00
PLATE, BEARING COVER
$5.20¢2 599
1
#25
1SL-18562-00-00
PLATE, STOPPER 2
$6.50¢3 249
1
#26
90110-06182-00
BOLT
$6.75¢3 375
1
#27
3Y1-15361-00-00
GAUGE,LEVEL
$27.95¢13 973
1
#28
5XC-15118-00-00
HOLDER
$4.52¢2 260
1
#29
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.84¢420
1
#30
BR9-16381-00-00
PUSH LEVER COMP.
$95.83¢47 915
1
#31
93317-106B4-00
BEARING
$6.92¢3 461
1
#32
93317-11096-00
BEARING
$21.90¢10 948
1
#33
93102-10008-00
Oil Seal
$5.09¢2 547
1
#34
99009-18500-00
Circlip
$0.63¢316
1
