FRAME

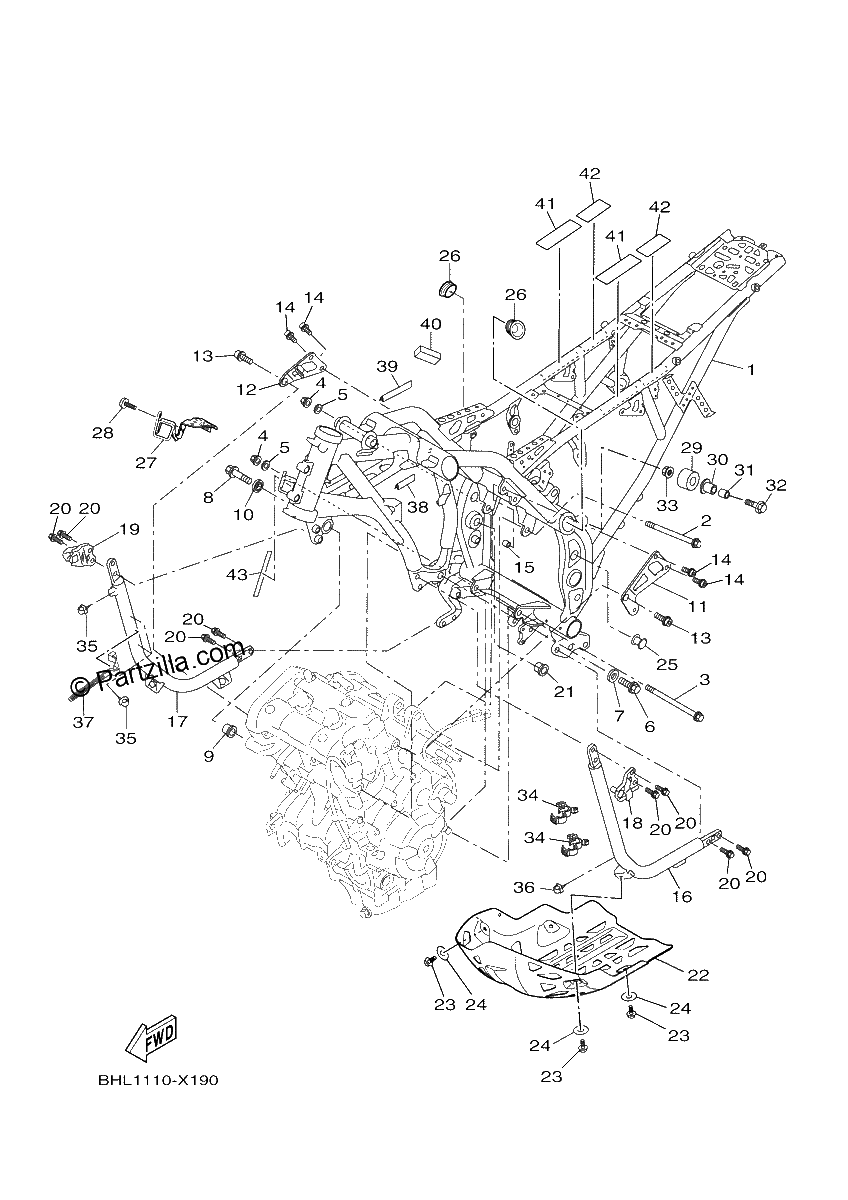

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$3082.49¢1 541 244
#2
Bolt, Flange
$6.84¢3 419
#3
BOLT, FLANGE
$16.18¢8 088
#4
NUT
$10.46¢5 231
#5
WASHER, plate
$4.25¢2 125
#6
BOLT, FLANGE
$14.14¢7 069
#7
WASHER, PLATE
$3.61¢1 806
#8
BOLT, FLANGE
$6.50¢3 250
#9
BOLT, ENGINE ADJUSTING
$60.56¢30 281
#10
COLLAR
$29.86¢14 931
#11
STAY, ENGINE 1
$24.59¢12 294
#12
STAY, ENGINE 2
$43.43¢21 713
#13
BOLT, HEXAGON SOCKET
$26.90¢13 450
#14
BOLT, HEXAGON SOCKET HEAD
$3.47¢1 737
#15
HOSE
$2.65¢1 325
#16
SIDE MEMBER SUB-ASSY 1
$207.71¢103 856
#17
SIDE MEMBER SUB-ASSY 2
$191.80¢95 900
#18
BRACKET, RADIATOR 2
$44.51¢22 256
#19
BRACKET, RADIATOR 3
$41.74¢20 869
#20
BOLT, FLANGE
$3.23¢1 613
#21
NUT
$30.92¢15 462
#22
PROTECTOR, ENGINE
$715.76¢357 881
#23
Bolt, Flange
$3.17¢1 588
#24
WASHER, PLATE
$5.47¢2 738
#25
PLUG
$7.97¢3 988
#26
CAP
$8.06¢4 031
#27
GUIDE, CABLE
$33.61¢16 806
#28
BOLT,HEX. SOCKET BUTTON
$2.31¢1 156
#29
TENSIONER
$37.55¢18 775
#30
Bush
$8.03¢4 013
#31
COLLAR
$7.72¢3 863
#32
BOLT, FLANGE
$4.69¢2 344
#33
NUT,U
$3.41¢1 706
#34
CLAMP
$1.96¢981
#35
Clamp
$1.51¢756
#36
Clamp
$1.51¢756
#37
CLAMP
$16.57¢8 288
#38
MOLD, FUEL TANK
$14.55¢7 275
#39
MOLD, SEAT
$9.51¢4 756
#40
DAMPER, PLATE
$6.50¢3 250
#41
PROTECTOR
$6.52¢3 262
#42
PROTECTOR
$5.95¢2 975
#43
PROTECTOR, FUEL TANK
$13.71¢6 856
