CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

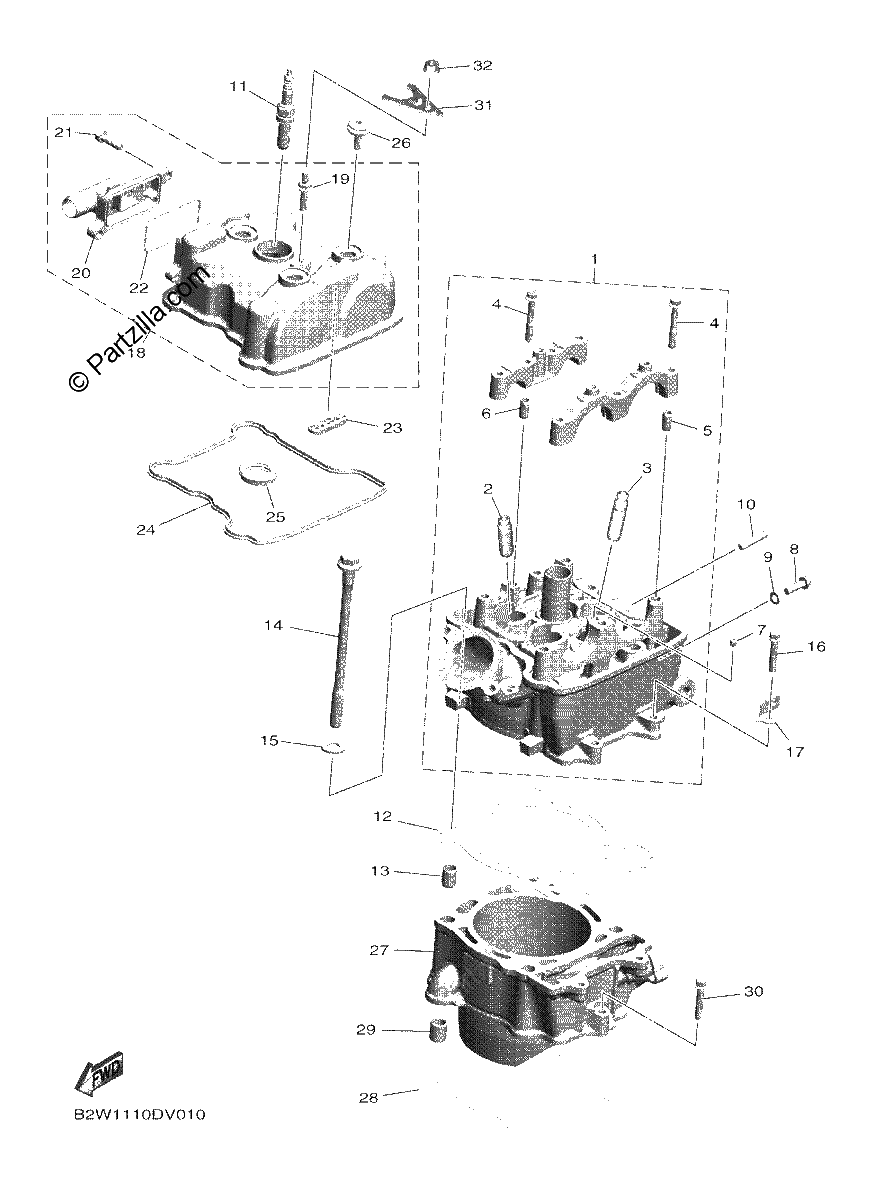

Diagrama de CYLINDER

Repuestos

#1
B2W-11102-00-00
Cylinder Head Assy
$712.60¢356 299
1
#2
B2W-11133-10-00
GUIDE, VALVE 1
$88.45¢44 223
1
#3
5PS-11134-10-00
GUIDE, VALVE 2
$73.94¢36 973
1
#4
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#5
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#6
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#7
B2W-15138-00-00
NOZZLE 1
$5.20¢2 599
1
#8
90105-06227-00
Bolt, Flange
$0.84¢420
1
#9
90430-06014-00
GASKET
$7.59¢3 795
1
#10
90116-06037-00
BOLT, stud
$3.70¢1 852
1
#11
LMA-RG800-00-00
PLUG, SPARK (NGK LMAR8G)
No Disponible
1
#12
B2W-11181-00-00
GASKET, CYLINDER HEAD 1
$25.59¢12 794
1
#13
93612-16254-00
PIN,DOWEL
$4.77¢2 386
1
#14
90105-10367-00
Bolt, Flange
$11.73¢5 865
1
#15
90201-10025-00
WASHER, plate
$6.82¢3 410
1
#16
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.78¢391
1
#17
BR9-81128-00-00
Clamp
$6.50¢3 249
1
#18
BDB-11190-00-00
COVER, CYLINDER HEAD 1
$289.42¢144 710
1
#19
90116-06048-00
. BOLT, STUD
$5.07¢2 536
1
#20
BDB-11168-00-00
. COVER, BREATHER
$33.90¢16 951
1
#21
90105-06225-00
Bolt, Flange
$0.89¢443
1
#22
B2W-11169-00-00
GASKET, BREATHER COVER
$8.21¢4 105
1
#23
B2W-12241-00-00
GUIDE, STOPPER 2
$9.69¢4 847
1
#24
B2W-11193-00-00
GASKET, HEAD COVER 1
$20.49¢10 247
1
#25
1SM-11194-00-00
GASKET, HEAD COVER 2
$15.65¢7 826
1
#26
5UM-1119E-00-00
BOLT, COVER HEAD
$12.02¢6 009
1
#27
B2W-11311-00-00
CYLINDER 1
$398.49¢199 243
1
#28
B2W-11351-00-00
Gasket, Cylinder
$13.41¢6 704
1
#29
99530-14016-00
PIN, DOWEL
$3.51¢1 754
1
#30
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.78¢391
1
#31
BR9-11395-00-00
HOLDER
$4.67¢2 335
1
#32
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
