TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

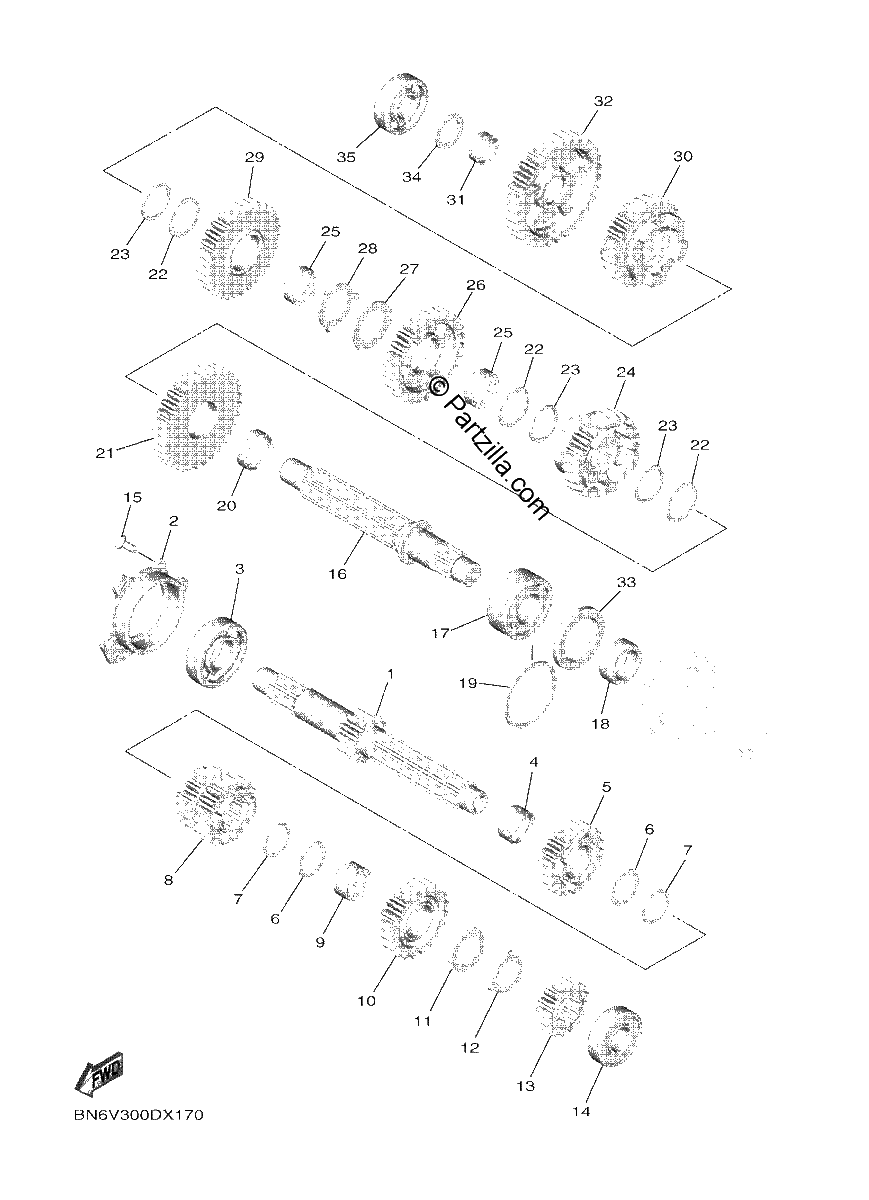

Diagrama de TRANSMISSION

Repuestos

#1
2C0-17411-00-00
AXLE, MAIN (12T)
$178.98¢89 488
1
#2
2C0-15163-00-00
HOUSING, BEARING 1
$126.02¢63 012
1
#3
93306-20562-00
BEARING
$50.08¢25 038
1
#4
90387-250R3-00
COLLAR
$31.99¢15 994
1
#5
13S-17151-00-00
GEAR, 5TH PINION (21T)
$120.10¢60 050
1
#6
90209-21332-00
WASHER
$8.03¢4 013
1
#7
93440-25186-00
CIRCLIP
$6.45¢3 225
1
#8
13S-17131-00-00
GEAR, 3RD PINION (18T/18T)
$256.19¢128 094
1
#9
90387-21003-00
COLLAR
$31.35¢15 675
1
#10
13S-17161-10-00
GEAR, 6TH PINION (20T)
$151.10¢75 550
1
#11
90209-22352-00
WASHER
$22.44¢11 219
1
#12
90209-21351-00
WASHER
$13.61¢6 806
1
#13
13S-17121-10-00
GEAR, 2ND PINION (16T)
$50.66¢25 331
1
#14
93306-20464-00
BEARING
$42.14¢21 069
1
#15
90151-06024-00
SCREW, COUNTERSUNK
$7.77¢3 887
1
#16
13S-17421-00-00
AXLE, DRIVE
$306.22¢153 112
1
#17
93305-20509-00
BEARING
$126.35¢63 175
1
#18
90387-25016-00
COLLAR
$35.48¢17 738
1
#19
93440-52014-00
CIRCLIP
$11.00¢5 500
1
#20
90387-28011-00
COLLAR
$28.22¢14 112
1
#21
13S-17221-00-00
GEAR, 2ND WHEEL (32T)
$158.05¢79 025
1
#22
90209-25011-00
WASHER
$8.60¢4 300
1
#23
93440-28184-00
CIRCLIP
$4.41¢2 206
1
#24
2C0-17261-00-00
GEAR, 6TH WHEEL (23T)
$206.18¢103 088
1
#25
90387-25015-00
COLLAR
$31.19¢15 594
1
#26
2C0-17241-00-00
GEAR, 4TH WHEEL (26T)
$148.86¢74 431
1
#27
90214-25004-00
WASHER, CLAW
$8.63¢4 313
1
#28
90214-25003-00
WASHER, CLAW
$8.64¢4 319
1
#29
2C0-17231-00-00
GEAR, 3RD WHEEL (30T)
$162.20¢81 100
1
#30
13S-17251-00-00
GEAR, 5TH WHEEL (27T)
$204.38¢102 188
1
#31
90387-21004-00
COLLAR
$23.03¢11 513
1
#32
2C0-17211-00-00
GEAR, 1ST WHEEL (31T)
$108.05¢54 025
1
#33
93102-35017-00
OIL SEAL
$20.74¢10 369
1
#34
90201-20278-00
WASHER, PLATE
$10.67¢5 337
1
#35
93306-20464-00
BEARING
$42.14¢21 069
1
