FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

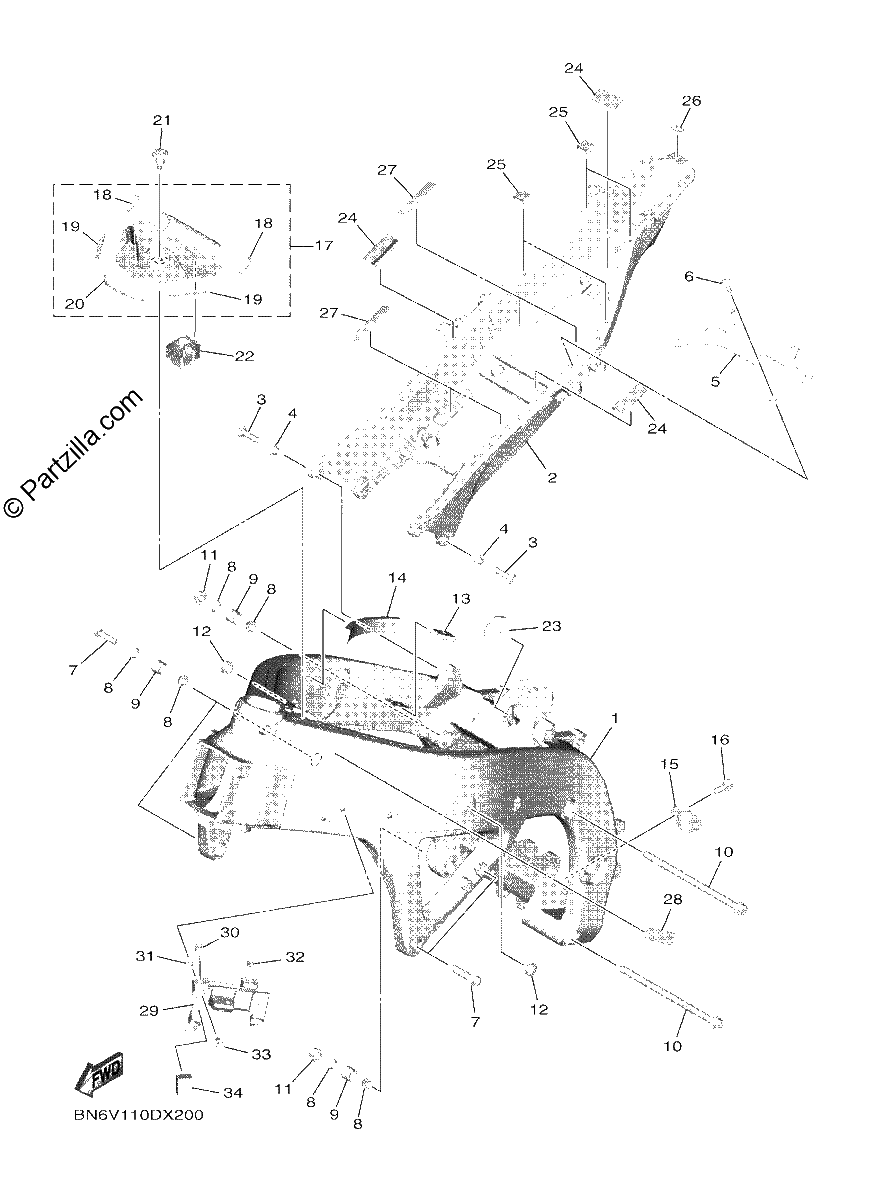

Diagrama de FRAME

Repuestos

#1
BN6-21110-00-00
FRAME COMP.
$3011.24¢1 505 619
1
#2
BN6-21190-00-00
REAR FRAME COMP.
$1681.24¢840 619
1
#3
90149-10002-00
SCREW
$10.40¢5 200
1
#4
2CR-21116-00-00
COLLAR
$18.90¢9 450
1
#5
BN6-21670-00-00
REINF. COMP.
$61.46¢30 731
1
#6
90111-06155-00
BOLT, HEX. SOCKET BUTTON
$2.07¢1 037
1
#7
95024-10040-00
BOLT, FLANGE (SMALL HEAD)
$4.04¢2 019
1
#8
13S-21414-00-00
BOSS, ENGINE MOUNT
$29.39¢14 694
1
#9
13S-21424-00-00
BOSS, ENGINE MOUNT
$44.84¢22 419
1
#10
90105-12228-00
BOLT, FLANGE
$21.05¢10 525
1
#11
90179-12004-00
NUT
$6.23¢3 113
1
#12
90338-15004-00
PLUG
$7.46¢3 731
1
#13
2C0-24182-00-00
DAMPER, LOCATING 2
$7.91¢3 956
1
#14
2C0-21486-00-00
DAMPER 2
$7.08¢3 538
1
#15
13S-21435-00-00
BRACKET, MUFFLER 1
$22.48¢11 238
1
#16
90105-08171-00
BOLT, FLANGE
$2.01¢1 006
1
#17
13S-2110M-00-00
COVER ASSY 1
$54.81¢27 406
1
#18
13S-2174X-00-00
DAMPER
$3.73¢1 863
1
#19
2C0-2174Y-00-00
DAMPER
$4.00¢2 000
1
#20
2C0-21746-00-00
DAMPER
$3.73¢1 863
1
#21
90269-07010-00
RIVET
$4.45¢2 225
1
#22
2C0-8258J-00-00
HOUSING, CONNECTOR 1
$13.01¢6 506
1
#23
2C0-21279-00-00
PLUG, BLIND
$5.59¢2 794
1
#24
4B5-28268-00-00
SEAL 4
$7.95¢3 975
1
#25
2CR-22875-01-00
SEAL 3
$2.91¢1 456
1
#26
5SL-21268-00-00
SEAL
$7.08¢3 538
1
#27
4B5-28238-00-00
SEAL 3
$5.66¢2 831
1
#28
17D-2812P-00-00
PLATE, COMPETITION USA
$7.28¢3 638
1
#29
13S-2833A-01-00
BRACKET 7
$9.49¢4 744
1
#30
90480-10003-00
GROMMET
$7.48¢3 738
1
#31
90387-06048-00
Collar
$7.23¢3 613
1
#32
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#33
95D02-06020-00
BOLT, FLANGE DEEP RECESS
$0.30¢150
1
#34
13S-12679-00-00
DAMPER, SHROUD 6
$3.73¢1 863
1
