SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

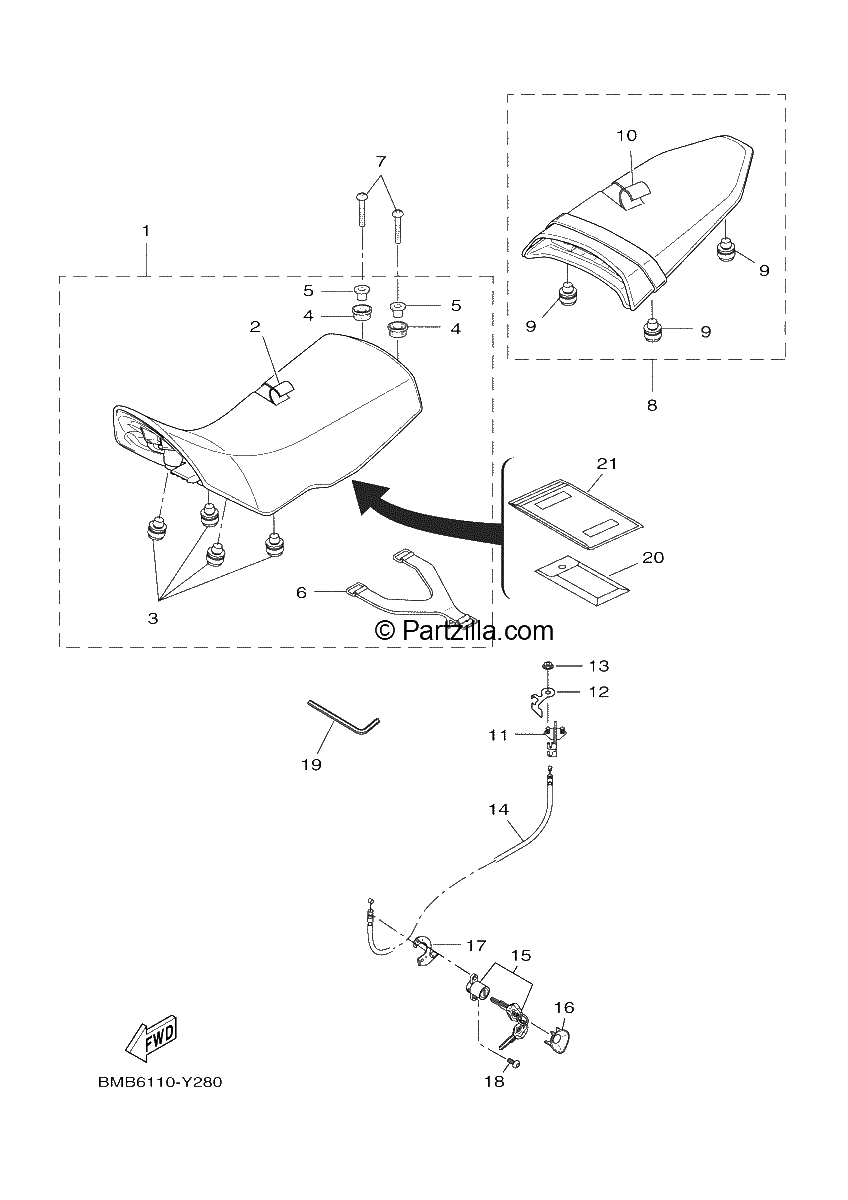

Diagrama de SEAT

Repuestos

#1
BW3-F4710-00-00
SINGLE SEAT ASSY
$328.36¢164 180
1
#2
BW3-F470F-00-00
. .SEAT COVER COMP.
$188.94¢94 473
1
#3
1SD-F4723-00-00
. .DAMPER, SEAT
$22.63¢11 316
1
#4
90480-14X03-00
. .GROMMET
$15.69¢7 843
1
#5
90387-07X09-00
. .COLLAR
$11.06¢5 531
1
#6
11D-F483H-00-00
. .BAND
$31.99¢15 997
1
#7
92012-06025-00
BOLT, BUTTON HEAD
$3.16¢1 581
1
#8
BW3-F4750-00-00
TANDEM SEAT ASSY
$254.05¢127 023
1
#9
1SD-F4723-00-00
. .DAMPER, SEAT
$22.63¢11 316
1
#10
BW3-F470H-00-00
. .SEAT COVER COMP. ,2
$128.22¢64 113
1
#11
1WD-F4780-00-00
SEAT LOCK ASSY
$22.48¢11 241
1
#12
BAU-2479K-00-00
PLATE, LOCK
$5.51¢2 754
1
#13
4XV-8182A-00-00
NUT
$6.88¢3 439
1
#14
BW3-F478E-00-00
CABLE, SEAT LOCK
$16.41¢8 205
1
#15
2TV-W2470-00-00
SEAT LOCK ASSY
$81.60¢40 802
1
#16
BW3-F4796-00-00
COVER
$37.32¢18 659
1
#17
23P-2117K-01-00
STAY, LOCK
$6.81¢3 404
1
#18
90149-06018-00
SCREW
$5.88¢2 938
1
#19
23P-28164-00-00
WRENCH, HEXAGON 8
$2.99¢1 495
1
#20
BMB-28100-00-00
TOOL KIT
$123.26¢61 629
1
#21
4KG-28186-11-00
POUCH
$7.81¢3 904
1
