FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

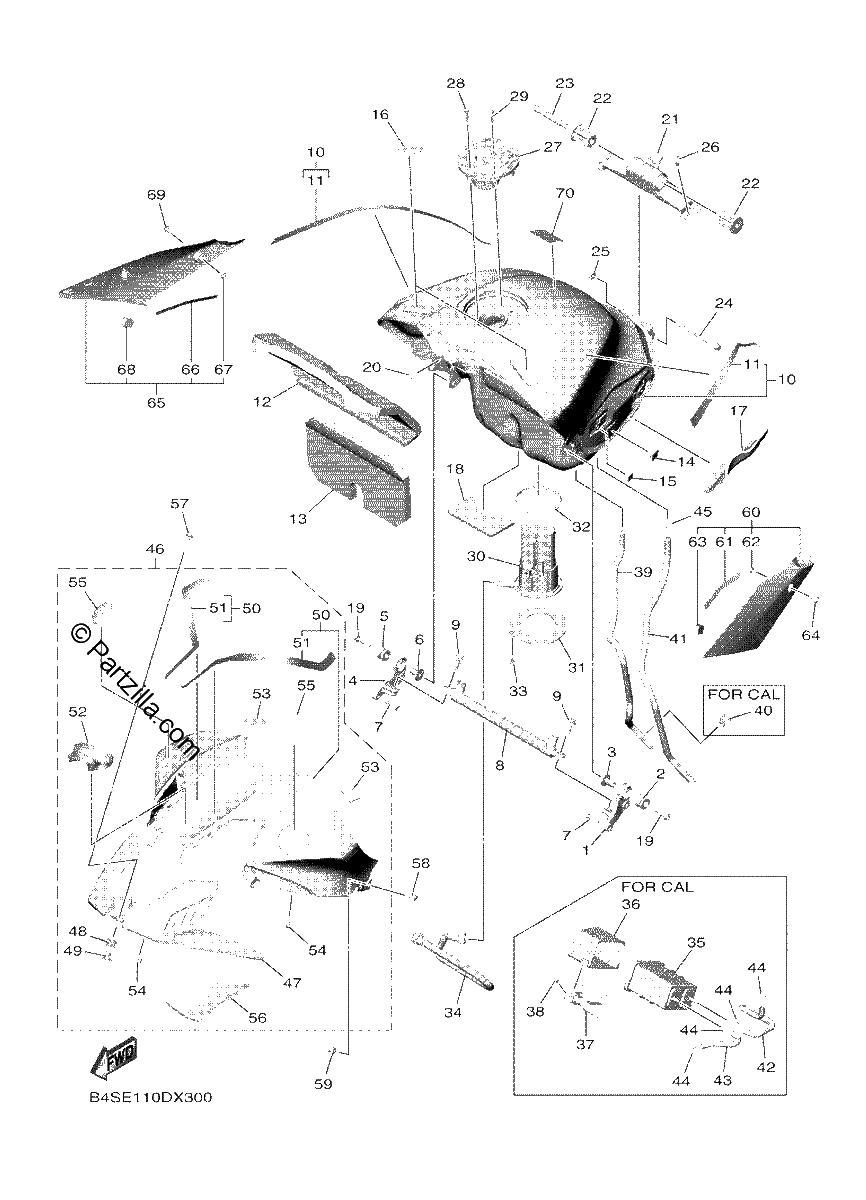

Diagrama de FUEL TANK

Repuestos

#1
2CR-24191-00-00
BRACKET, FUEL TANK 1
$27.86¢13 931
1
#2
90480-18008-00
GROMMET
$3.79¢1 894
1
#3
90387-06091-00
COLLAR
$7.41¢3 706
1
#4
2CR-24192-00-00
BRACKET, FUEL TANK 2
$24.53¢12 263
1
#5
90480-18008-00
GROMMET
$3.79¢1 894
1
#6
90387-06091-00
COLLAR
$7.41¢3 706
1
#7
91312-06025-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#8
B3L-2142V-00-00
CROSS BAR
$259.35¢129 675
1
#9
90110-08097-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#10
B4S-Y2410-10-02
FUEL TANK COMP. (BLACK METALLIC X) *{SMX}*
$2394.99¢1 197 494
1
#11
2KS-24240-00-00
GRAPHIC SET
$87.65¢43 825
1
#12
2CR-2414H-00-00
DAMPER, PLATE 1
$9.41¢4 706
1
#13
2CR-2414J-00-00
DAMPER, PLATE 2
$5.45¢2 725
1
#14
4D9-24741-00-00
PAD, SEAT
$3.06¢1 531
1
#15
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.65¢3 825
1
#16
2PP-2411G-00-00
HOOK, SIDE COVER 1
$8.03¢4 013
1
#17
B3L-24141-00-00
PROTECTOR, FUEL TANK
$5.38¢2 688
1
#18
B3L-2414G-00-00
SEAL
$7.50¢3 750
1
#19
90110-06346-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#20
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#21
B3L-2413Y-00-00
BRACKET, TANK FITTING
$42.42¢21 213
1
#22
5SL-24183-00-00
DAMPER, LOCATING 3
$7.65¢3 825
1
#23
90387-06055-00
COLLAR
$5.19¢2 594
1
#24
95812-06090-00
BOLT, FLANGE
$3.40¢1 700
1
#25
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#26
90111-06071-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#27
2CR-24602-00-00
CAP ASSY
$277.14¢138 569
1
#28
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#29
91312-05010-00
BOLT
$5.86¢2 931
1
#30
2CR-13907-01-00
FUEL PUMP COMP. (replaces 2CR-13907-00-00)
$493.40¢246 700
1
#31
2CR-24491-00-00
BRACKET, FUEL PUMP
$24.55¢12 275
1
#32
1RC-24486-00-00
O-RING
$29.22¢14 612
1
#33
90119-05015-00
BOLT, WITH WASHER (replaces 90119-05016-00)
$7.34¢3 669
1
#34
B3L-13971-01-00
PIPE, FUEL 1
$56.31¢28 156
1
#39
2CR-24312-00-00
PIPE 2
$19.34¢9 669
1
#41
2CR-24313-00-00
PIPE 3
$11.33¢5 663
1
#45
90467-090A2-00
Clip
$2.97¢1 487
1
#46
B4S-W217A-10-3X
TOP COVER ASSY. (MAT BLACK 2) (BLACK METALLIC X) *{BWM2/SMX/MBL2}*
$1521.24¢760 619
1
#47
B3L-2171A-00-P0
COVER, TOP
$200.47¢100 238
1
#48
90480-12023-00
GROMMET
$7.43¢3 713
1
#49
90387-06203-00
COLLAR
$8.30¢4 150
1
#50
B4S-Y240B-00-3X
COVER, TANK ASSY (BLACK METALLIC X) *{BWM2/SMX}*
$788.74¢394 369
1
#51
B4S-24230-00-00
. . ..GRAPHIC SET 1
$58.01¢29 006
1
#52
B4S-2416B-09-00
. .EMBLEM
$190.99¢95 494
1
#53
5XT-2411G-00-00
HOOK, SIDE COVER 1
$11.63¢5 813
1
#54
90464-04005-00
Clamp
$3.81¢1 906
1
#55
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#56
B3L-2414K-00-00
DAMPER, PLATE 3
$3.49¢1 744
1
#57
90110-06233-00
BOLT, HEXAGON SOCKET HEAD
$7.43¢3 713
1
#58
98902-05014-00
SCREW, BIND
$1.44¢719
1
#59
90179-05523-00
NUT
$6.78¢3 388
1
#60
B3L-24106-00-P1
TANK SIDE COVER ASSY 1
$110.30¢55 150
1
#61
90520-03016-00
DAMPER, PLATE
$1.30¢650
1
#62
90387-05035-00
COLLAR
$5.99¢2 994
1
#63
4D9-24741-00-00
PAD, SEAT
$3.06¢1 531
1
#64
90111-05057-00
BOLT,HEX. SOCKET BUTTON
$1.34¢669
1
#65
B3L-24108-00-P1
TANK SIDE COVER ASSY 2
$110.30¢55 150
1
#66
90520-03016-00
DAMPER, PLATE
$1.30¢650
1
#67
90387-05035-00
COLLAR
$5.99¢2 994
1
#68
4D9-24741-00-00
PAD, SEAT
$3.06¢1 531
1
#69
90111-05057-00
BOLT,HEX. SOCKET BUTTON
$1.34¢669
1
#70
29P-2816R-01-00
LABEL, WARNING GENERAL INFO.
$3.70¢1 850
1
