REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

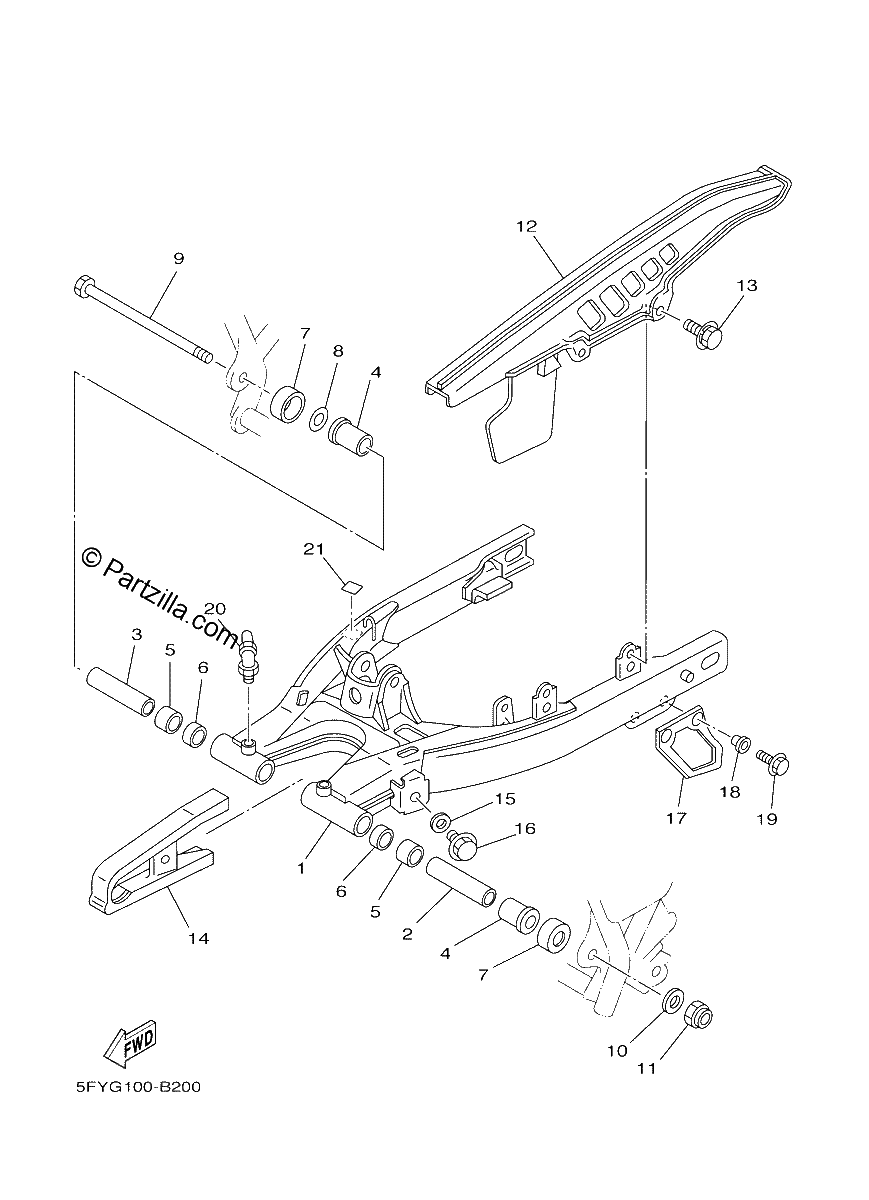

Diagrama de REAR ARM

Repuestos

#1
2JX-22110-00-35
REAR ARM COMP.
$851.99¢425 994
1
#2
2JX-22123-00-00
BUSH 1
$26.07¢13 038
1
#3
2JX-22124-00-00
BUSH 2
$38.05¢19 025
1
#4
90386-18146-00
BUSH,SPEC'L NYLON
$18.89¢9 444
1
#5
90380-18139-00
BUSH,SOLID
$19.52¢9 763
1
#6
93109-18020-00
OIL SEAL,SDO-TYPE
$13.31¢6 656
1
#7
401-22128-01-00
COVER, THRUST 1
$30.38¢15 188
1
#8
401-22127-00-00
SHIM
$7.88¢3 938
1
#9
2JX-22141-00-00
SHAFT,PIVOT
$21.27¢10 638
1
#10
90201-120E8-00
WASHER,PLATE (55X)
$5.84¢2 919
1
#11
90185-12134-00
NUT,SELF-LOCKING
$12.04¢6 019
1
#12
34X-22311-01-00
CASE, CHAIN
$35.02¢17 513
1
#13
90119-05059-00
BOLT,WITH WASHER
$2.20¢1 100
1
#14
34X-22151-01-00
SEAL, GUARD
$95.51¢47 756
1
#15
90209-06187-00
WASHER,SPEC'L SHAP
$7.35¢3 675
1
#16
90119-05062-00
BOLT, WITH WASHER
$6.67¢3 338
1
#17
5BT-22199-00-00
SUPPORT, CHAIN
$24.13¢12 063
1
#18
90387-06737-00
COLLAR
$7.88¢3 938
1
#19
95807-06020-00
BOLT, FLANGE
$3.31¢1 656
1
#20
93700-06009-00
NIPPLE,GREASE
$11.81¢5 906
1
#21
3MA-27491-00-00
PROTECTOR
$9.89¢4 944
1
