CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

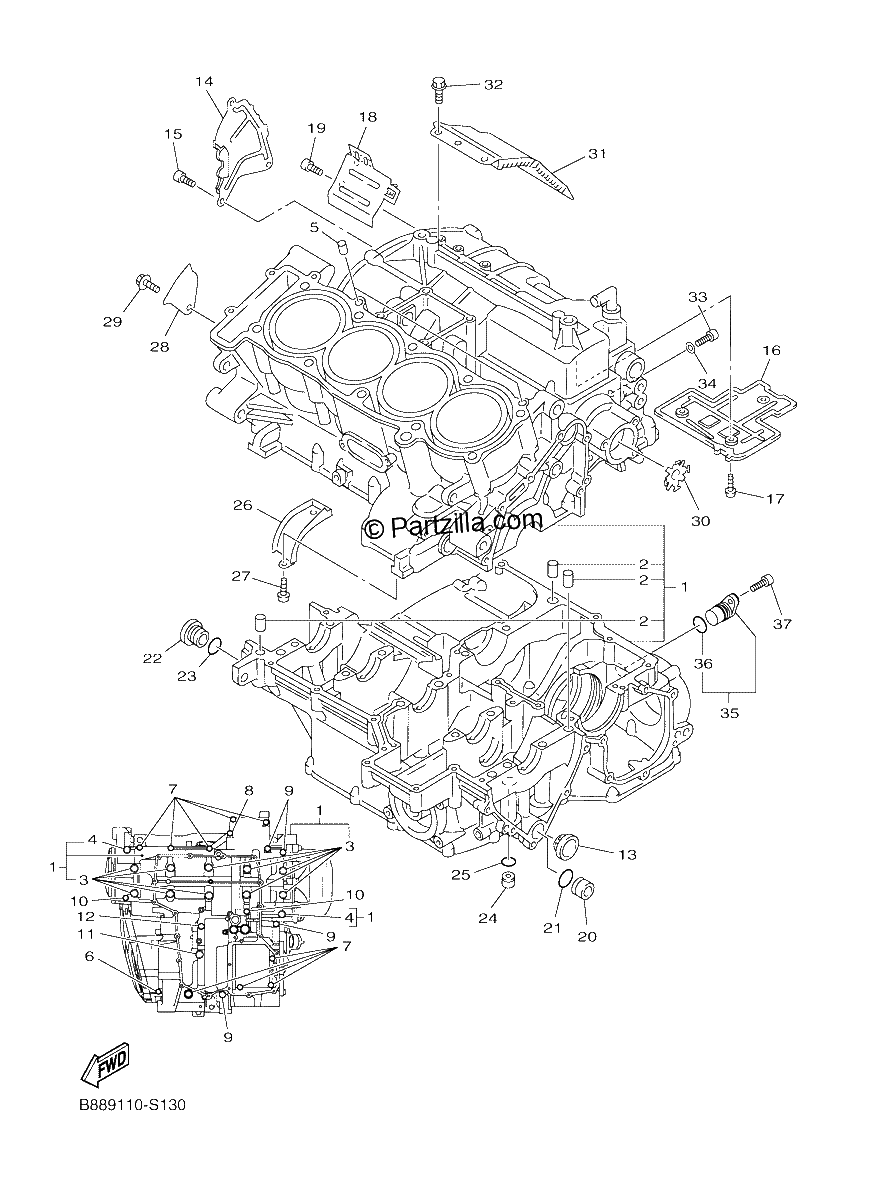

Diagrama de CRANKCASE

Repuestos

#1
B88-15100-09-00
CRANKCASE ASSY
$2729.99¢1 364 994
1
#2
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#3
90119-09001-00
BOLT, WITH WASHER
$7.08¢3 538
1
#4
90109-06168-00
BOLT
No Disponible
1
#5
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#6
95812-06045-00
Bolt, Flange
$7.35¢3 675
1
#7
95812-06055-00
BOLT, FLANGE
$1.75¢875
1
#8
90105-06079-00
Bolt, Flange
$1.75¢875
1
#9
95812-06065-00
BOLT, FLANGE
$6.14¢3 069
1
#10
95812-06080-00
BOLT, FLANGE
$7.52¢3 762
1
#11
95812-08050-00
Bolt, Flange
$3.74¢1 869
1
#12
95812-08065-00
Bolt, Flange
$4.20¢2 100
1
#13
2H7-15361-00-00
GAUGE, LEVEL
$102.81¢51 406
1
#14
5JW-11165-01-00
PLATE, BREATHER
$41.15¢20 575
1
#15
90110-06182-00
BOLT
$7.34¢3 669
1
#16
B88-11145-01-00
PLATE, BREATHER 2
$43.09¢21 544
1
#17
90149-06158-00
SCREW
$7.56¢3 781
1
#18
5JW-15412-00-00
COVER, OIL PUMP
$24.90¢12 450
1
#19
90110-06182-00
BOLT
$7.34¢3 669
1
#20
90338-20263-00
PLUG
$11.97¢5 988
1
#21
93210-16314-00
O-RING
$4.65¢2 325
1
#22
4H7-15189-00-00
PLUG
$30.76¢15 381
1
#23
93210-207A0-00
O-Ring
$1.15¢575
1
#24
90338-16262-00
PLUG
$13.77¢6 887
1
#25
93210-12790-00
O-RING
$6.85¢3 425
1
#26
5JW-15191-00-00
PLATE
$21.19¢10 594
1
#27
90149-06158-00
SCREW
$7.56¢3 781
1
#28
1MC-15189-00-00
PLUG
$2.97¢1 487
1
#29
90105-06080-00
BOLT, FLANGE
$6.49¢3 244
1
#30
5JW-15645-00-00
PLATE
$8.85¢4 425
1
#31
5JW-15113-01-00
PLATE
$92.80¢46 400
1
#32
90105-06080-00
BOLT, FLANGE
$6.49¢3 244
1
#33
97022-10014-00
BOLT, HEXAGON
$1.95¢975
1
#34
90430-10148-00
Gasket
$5.66¢2 831
1
#35
3P6-15399-00-00
PLUG, BLIND
$21.85¢10 925
1
#36
93210-15566-00
O-RING
$6.88¢3 438
1
#37
90110-06193-00
BOLT, HEXAGON SOCKET HEAD
$1.46¢731
1
