FUEL TANK 2 FOR CAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

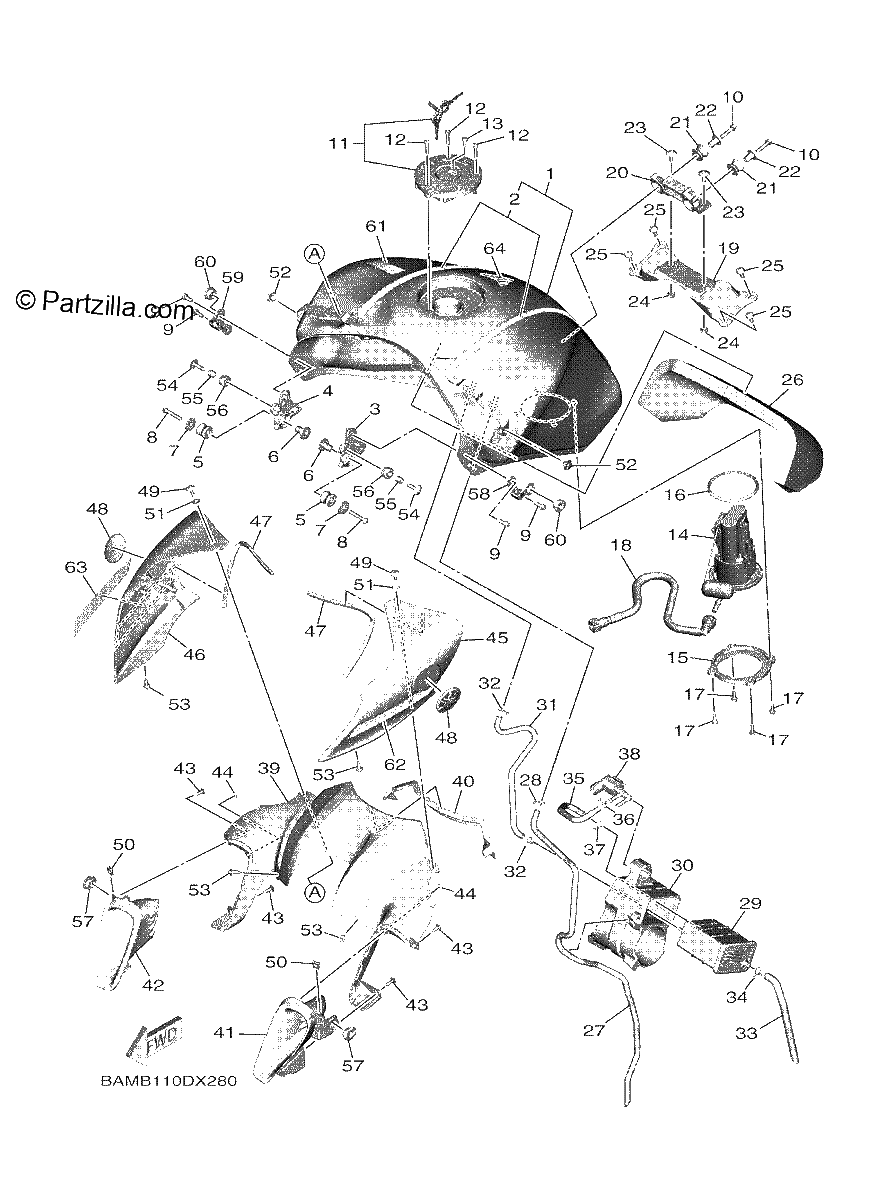

Diagrama de FUEL TANK 2 FOR CAL

Repuestos

#1
B7N-Y2410-00-04
FUEL TANK COMP. (BLACK METALLIC X) *{BWM2/SMX FOR BWM2}*
$1014.99¢507 494
1
#2
BAM-24240-00-00
. GRAPHIC SET
$59.96¢29 981
1
#3
B7N-24191-00-00
BRACKET, FUEL TANK 1
$27.94¢13 969
1
#4
B7N-24192-00-00
BRACKET, FUEL TANK 2
$31.04¢15 519
1
#5
90480-18008-00
GROMMET
$3.79¢1 894
1
#6
90387-06266-00
COLLAR
$4.68¢2 338
1
#7
90201-06072-00
WASHER, PLATE
$7.63¢3 813
1
#8
92012-06035-00
BOLT, BUTTON HEAD
$2.05¢1 025
1
#9
95E37-06014-00
BOLT, FLANGE DEEP RECESS
$0.41¢206
1
#10
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#11
39P-24602-00-00
CAP ASSY
$270.61¢135 306
1
#12
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#13
91312-05010-00
BOLT
$5.86¢2 931
1
#14
1RC-13907-10-00
FUEL PUMP COMP.
$463.40¢231 700
1
#15
1RC-24491-00-00
BRACKET, FUEL PUMP
$29.35¢14 675
1
#16
1RC-24486-00-00
O-RING
$29.22¢14 612
1
#17
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#18
B7N-13971-00-00
PIPE, FUEL 1
$65.14¢32 569
1
#19
B7N-2413Y-00-00
BRACKET, TANK FITTING
$51.74¢25 869
1
#20
B7N-2419F-00-00
BRACKET, CANISTOR
$21.76¢10 881
1
#21
3D7-24339-00-00
GROMMET
$3.93¢1 963
1
#22
90387-06136-00
COLLAR
$6.76¢3 381
1
#23
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
1
#24
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#25
90111-06029-00
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
1
#26
B7N-2414H-00-00
DAMPER, PLATE 1
$9.75¢4 875
1
#27
B7N-24315-00-00
PIPE 5
$24.13¢12 063
1
#28
90467-090A2-00
Clip
$2.97¢1 487
1
#29
B7N-24170-00-00
CANISTER ASSY
$81.59¢40 794
1
#30
B7N-24183-00-00
DAMPER, LOCATING 3
$65.08¢32 538
1
#31
B7N-24313-10-00
PIPE 3
$32.44¢16 219
1
#32
90467-090A2-00
Clip
$2.97¢1 487
1
#33
B7N-24316-00-00
PIPE 6
$10.04¢5 019
1
#34
90467-10041-00
Clip
$7.60¢3 800
1
#35
B7N-24317-10-00
PIPE 7
$21.31¢10 656
1
#36
90467-090A2-00
Clip
$2.97¢1 487
1
#37
90467-09103-00
Clip
$2.97¢1 487
1
#38
B7N-86120-00-00
SOLENOID VALVE ASSY
$48.61¢24 306
1
#39
B7N-241B1-01-00
COVER, TANK
$117.90¢58 950
1
#40
B7N-2418B-00-00
MOLE, FUEL TANK 1
$50.44¢25 219
1
#41
B7N-2837N-00-00
GRILL, AIR INTAKE 1
$11.36¢5 681
1
#42
B7N-2837R-00-00
GRILL, AIR INTAKE 2
$8.16¢4 081
1
#43
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#44
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#45
B7N-2137W-00-P2
SCOOP, AIR 1 (BLACK METALLIC X)
$73.76¢36 881
1
#46
B7N-2137X-00-P2
SCOOP, AIR 2 (BLACK METALLIC X)
$73.76¢36 881
1
#47
90520-07002-00
DAMPER, PLATE
$1.34¢669
1
#48
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#49
90111-05007-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#50
90183-05042-00
NUT, SPRING
$1.25¢625
1
#51
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#52
90269-09006-00
RIVET
$1.79¢894
1
#53
90269-06001-00
RIVET
$6.45¢3 225
1
#54
90111-06137-00
BOLT,HEX. SOCKET BUTTON
$5.69¢2 844
1
#55
90387-06057-00
COLLAR
$7.34¢3 669
1
#56
90480-14003-00
GROMMET
$7.43¢3 713
1
#57
90480-01558-00
Grommet
$4.69¢2 344
1
#58
B7N-2411F-00-00
PLATE, FITTING
$6.18¢3 088
1
#59
B7N-2411L-00-00
HOOK TANK FITTING
$6.69¢3 344
1
#60
90480-13567-00
GROMMET
$4.63¢2 313
1
#61
29P-2816R-01-00
LABEL, WARNING GENERAL INFO.
$3.70¢1 850
1
#62
BAM-2173E-10-00
GRAPHIC 1
$7.31¢3 656
1
#63
BAM-2173F-10-00
GRAPHIC 2
$8.49¢4 244
1
#64
B67-24161-30-00
EMBLEM 1
$20.76¢10 381
