CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

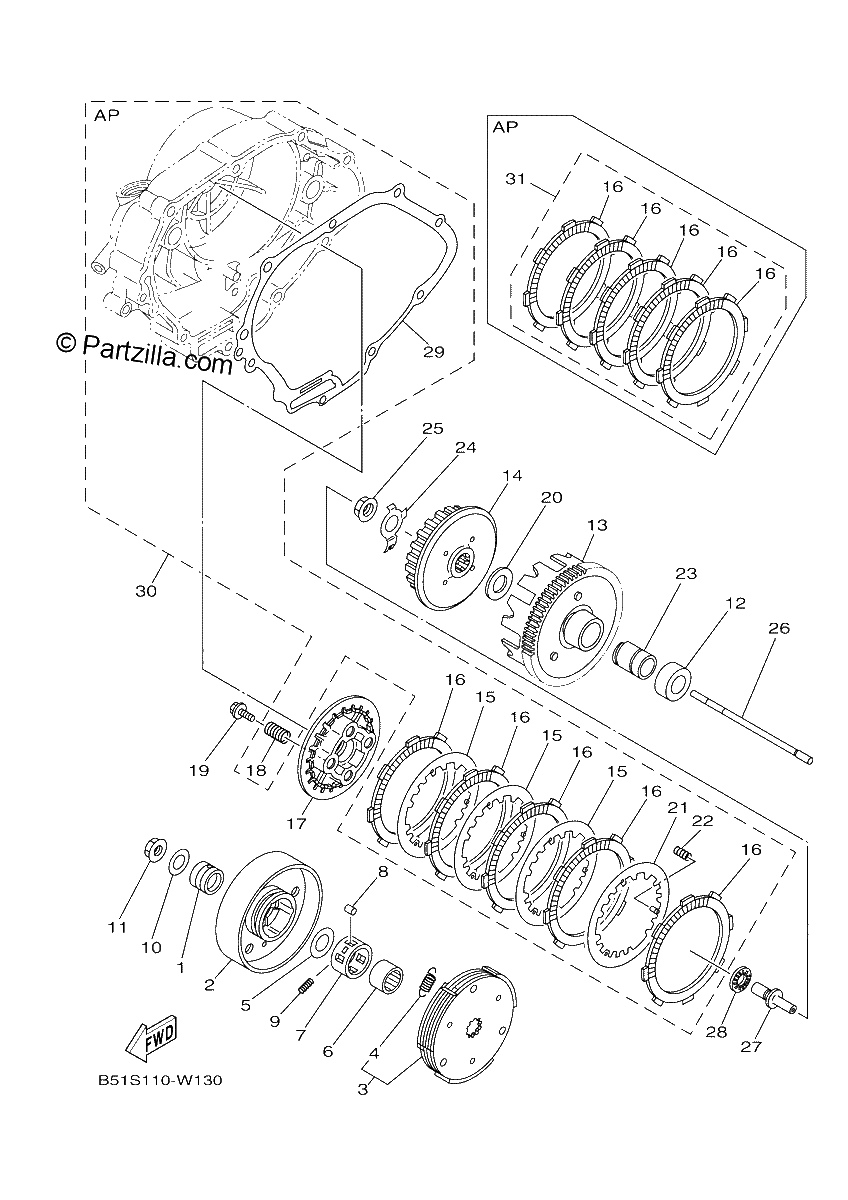

Diagrama de CLUTCH

Repuestos

#1
90387-16803-00
COLLAR
$37.78¢18 889
1
#2
2P2-E6611-00-00
CLUTCH HOUSING COMP.
$47.79¢23 897
1
#3
2P2-E6620-00-00
CLUTCH CARRIER ASSY
$75.32¢37 662
1
#4
2P2-E6626-00-00
SPRING, CLUTCH WEIGH
$1.05¢523
1
#5
90201-167P7-00
WASHER, plate
$9.20¢4 600
1
#6
5LM-E6512-00-00
BOSS, CLUTCH HOUSING
$59.25¢29 624
1
#7
5D9-E6586-00-00
CAGE (5D93,31B3)
$2.22¢1 110
1
#8
93606-10800-00
Pin, Dowel
$3.00¢1 501
1
#9
90501-04800-00
SPRING, COMPRESSIO
$2.02¢1 012
1
#10
90201-12019-00
WASHER, plate
$5.12¢2 559
1
#11
90179-12659-00
NUT, (1FE) (replaces 90179-12813-00)
$5.89¢2 944
1
#12
90560-17384-00
SPACER
$16.97¢8 487
1
#13
2P2-E6150-00-00
PRIMARY DRIVEN GEAR
$81.10¢40 549
1
#14
2P2-E6371-00-00
BOSS, CLUTCH (2P21)
$16.03¢8 015
1
#15
2P2-E6324-00-00
PLATE, CLUTCH 1 (2P2
$2.56¢1 282
1
#16
2P2-E6321-00-00
PLATE, FRICTION (2P2
$9.12¢4 560
1
#17
2P2-E6351-00-00
PLATE, PRESSURE 1 (2
$11.36¢5 681
1
#18
90501-203G2-00
SPRING, COMPRESSION(
$3.14¢1 570
1
#19
90119-05827-00
BOLT, WITH WASHER
$3.05¢1 524
1
#20
90201-178J5-00
WASHER, PLATE
$4.67¢2 335
1
#21
2P2-E6350-00-00
PRESSURE PLATE ASSY
$9.41¢4 703
1
#22
90501-050F1-00
SPRING, COMPRESSION(
$4.53¢2 266
1
#23
90387-17004-00
Collar
$13.96¢6 981
1
#24
5TP-E6135-00-00
WASHER, LOCK
$7.42¢3 709
1
#25
90179-14001-00
Nut
$9.71¢4 853
1
#26
5LM-E6357-00-00
ROD, PUSH 2
$9.12¢4 560
1
#27
5LM-E6356-01-00
ROD, PUSH 1 (JUPITER
$28.69¢14 346
1
#28
93340-210Y0-00
BEARING
$8.57¢4 284
1
#29
4ST-E5461-11-00
GASKET, CRANKCASE COVER 2
$12.60¢6 302
1
#30
B51-W001G-00-00
CLUTCH PLATE KIT
$143.37¢71 685
1
#31
B51-W001M-00-00
FRICTION PLATE KIT
$127.79¢63 894
1
