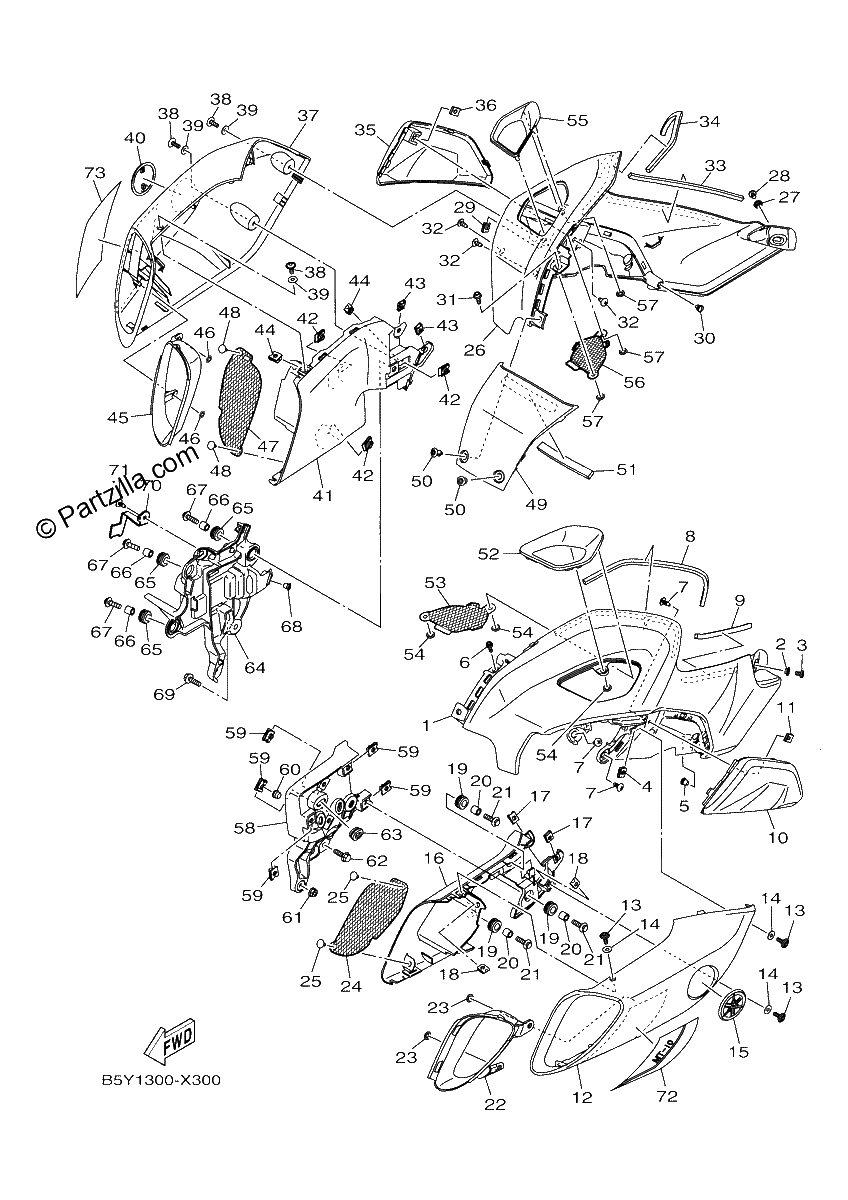

FUEL TANK 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, SIDE 1 (PASTEL DARK GRAY) *{UR FOR PGD}*
$128.12¢64 061
#2
COLLAR
$5.51¢2 754
#3
SCREW, BIND
$1.35¢673
#4
NUT, SPRING
$2.60¢1 299
#5
PLUG
$6.22¢3 111
#6
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 921
#7
SCREW, TAPPING
$3.54¢1 771
#8
Damper
$1.79¢897
#9
DAMPER, LOCATING 4
$1.23¢615
#10
MOLE 1
$23.84¢11 920
#11
NUT, SPRING
$1.15¢575
#12
SCOOP, AIR 1 (YAMAHA BLACK) (PASTEL DARK GRAY) *{UR YB FOR PGD}*
$174.13¢87 066
#13
BOLT, HEXAGON SOCKET BUTTON
$2.74¢1 368
#14
WASHER, PLATE
$7.05¢3 525
#15
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
#16
STAY, SIDE COVER 1 (YAMAHA BLACK) (PASTEL DARK GRAY) *{UR YB FOR PGD}*
$105.89¢52 946
#17
NUT, SPRING
$1.15¢575
#18
NUT, SPRING
$2.60¢1 299
#19
GROMMET
$6.83¢3 415
#20
COLLAR
$6.83¢3 415
#21
BOLT, FLANGE
$1.98¢989
#22
CAP 1 (YAMAHA BLACK) (PASTEL DARK GRAY) *{UR YB FOR PGD}*
$55.04¢27 519
#23
NUT, SPRING
$0.46¢230
#24
GRILL, AIR INTAKE 1
$34.83¢17 417
#25
RIVET
$7.67¢3 835
#26
COVER, SIDE 2 (PASTEL DARK GRAY) *{UR FOR PGD}*
$164.48¢82 242
#27
COLLAR
$5.51¢2 754
#28
SCREW, BIND
$1.35¢673
#29
NUT, SPRING
$2.60¢1 299
#30
PLUG
$6.22¢3 111
#31
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 921
#32
SCREW, TAPPING
$3.54¢1 771
#33
Damper
$1.79¢897
#34
DAMPER, LOCATING 4
$1.23¢615
#35
MOLE 2
$25.36¢12 679
#36
NUT, SPRING
$1.15¢575
#37
SCOOP, AIR 2 (YAMAHA BLACK) (PASTEL DARK GRAY) *{UR YB FOR PGD}*
$184.52¢92 259
#38
BOLT, HEXAGON SOCKET BUTTON
$2.74¢1 368
#39
WASHER, PLATE
$7.05¢3 525
#40
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
#41
STAY, SIDE COVER 2 (YAMAHA BLACK) (PASTEL DARK GRAY) *{UR YB FOR PGD}*
$119.32¢59 662
#42
NUT, SPRING
$6.68¢3 341
#43
NUT, SPRING
$1.15¢575
#44
NUT, SPRING
$2.60¢1 299
#45
CAP 2 (YAMAHA BLACK) (PASTEL DARK GRAY) *{UR YB FOR PGD}*
$60.58¢30 291
#46
NUT, SPRING
$0.46¢230
#47
GRILL, AIR INTAKE 1
$34.83¢17 417
#48
RIVET
$7.67¢3 835
#49
COVER, TANK (PASTEL DARK GRAY) *{UR FOR PGD}*
$69.92¢34 960
#50
RIVET
$3.19¢1 593
#51
Damper
$7.23¢3 617
#52
GUIDE, AIR 1
$14.48¢7 239
#53
GRILL, AIR OUTLET 1
$36.70¢18 348
#54
NUT, SPRING
$0.46¢230
#55
GUIDE, AIR 2
$13.12¢6 561
#56
GRILL, AIR OUTLET 2
$39.03¢19 515
#57
NUT, SPRING
$0.46¢230
#58
BRACKET 1
$29.66¢14 829
#59
NUT, SPRING
$6.68¢3 341
#60
CAP, GREASE NIPPLE
$2.05¢1 023
#61
NUT, FLANGE
$2.24¢1 121
#62
BOLT, FLANGE DEEP RECESS
$0.44¢218
#63
GROMMET
$3.21¢1 604
#64
BRACKET 2
$29.27¢14 634
#65
GROMMET
$6.83¢3 415
#66
COLLAR
$6.83¢3 415
#67
BOLT, FLANGE
$1.98¢989
#68
PLUG
$6.22¢3 111
#69
BOLT, FLANGE DEEP RECESS
$0.44¢218
#70
BRACKET, SEAT
$8.11¢4 054
#71
SCREW, TAPPING
$3.54¢1 771
#72
GRAPHIC 1 (PASTEL DARK GRAY) *{UR FOR PGD}*
$44.07¢22 034
#73
GRAPHIC 2 (PASTEL DARK GRAY) *{UR FOR PGD}*
$43.53¢21 764
