ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

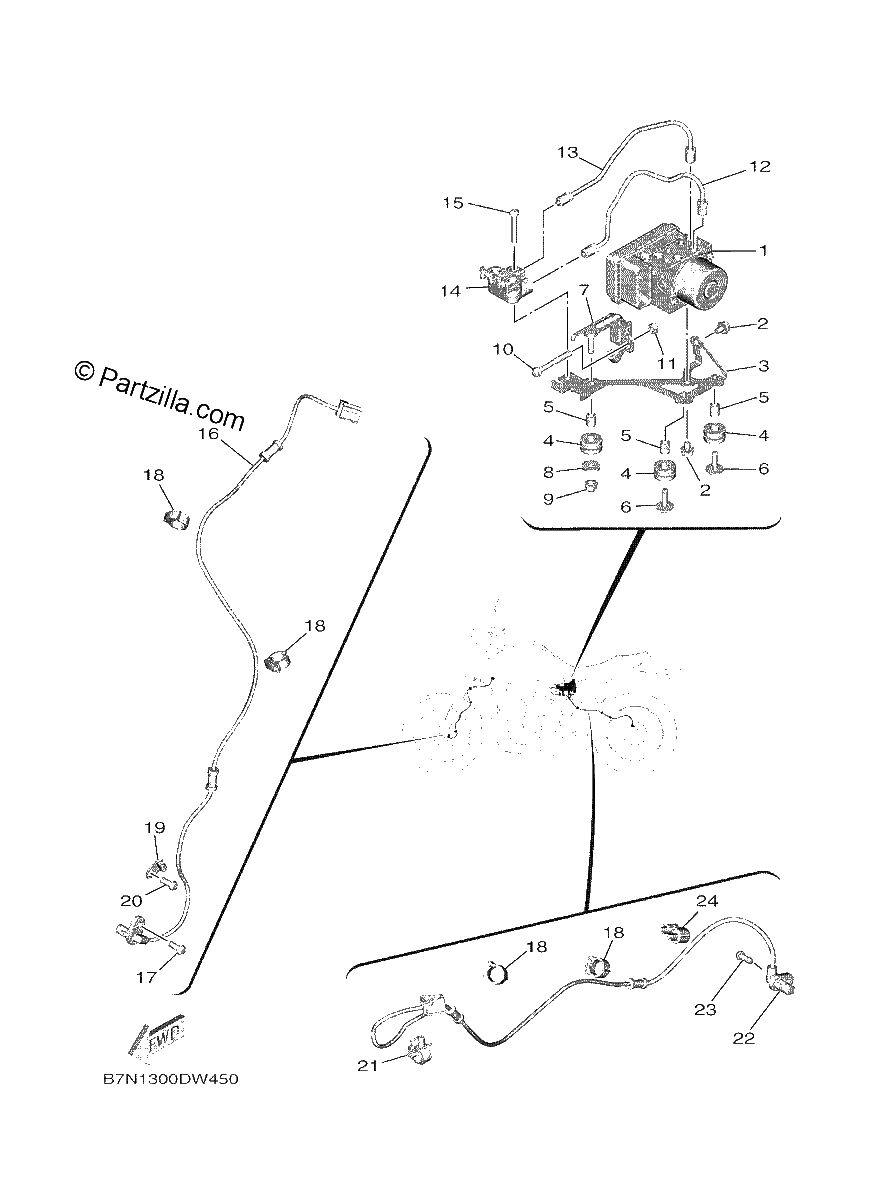

Diagrama de ELECTRICAL 3

Repuestos

#1
B7N-85930-09-00
HYDRAULIC UNIT ASSY
$924.59¢462 294
1
#2
95822-06008-00
BOLT, FLANGE
$5.30¢2 651
1
#3
B7N-85991-00-00
BRACKET, UNIT
$38.86¢19 429
1
#4
90480-14229-00
GROMMET
$6.75¢3 375
1
#5
90387-065L7-00
COLLAR
$7.58¢3 789
1
#6
90119-06267-00
BOLT, WITH WASHER
$6.75¢3 375
1
#7
B7N-85542-00-00
BRACKET
$15.80¢7 900
1
#8
90201-06778-00
WASHER, PLATE
$4.02¢2 012
1
#9
90176-06065-00
NUT, CROWN
$7.58¢3 789
1
#10
95027-06045-00
BOLT, SMALL FLANGE
$2.71¢1 357
1
#11
95607-06100-00
NUT, U
$2.63¢1 317
1
#12
B7N-25871-00-00
PIPE, BRAKE
$14.06¢7 032
1
#13
B7N-25882-00-00
PIPE, BRAKE 2
$13.63¢6 814
1
#14
B7N-25885-00-00
JOINT
$61.12¢30 561
1
#15
92012-06035-00
BOLT, BUTTON HEAD
$1.89¢943
1
#16
B7N-85970-00-00
WHEEL SENSOR ASSY, FRONT
$132.12¢66 062
1
#17
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#18
90464-16003-00
CLAMP
$6.87¢3 433
1
#19
2CR-23317-00-00
HOLDER, CABLE
$9.88¢4 939
1
#20
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#21
90464-14013-00
CLAMP
$3.22¢1 610
1
#22
B7N-85980-00-00
WHEEL SENSOR ASSY, REAR
$130.49¢65 245
1
#23
92014-06014-00
BOLT, BUTTON HEAD
$2.90¢1 449
1
#24
90464-10233-00
CLAMP
$6.96¢3 479
1
