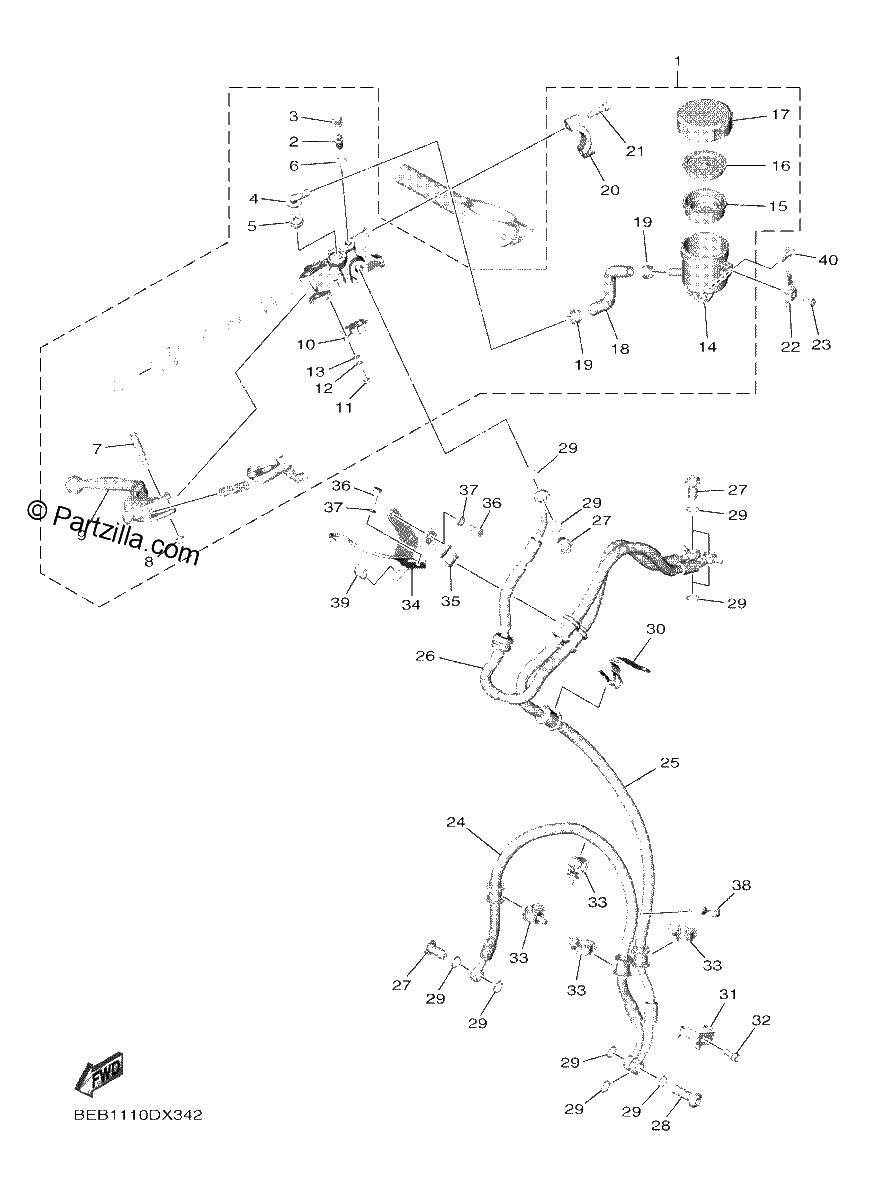

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER ASSY
$423.87¢211 933
#2
SCREW, BLEED
$8.26¢4 129
#3
CAP
$12.79¢6 394
#4
JOINT
$4.06¢2 030
#5
O-RING
$10.48¢5 238
#6
SEAL 1
$1.77¢886
#7
BOLT, LEVER
$6.88¢3 439
#8
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
#9
LEVER SET
$53.06¢26 531
#10
FRONT STOP SWITCH ASSY
$33.78¢16 888
#11
SCREW, PAN HEAD
No Disponible
#12
WASHER, SPRING
$0.68¢339
#13
WASHER, PLATE
$1.10¢552
#14
TANK, RESERVOIR
$36.20¢18 101
#15
DIAPHRAGM, RESERVOIR
$30.90¢15 450
#16
BUSH, DIAPHRAGM
$4.13¢2 064
#17
CAP, RESERVOIR
$17.39¢8 694
#18
HOSE, RESERVOIR
$6.36¢3 180
#19
CLIP
$6.43¢3 214
#20
BRACKET, MASTER CYLINDER
$34.79¢17 394
#21
BOLT
$4.30¢2 151
#22
HOLDER
$8.21¢4 105
#23
SCREW
$6.99¢3 496
#24
HOSE, BRAKE 1
$51.73¢25 863
#25
BRAKE HOSE ASSY
$77.69¢38 847
#26
HOSE, BRAKE
$67.45¢33 724
#27
BOLT, UNION
$4.06¢2 030
#28
BOLT, UNION
$17.45¢8 723
#29
GASKET
$7.72¢3 858
#30
HOLDER, BRAKE HOSE 1
$8.73¢4 364
#31
HOLDER, BRAKE HOSE
$8.46¢4 232
#32
BOLT, FLANGE DEEP RECESS
$1.01¢506
#33
CLAMP
$7.59¢3 795
#34
BRACKET
$29.01¢14 507
#35
BRACKET 2
$5.96¢2 978
#36
BOLT, HEXAGON
$6.75¢3 375
#37
WASHER, PLATE
$0.89¢443
#38
CLAMP
$1.68¢839
#39
CLAMP
$5.98¢2 990
#40
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
