CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

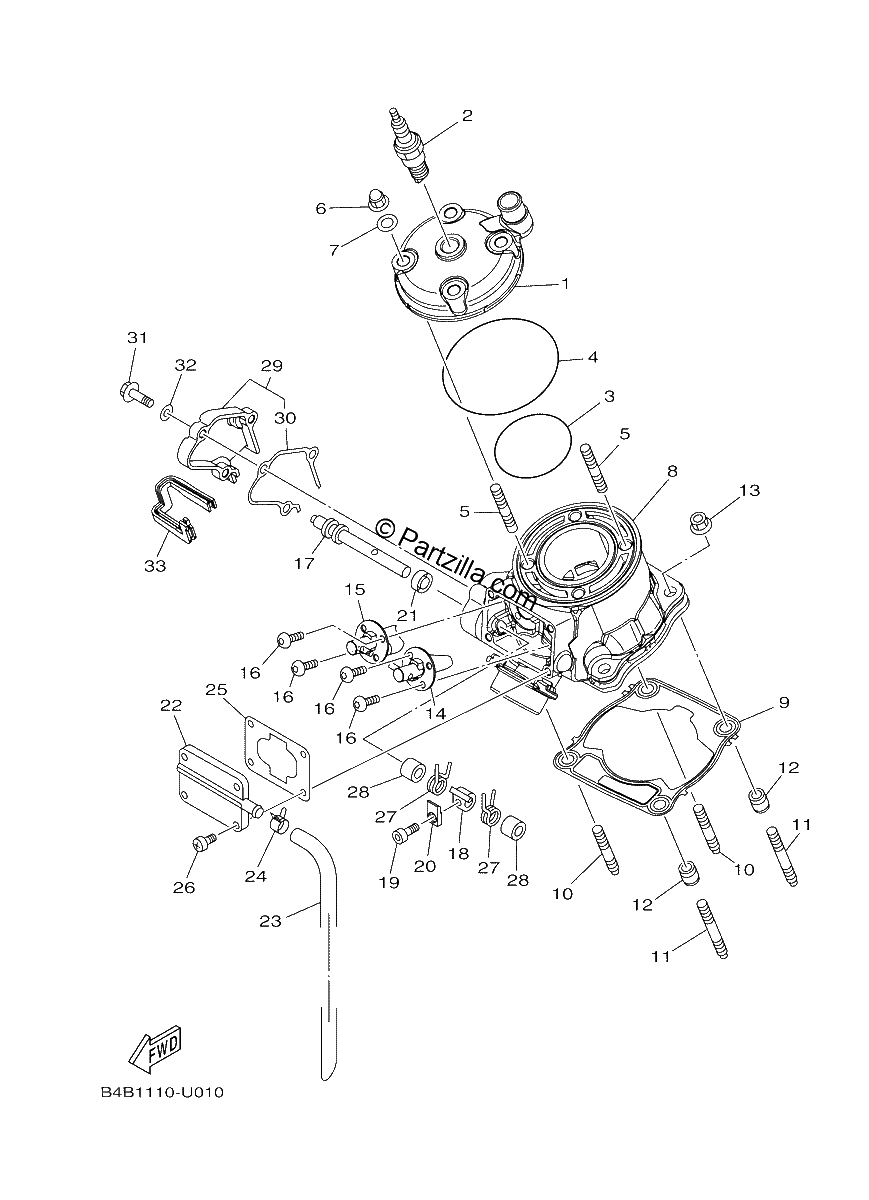

Diagrama de CYLINDER

Repuestos

#1
B4B-11111-00-00
HEAD, CYLINDER 1
$328.15¢164 075
1
#2
BR1-0EG00-00-00
BR10EG NGK SPLUG 4
$8.71¢4 356
1
#3
93210-56459-00
O-RING
$13.14¢6 569
1
#4
93210-84724-00
O-RING
$10.14¢5 069
1
#5
90116-08027-00
BOLT, STUD
$4.28¢2 138
1
#6
90176-08005-00
NUT, CROWN
$2.44¢1 219
1
#7
90201-080L8-00
WASHER, PLATE
$3.34¢1 669
1
#8
B4B-11311-00-00
CYLINDER 1
$1014.99¢507 494
1
#9
B4B-11351-00-00
Gasket, Cylinder
$7.03¢3 513
1
#10
90116-08031-00
BOLT, stud
$9.91¢4 956
1
#11
90116-08028-00
BOLT, stud
$8.09¢4 044
1
#12
99590-10114-00
PIN, DOWEL
$5.25¢2 625
1
#13
90179-08019-00
Nut
$6.23¢3 113
1
#14
B4B-1131D-00-00
VALVE ASSY
$364.79¢182 394
1
#15
B4B-1132D-00-00
VALVE ASSY 2
$304.34¢152 169
1
#16
90149-05001-00
SCREW,PAN HEAD(1RW This item has been discontinued and may not be available. Contact us for more information.
$6.67¢3 338
1
#17
5HD-1131V-00-00
SHAFT 1
$87.00¢43 500
1
#18
4SS-11832-00-00
LEVER, LINK
$80.38¢40 188
1
#19
91312-04010-00
BOLT, HEXAGON SOCKET HEAD
$8.22¢4 113
1
#20
5UN-11395-00-00
HOLDER
$53.90¢26 950
1
#21
93104-08040-00
OIL SEAL
$14.56¢7 281
1
#22
4SS-1131M-01-00
Cover
$91.25¢45 625
1
#23
4JY-11166-00-00
PIPE,BREATHER 1
$21.26¢10 631
1
#24
90467-13062-00
CLIP
$8.22¢4 113
1
#25
1C3-11354-00-00
Gasket
$5.22¢2 613
1
#26
98902-05016-00
SCREW, BIND
$1.46¢731
1
#27
90508-16134-00
Spring, Torsion
$5.90¢2 950
1
#28
90387-08785-00
Collar
$7.35¢3 675
1
#29
B4B-11991-00-00
HOUSING 1
$83.92¢41 963
1
#30
B4B-11993-00-00
Gasket
$5.80¢2 900
1
#31
97002-05020-00
BOLT
$2.95¢1 475
1
#32
92902-05600-00
WASHER, PLATE
$0.66¢331
1
#33
BR8-11995-00-00
SEAL, HOUSING
$14.94¢7 469
1
