REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

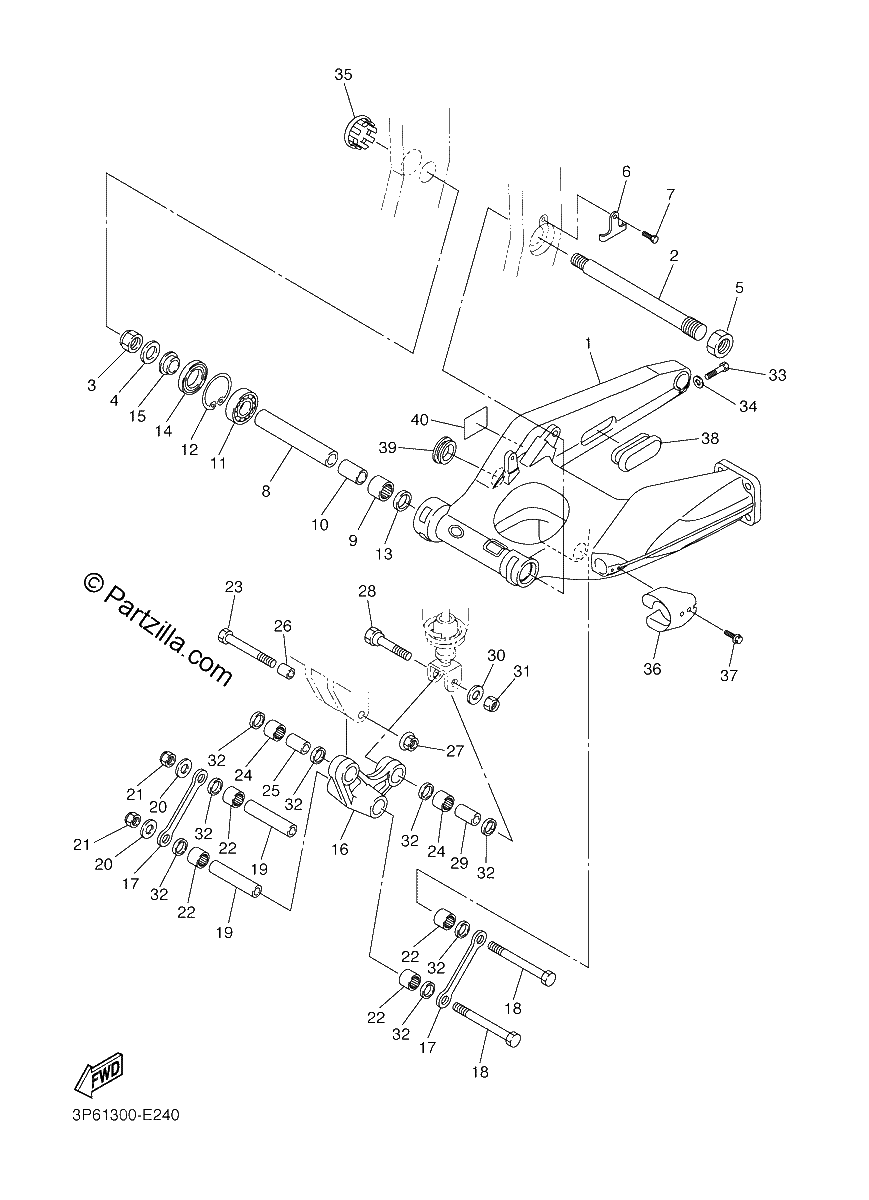

Diagrama de REAR ARM

Repuestos

#1
3P6-22110-11-00
REAR ARM COMP.
$1069.99¢534 994
1
#2
5JW-22141-00-00
SHAFT, PIVOT
$88.28¢44 138
1
#3
90185-18009-00
NUT, SELF-LOCKING
$18.90¢9 450
1
#4
90201-18020-00
WASHER, PLATE
$2.91¢1 456
1
#5
90170-28011-00
NUT
$15.74¢7 869
1
#6
5JW-22128-00-00
COVER, THRUST 1
$4.90¢2 450
1
#7
97022-06010-00
BOLT, HEXAGON
$3.11¢1 556
1
#8
90387-20011-00
COLLAR
$27.17¢13 587
1
#9
93317-42592-00
BEARING
$57.64¢28 819
1
#10
5JW-25383-00-00
COLLAR, WHEEL
$42.04¢21 019
1
#11
93306-30446-00
BEARING
$75.66¢37 831
1
#12
99009-52500-00
CIRCLIP
$12.79¢6 394
1
#13
93102-25270-00
OIL SEAL
$14.14¢7 069
1
#14
93102-28023-00
OIL SEAL
$17.49¢8 744
1
#15
90387-207V6-00
COLLAR
$15.29¢7 644
1
#16
5JW-2217A-00-00
ARM, RELAY
$352.36¢176 181
1
#17
3P6-2217M-00-00
ARM 1
$23.64¢11 819
1
#18
90101-10658-00
BOLT
$12.75¢6 375
1
#19
90387-122R5-00
COLLAR
$21.59¢10 794
1
#20
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#21
95612-10100-00
NUT, U
$7.35¢3 675
1
#22
93317-31771-00
BEARING
$37.88¢18 938
1
#23
90101-10011-00
BOLT
$11.95¢5 975
1
#24
93315-31759-00
BEARING
$39.89¢19 944
1
#25
90387-102R4-00
COLLAR
$15.58¢7 788
1
#26
90387-10009-00
COLLAR
$8.61¢4 306
1
#27
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#28
90109-10024-00
BOLT
$8.19¢4 094
1
#29
90387-127W0-00
COLLAR
$13.27¢6 637
1
#30
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#31
95612-10100-00
NUT, U
$7.35¢3 675
1
#32
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#33
97012-08040-00
BOLT
$6.26¢3 131
1
#34
92902-08600-00
WASHER, plate
$2.76¢1 381
1
#35
4BH-2219X-00-00
COVER
$56.99¢28 494
1
#36
5JW-2217H-01-00
COVER, DUST
$24.44¢12 219
1
#37
90119-05005-00
BOLT, WITH WASHER
$6.67¢3 338
1
#38
5JW-2219X-00-00
COVER
$14.38¢7 188
1
#39
90338-30267-00
PLUG
$5.10¢2 550
1
#40
B9R-21668-01-00
LABEL, TIRE
$19.11¢9 556
1
