FRONT MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

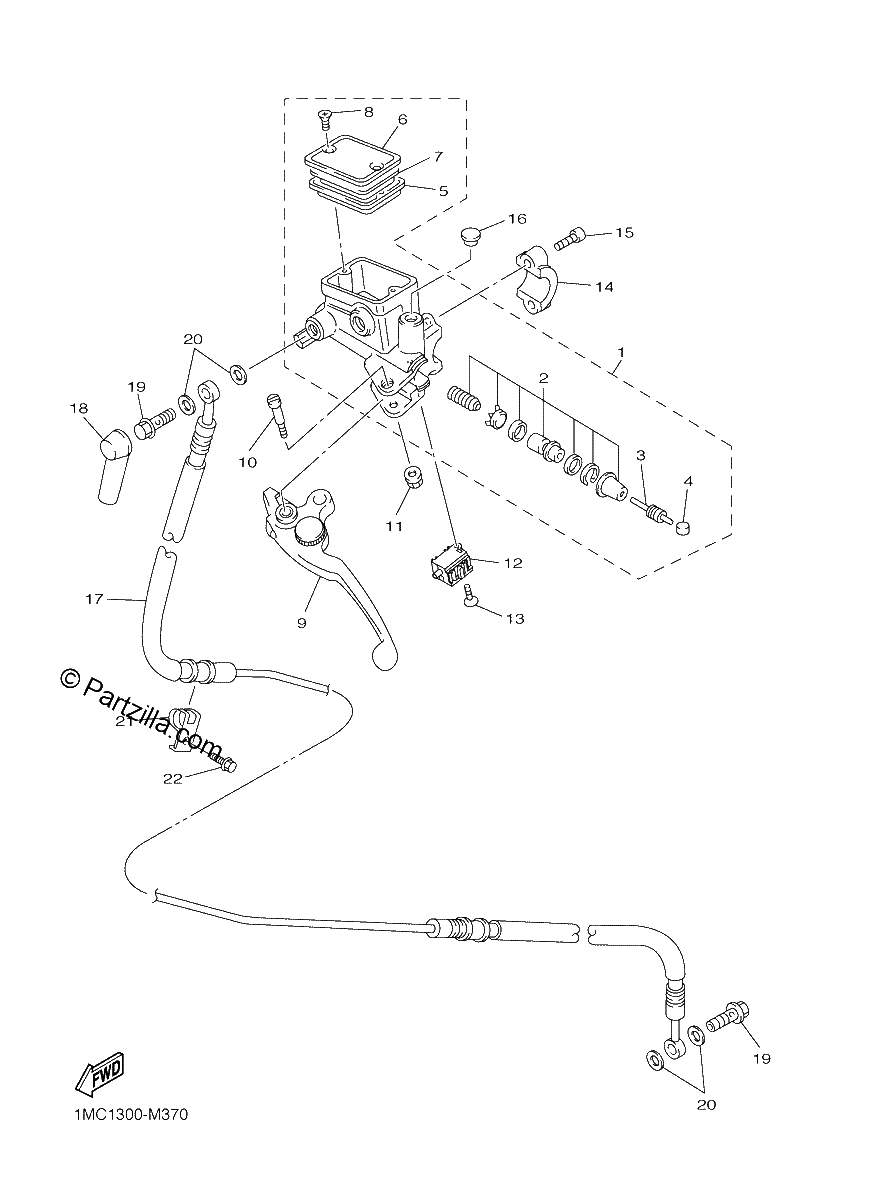

Diagrama de FRONT MASTER CYLINDER 2

Repuestos

#1
5JW-26401-01-00
MASTER CYLINDER SUB ASSY
$289.34¢144 669
1
#2
5JW-26402-00-00
CYLINDER KIT, MASTER (CLUTCH
$45.11¢22 556
1
#3
3GM-26464-00-00
ROD, PUSH
$18.90¢9 450
1
#4
3GM-26455-00-00
BUSH
$22.45¢11 225
1
#5
4HM-25854-00-00
DIAPHRAGM, RESERVOIR
$37.17¢18 588
1
#6
4HM-25852-01-00
CAP, RESERVOIR
$20.04¢10 019
1
#7
3GM-2585B-10-00
PLATE, DIAPHRAGM
$12.48¢6 238
1
#8
98707-04012-00
SCREW, FLAT HEAD
$1.71¢856
1
#9
5EA-83912-00-00
LEVER 1
$99.29¢49 644
1
#10
3FV-2589F-00-00
BOLT, LEVER
$15.15¢7 575
1
#11
95707-06500-00
NUT, FLANGE
$0.94¢469
1
#12
1MC-82917-02-00
. SWITCH
$163.39¢81 694
1
#13
90159-04011-00
SCREW, WITH WASHER
$3.89¢1 944
1
#14
4KG-25867-00-00
BRACKET, MASTER CYLINDER
$18.38¢9 188
1
#15
91316-06020-00
bolt
$2.60¢1 300
1
#16
90338-09012-00
PLUG
$8.64¢4 319
1
#17
5P5-26470-00-00
HOSE, CLUTCH
$128.34¢64 169
1
#18
4L0-25862-01-00
BOOT, MASTER CYLINDER
$7.60¢3 800
1
#19
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#20
90201-10118-00
WASHER, PLATE
$3.44¢1 719
1
#21
1MC-21823-00-00
CLAMP, HOSE
$4.81¢2 406
1
#22
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
