CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

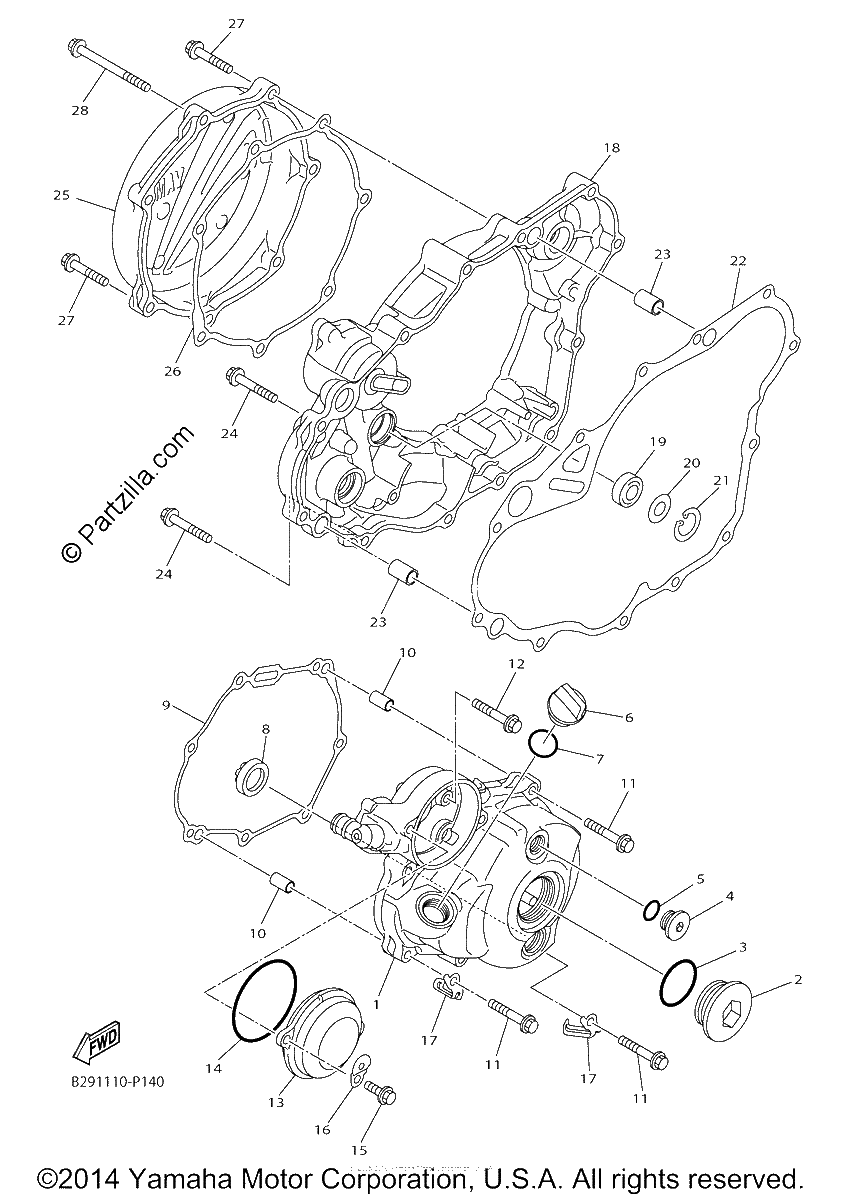

Diagrama de CRANKCASE COVER 1

Repuestos

#1
2GB-15411-00-00
COVER, CRANKCASE 1
$211.97¢105 984
1
#2
90340-36002-00
PLUG, STRAIGHT SCREW
$14.66¢7 331
1
#3
93210-357A3-00
O-RING
$0.54¢270
1
#4
90340-14011-00
PLUG, STRAIGHT SCREW
$21.61¢10 804
1
#5
93210-14369-00
O-Ring
$6.36¢3 180
1
#6
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#7
93210-19123-00
O-Ring
$7.58¢3 789
1
#8
3KM-15361-00-00
GAUGE, LEVEL
No Disponible
1
#9
1SM-15451-00-00
GASKET, CRANKCASE COVER 1
$22.16¢11 080
1
#10
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#11
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#12
95022-06020-00
BOLT, FLANGE
$3.65¢1 823
1
#13
5TJ-1549B-30-00
COVER ASSY 2
$93.41¢46 707
1
#14
93210-58346-00
O-RING
$9.91¢4 956
1
#15
95022-06014-00
BOLT, FLANGE
$2.89¢1 443
1
#16
2GB-15199-00-00
BRACKET
$4.57¢2 283
1
#17
90465-08062-00
CLAMP
$4.05¢2 024
1
#18
1SM-15431-00-00
COVER, CRANKCASE 3
$155.38¢77 688
1
#19
93101-14164-00
OIL SEAL
$10.63¢5 313
1
#20
90201-15701-00
WASHER, PLATE (T=1.0)
$6.75¢3 375
1
#21
99009-22500-00
CIRCLIP
$6.76¢3 381
1
#22
1SM-15462-00-00
GASKET, CRANKCASE COVER 3
$24.18¢12 092
1
#23
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#24
90105-06102-00
BOLT, FLANGE
$3.58¢1 788
1
#25
1SM-15415-00-00
COVER, 1
$182.15¢91 074
1
#26
1SM-15453-00-00
GASKET
$11.30¢5 652
1
#27
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#28
95022-06060-00
BOLT, FLANGE
$6.87¢3 433
1
