STARTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

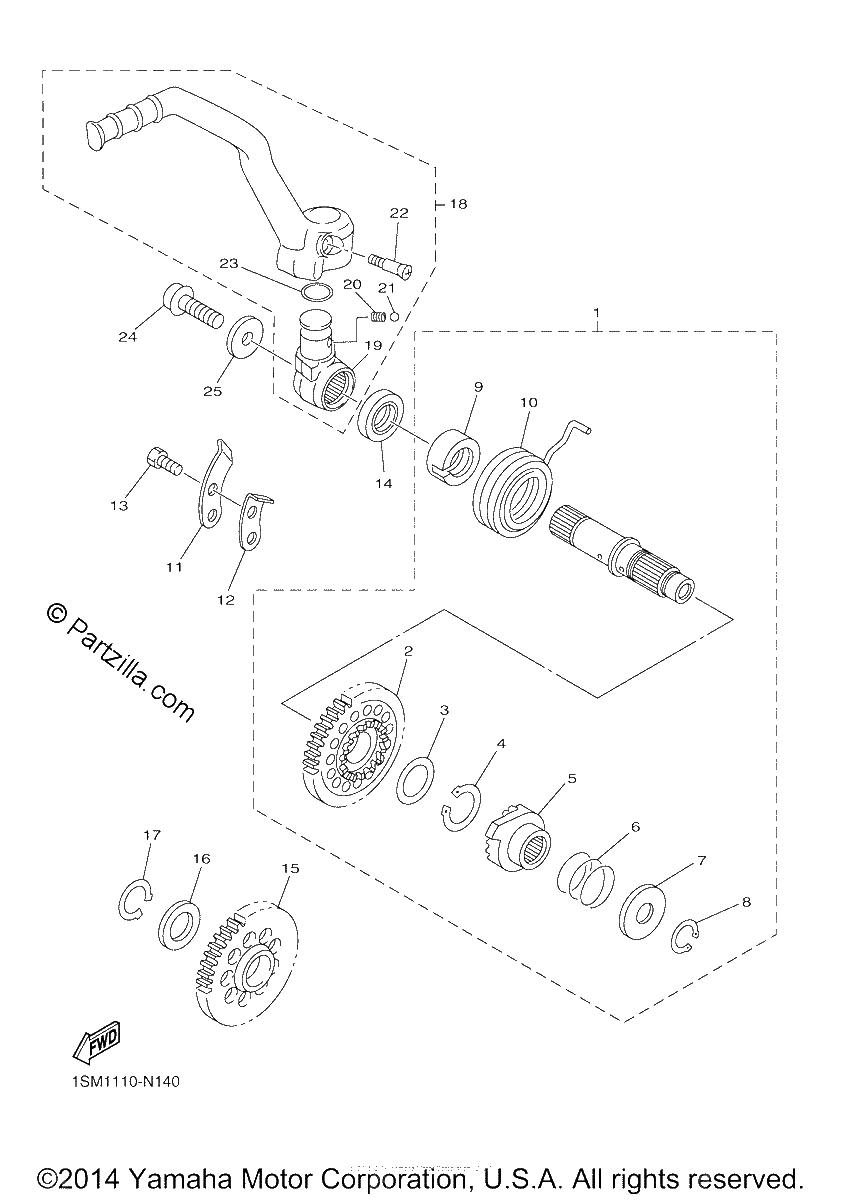

Diagrama de STARTER

Repuestos

#1
1SM-15601-00-00
KICK SHAFT ASSY
$231.50¢115 748
1
#2
1SM-15641-00-00
GEAR, KICK
$82.16¢41 078
1
#3
90201-20685-00
WASHER,PLATE
$6.45¢3 226
1
#4
93410-20038-00
CIRCLIP
$2.86¢1 432
1
#5
2S2-15671-00-00
WHEEL, RATCHET
$61.70¢30 849
1
#6
90501-160A2-00
Spring, Compression
$4.05¢2 024
1
#7
90201-167P7-00
WASHER, plate
$9.20¢4 600
1
#8
99009-16400-00
CIRCLIP,S-TYPE
$5.65¢2 823
1
#9
5NL-15664-00-00
Guide, Spring
$13.40¢6 699
1
#10
90508-30743-00
SPRING,TORSION
$18.26¢9 131
1
#11
2NX-15674-00-00
GUIDE,RATCHET WHL (replaces 214-15674-00-00)
$9.87¢4 934
1
#12
2NX-15668-00-00
Stopper
$22.94¢11 471
1
#13
97095-06016-00
BOLT
$2.08¢1 041
1
#14
93102-18278-00
OIL SEAL,SD-TYPE
$11.43¢5 716
1
#15
1SM-15651-00-00
GEAR, KICK IDLE
$68.45¢34 224
1
#16
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#17
99009-17400-00
Circlip
$4.28¢2 139
1
#18
1SM-15620-00-00
Kick Crank Assy
$239.67¢119 836
1
#19
1SM-15621-00-00
BOSS, KICK CRANK
$72.42¢36 208
1
#20
90501-147A5-00
Spring, Compression
$6.75¢3 375
1
#21
93507-32031-00
BALL
$4.28¢2 139
1
#22
90151-06045-00
SCREW, COUNTERSUNK
$6.75¢3 375
1
#23
93210-17570-00
O-Ring
$6.43¢3 214
1
#24
90110-08052-00
BOLT, HEXAGON SOCKET HEAD (replaces 90110-08051-00)
$6.87¢3 433
1
#25
90201-08048-00
WASHER, PLATE
$6.30¢3 151
1
