ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

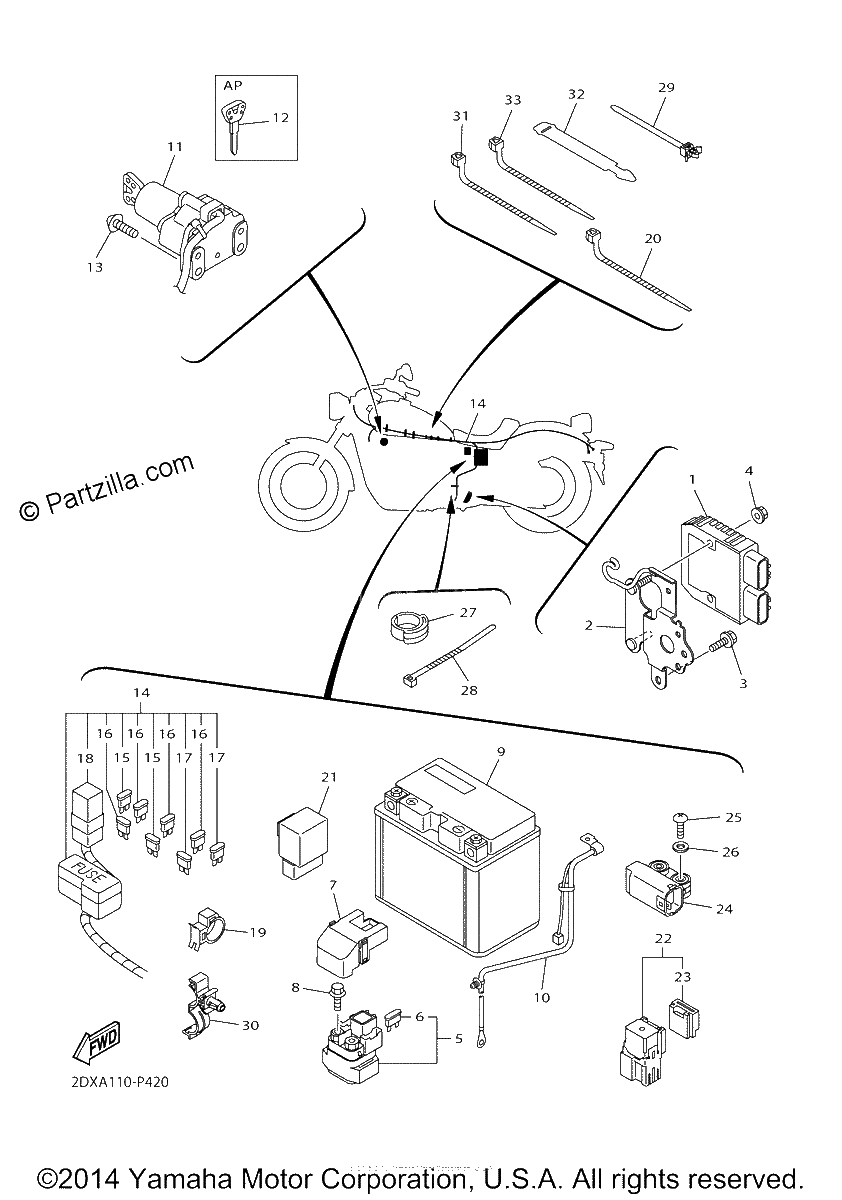

Diagrama de ELECTRICAL 2

Repuestos

#1
1D7-81960-01-00
RECTIFIER REGULATOR ASSY
$335.25¢167 625
1
#2
1TP-2128A-00-00
BRACKET, REGULATOR
$37.24¢18 619
1
#3
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#4
95707-06500-00
NUT, FLANGE
$0.94¢469
1
#5
5S7-81940-00-00
STARTER RELAY ASSY (RC19-089A)
$118.21¢59 106
1
#6
42X-82151-00-00
FUSE (10A-BL)
$2.64¢1 319
1
#7
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#8
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#9
YTZ-14S00-00-00
YTZ14S YUASA BATTER (replaces 2D1-82100-00-00)
$339.44¢169 719
1
#10
1TP-82116-00-00
WIRE, MINUS LEAD
$36.04¢18 019
1
#11
1TP-82510-00-00
MAIN SWITCH ASSY
$162.69¢81 344
1
#12
4BH-82511-09-00
BLANK KEY | AP
$29.11¢14 556
1
#13
90149-06188-00
SCREW
$7.72¢3 863
1
#14
1TP-82590-02-00
WIRE HARNESS ASSY
$1124.71¢562 356
1
#15
67F-82151-50-00
FUSE (15A)
$4.44¢2 219
1
#16
5JJ-82151-00-00
FUSE (7.5A-BL)
$7.08¢3 538
1
#17
5JJ-82151-20-00
FUSE (20A-BL)
$7.63¢3 813
1
#18
JR9-82151-00-00
SLOW BLOW FUSE
$11.46¢5 731
1
#19
90464-20191-00
Clamp
$8.76¢4 381
1
#20
1UA-82591-00-00
BAND
$4.91¢2 456
1
#21
5VK-81950-30-00
RELAY ASSY (5VK-30)
$63.94¢31 969
1
#22
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#23
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#24
5VU-82576-01-00
SENSOR, LEAN ANGLE
$102.81¢51 406
1
#25
90160-04009-00
SCREW, ROUND TAPPING
$6.40¢3 200
1
#26
90201-04030-00
WASHER, PLATE
$1.80¢900
1
#27
90464-13227-00
Clamp
$7.88¢3 938
1
#28
90464-36005-00
CLAMP
$1.20¢600
1
#29
90464-14006-00
CLAMP
$5.25¢2 625
1
#30
90464-16012-00
Clamp
$6.45¢3 225
1
#31
90464-15195-00
CLAMP
$3.30¢1 650
1
#32
1TP-82591-00-00
BAND
$4.15¢2 075
1
#33
90464-15195-00
CLAMP
$3.30¢1 650
1
