FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

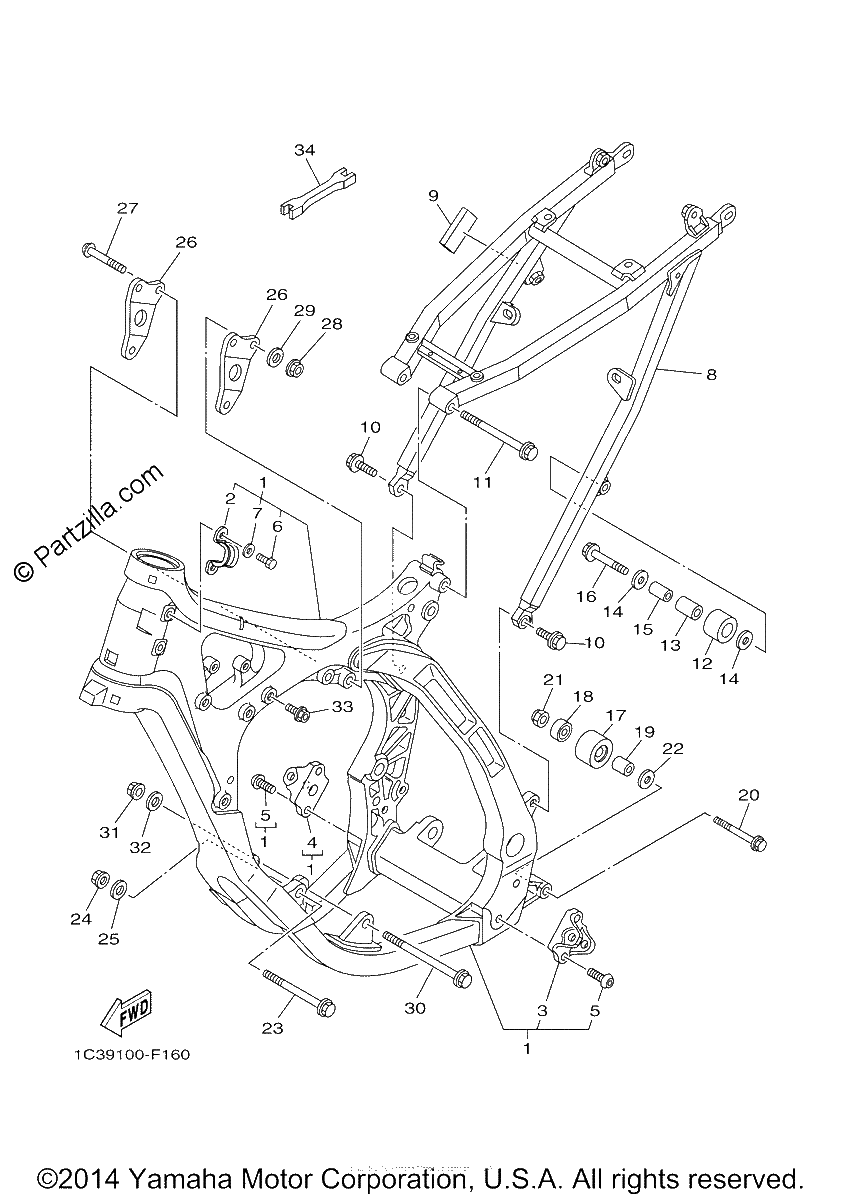

Diagrama de FRAME

Repuestos

#1
1C3-21101-50-00
FRONT FRAME COMP.
$2544.99¢1 272 494
1
#2
1C3-21336-00-00
CLAMP, WIRE HARNESS 2
$10.49¢5 244
1
#3
1C3-21447-10-00
BRACKET, FOOTREST
$38.63¢19 313
1
#4
1C3-21448-10-00
BRACKET, FOOTREST
$38.63¢19 313
1
#5
90149-10033-00
SCREW
$6.49¢3 244
1
#6
97017-05012-00
BOLT
$7.34¢3 669
1
#7
92904-05600-00
WASHER
$0.66¢331
1
#8
1SS-21190-00-00
REAR FRAME COMP.
No Disponible
1
#9
5GJ-21717-00-00
DAMPER
$5.88¢2 938
1
#10
90105-08085-00
BOLT, FLANGE
$6.03¢3 013
1
#11
90105-08132-00
BOLT, FLANGE
$4.59¢2 294
1
#12
30X-22178-00-00
TENSIONER
$37.55¢18 775
1
#13
4V4-22184-00-00
BUSH
$4.24¢2 119
1
#14
90201-08045-00
WASHER, PLATE
$5.66¢2 831
1
#15
90387-08041-00
COLLAR
$8.03¢4 013
1
#16
95024-08040-00
Bolt, Flange
$7.34¢3 669
1
#17
3JD-22178-20-00
TENSIONER
$46.22¢23 112
1
#18
93300-60839-00
BEARING
$13.31¢6 656
1
#19
90387-086N4-00
COLLAR
$9.91¢4 956
1
#20
90105-08133-00
Bolt, Flange
$5.36¢2 681
1
#21
90185-08009-00
NUT, SELF-LOCKING
$8.09¢4 044
1
#22
90201-08043-00
WASHER, plate
$6.88¢3 438
1
#23
90105-10175-00
BOLT, FLANGE
$10.34¢5 169
1
#24
95704-10500-00
NUT, FLANGE
$2.10¢1 050
1
#25
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.41¢1 706
1
#26
1C3-21425-00-00
BRACKET, REAR UPPER 1
$41.17¢20 588
1
#27
90111-08028-00
BOLT, HEX. SOCKET BUTTON
$5.95¢2 975
1
#28
90179-08674-00
NUT(4KM)
$6.78¢3 388
1
#29
90201-08055-00
WASHER, PLATE
$7.35¢3 675
1
#30
90105-10176-00
BOLT, FLANGE
$11.43¢5 713
1
#31
95704-10500-00
NUT, FLANGE
$2.10¢1 050
1
#32
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.41¢1 706
1
#33
1C3-21244-20-00
NUT
$17.46¢8 731
1
#34
5ET-28166-10-00
WRENCH, HEXAGON
$34.86¢17 431
1
