STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

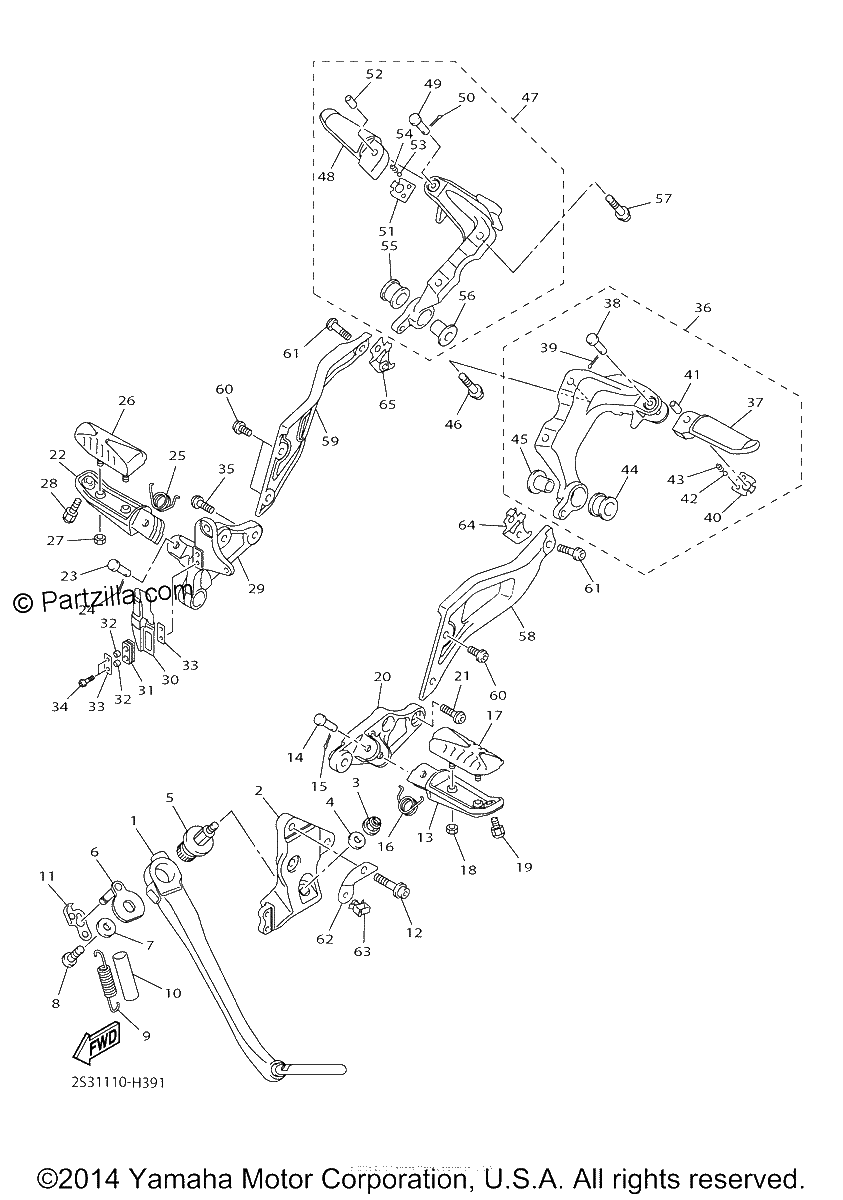

Diagrama de STAND FOOTREST

Repuestos

#1
2S3-27311-00-00
STAND, SIDE
$341.00¢170 500
1
#2
2S3-27321-00-00
BRACKET, side stand
$403.61¢201 806
1
#3
90185-10170-00
NUT,SELF-LOCKING (replaces 95604-10200-00)
$9.51¢4 756
1
#4
90201-101J1-00
WASHER, PLATE
$7.34¢3 669
1
#5
2S3-27351-00-00
GUIDE, SIDE STAND
$82.05¢41 025
1
#6
2S3-27352-00-00
HOOK, SIDE STAND
$52.42¢26 213
1
#7
90201-081R9-00
WASHER, PLATE 8AT (replaces 90201-08753-00)
$7.52¢3 762
1
#8
90111-08029-00
BOLT (replaces 90111-08064-00)
$7.49¢3 744
1
#9
2S3-27116-00-00
SPRING, MAIN STAND
$17.95¢8 975
1
#10
90445-197J2-00
HOSE (L60)
$4.68¢2 338
1
#11
2S3-27315-00-00
LINK, SIDE STAND
$14.52¢7 262
1
#12
90110-08090-00
BOLT, HEXAGON SOCKET (replaces 90110-08089-00)
$3.83¢1 913
1
#13
2S3-27451-00-00
Footrest
$75.21¢37 606
1
#14
91701-08040-00
PIN
$4.84¢2 419
1
#15
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#16
90508-20572-00
SPRING, TORSION
$7.94¢3 969
1
#17
2S3-27413-00-00
COVER, FOOTREST
$32.86¢16 431
1
#18
95604-05100-00
Nut, U
$1.10¢550
1
#19
2S3-27317-10-00
BOLT (replaces 2S3-27317-00-00)
$16.88¢8 438
1
#20
2S3-27442-01-00
BRACKET 2
$129.75¢64 875
1
#21
90109-085G6-00
BOLT
$2.26¢1 131
1
#22
2S3-27461-00-00
Footrest
$80.25¢40 125
1
#23
91701-08040-00
PIN
$4.84¢2 419
1
#24
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#25
90508-20572-00
SPRING, TORSION
$7.94¢3 969
1
#26
2S3-27413-00-00
COVER, FOOTREST
$32.86¢16 431
1
#27
95604-05100-00
Nut, U
$1.10¢550
1
#28
2S3-27317-10-00
BOLT (replaces 2S3-27317-00-00)
$16.88¢8 438
1
#29
2S3-27443-01-00
BRACKET 3
No Disponible
1
#30
2S3-2144G-00-00
STAY, STOP SWITCH
$37.16¢18 581
1
#31
2S3-28187-00-00
Grommet
$4.86¢2 431
1
#32
90387-05046-00
Collar
$4.90¢2 450
1
#33
2S3-27415-00-00
PLATE, FOOTREST
$5.10¢2 550
1
#34
92014-05020-00
BOLT, BUTTON HEAD
$7.34¢3 669
1
#35
90109-085G6-00
BOLT
$2.26¢1 131
1
#36
2S3-27430-00-00
REAR FOOTREST ASSY 1
$416.57¢208 288
1
#37
5JJ-27431-10-00
FOOTREST, REAR 1
$85.08¢42 538
1
#38
91701-06032-00
PIN
$8.16¢4 081
1
#39
93501-04011-00
BALL
$7.46¢3 731
1
#39
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#40
5JJ-27437-01-00
WASHER, special
$7.03¢3 513
1
#41
90387-06697-00
Collar
$15.88¢7 938
1
#42
93501-04011-00
BALL
$7.46¢3 731
1
#43
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#44
4XV-27424-00-00
DAMPER, FOOTREST 2
$15.15¢7 575
1
#45
90387-08005-00
Collar
$16.27¢8 137
1
#46
90110-08199-00
BOLT, HEXAGON
$6.70¢3 350
1
#47
2S3-27440-00-00
REAR FOOTREST ASSY 2
$339.01¢169 506
1
#48
5JJ-27441-10-00
FOOTREST, REAR 2
$75.61¢37 806
1
#49
91701-06032-00
PIN
$8.16¢4 081
1
#50
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#51
5JJ-27437-01-00
WASHER, special
$7.03¢3 513
1
#52
90387-06697-00
Collar
$15.88¢7 938
1
#54
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#55
4XV-27424-00-00
DAMPER, FOOTREST 2
$15.15¢7 575
1
#56
90387-08005-00
Collar
$16.27¢8 137
1
#57
90110-08199-00
BOLT, HEXAGON
$6.70¢3 350
1
#58
2S3-27445-00-00
PLATE 1
$22.57¢11 288
1
#59
2S3-27446-00-00
PLATE 2
$22.57¢11 288
1
#60
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#61
90149-06302-00
SCREW
$5.11¢2 556
1
#62
2S3-2787A-00-00
BRACKET 1
$12.09¢6 044
1
#63
90464-16021-00
CLAMP
$13.38¢6 688
1
#64
2S3-2172K-00-00
BRACKET 1
$9.53¢4 763
1
#65
2S3-2172L-00-00
BRACKET 2
$9.26¢4 631
1
