FRONT MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

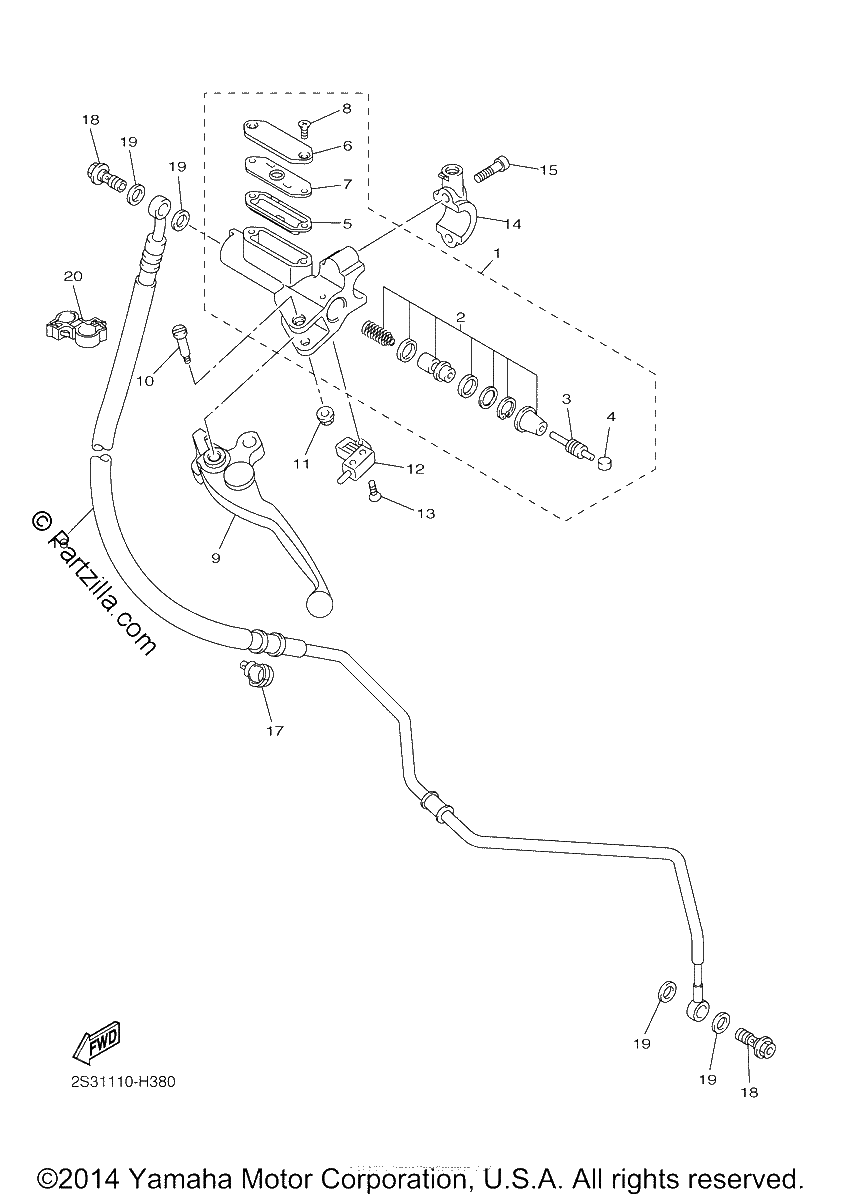

Diagrama de FRONT MASTER CYLINDER 2

Repuestos

#1
2S3-W2645-00-00
MASTER CYLINDER SUB ASSY
$271.77¢135 884
1
#2
5JW-W0099-00-00
CYLINDER KIT, MASTER (CLUTCH
$50.07¢25 036
1
#3
3GM-26464-00-00
ROD, PUSH
$17.39¢8 694
1
#4
3GM-26455-00-00
BUSH
$20.65¢10 327
1
#5
5YU-25854-50-00
DIAPHRAGM, RESERVOIR
$11.07¢5 537
1
#6
5YU-25852-50-00
CAP, RESERVOIR
$33.00¢16 502
1
#7
5YU-25855-50-00
BUSH, DIAPHRAGM
$9.61¢4 807
1
#8
98707-04012-00
SCREW, FLAT HEAD
$1.58¢788
1
#9
5YU-83912-11-00
LEVER 1
$112.94¢56 471
1
#10
3FV-2589F-00-00
BOLT, LEVER
$13.94¢6 969
1
#11
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#12
3GM-83980-00-00
SWITCH
$50.84¢25 421
1
#13
98707-04016-00
SCREW, FLAT HEAD
$6.76¢3 381
1
#14
2S3-26393-00-00
HOLDER
$37.70¢18 848
1
#15
5VS-26332-00-00
BOLT
$4.30¢2 151
1
#16
2S3-26470-00-00
HOSE, CLUTCH
$142.29¢71 145
1
#17
90464-18002-00
CLAMP
$7.59¢3 795
1
#18
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#19
90430-10005-00
GASKET
$7.72¢3 858
1
#20
90464-16015-00
CLAMP
$4.62¢2 311
1
