FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

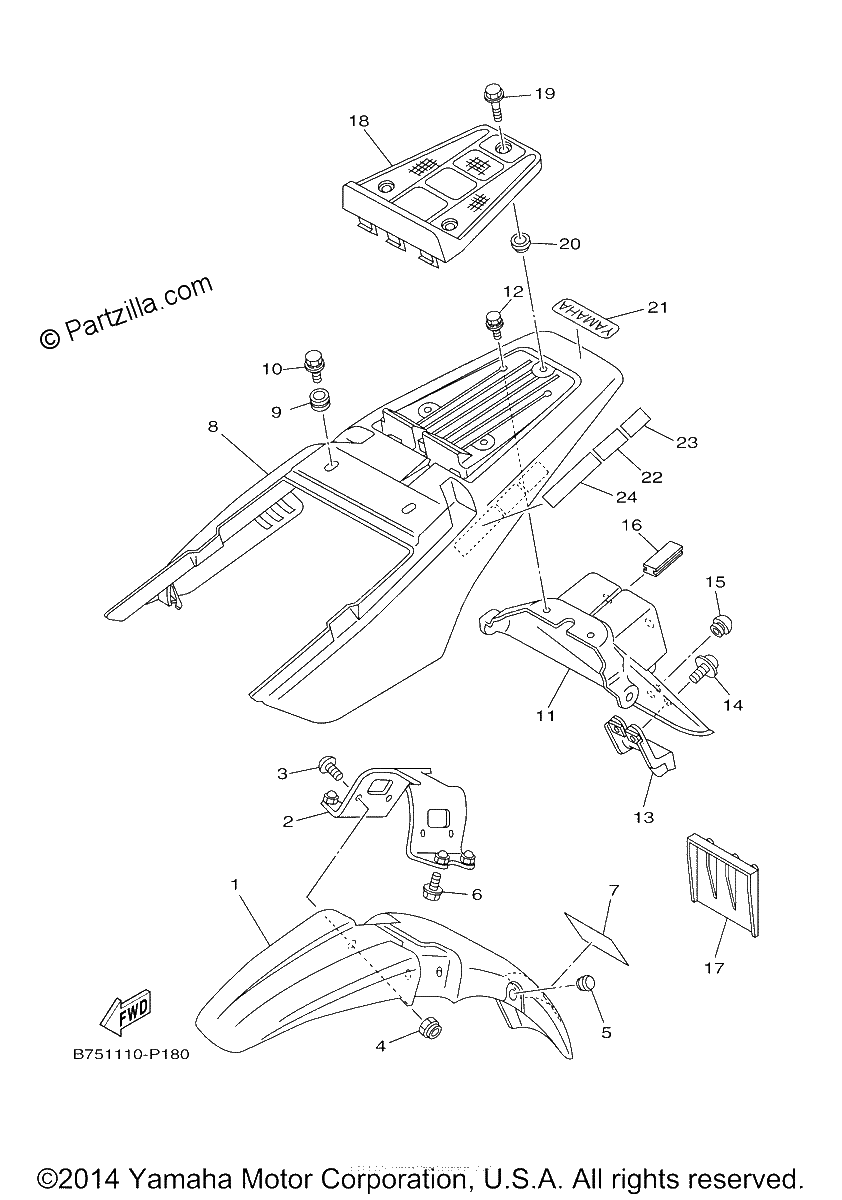

Diagrama de FENDER

Repuestos

#1
3AW-21511-20-00
FENDER, FRONT
$87.02¢43 510
1
#2
2JX-21512-00-00
BRACKET, FENDER
$64.38¢32 188
1
#3
90154-05004-00
SCREW, BINDING
$3.54¢1 771
1
#4
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#5
90338-12192-00
PLUG
$6.76¢3 381
1
#6
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#7
10D-21668-00-00
LABEL, TIRE
$7.15¢3 577
1
#8
3AW-21611-20-00
FENDER, REAR
$155.56¢77 780
1
#9
90480-12053-00
GROMMET
$6.32¢3 162
1
#10
90119-06201-00
BOLT, WITH WASHER
$5.78¢2 892
1
#11
2JX-21685-00-00
BRACKET, LICENSE
$65.61¢32 804
1
#12
90119-06152-00
BOLT, WITH WASHER
$3.00¢1 501
1
#13
2JX-21641-00-00
BRACKET, REFLECTOR
$37.81¢18 906
1
#14
90159-05121-00
SCREW, WITH WASHER
$2.63¢1 317
1
#15
4G0-21639-00-00
DAMPER 2
$6.36¢3 180
1
#16
2JX-21669-00-00
SEAL
$8.73¢4 364
1
#17
5VC-21691-00-00
FLAP
$14.58¢7 291
1
#18
2JX-21651-10-00
COVER, REAR FENDER
$70.72¢35 363
1
#19
95024-06014-00
BOLT, FLG.(SMALL HEAD)
$3.40¢1 702
1
#20
90387-06681-00
COLLAR
$7.24¢3 622
1
#21
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
#22
3MX-24875-A0-00
LABEL 1 | ENGLISH
$3.29¢1 644
1
#23
3TB-24877-A0-00
LABEL, CAUTION
$4.90¢2 449
1
#24
3JJ-28446-A1-00
LABEL, CAUTION
$4.54¢2 271
1
