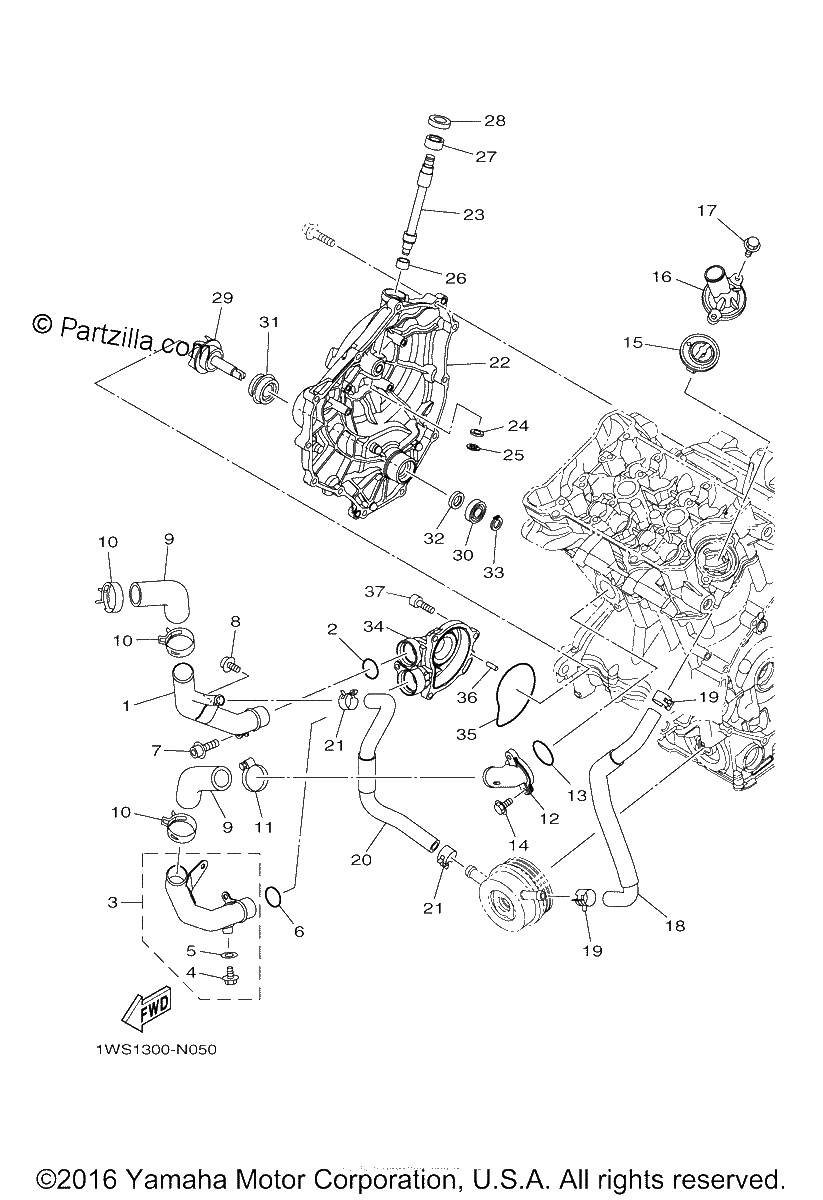

WATER PUMP
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PIPE 1
$75.89¢37 944
#2
O-RING
$6.30¢3 151
#3
PIPE 2
$86.31¢43 154
#4
BOLT, FLANGE
$5.97¢2 984
#5
GASKET
$7.59¢3 795
#6
O-RING
$6.30¢3 151
#7
BOLT, HEXAGON SOCKET HEAD
$3.86¢1 932
#8
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
#9
HOSE 1
$9.07¢4 537
#10
CLIP
$16.09¢8 044
#11
HOSE CLAMP ASSY
$5.76¢2 881
#12
JOINT 1
$33.80¢16 899
#13
O-RING
$5.30¢2 651
#14
BOLT, FLANGE
$3.05¢1 524
#15
THERMOSTAT ASSY
$36.86¢18 429
#16
COVER, THERMOSTAT
$48.58¢24 288
#17
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
#18
HOSE 5
$53.06¢26 531
#19
CLIP
$2.51¢1 254
#20
HOSE 6
$29.76¢14 881
#21
CLIP
$2.51¢1 254
#22
COVER, CRANKCASE 2
$165.30¢82 651
#23
AXLE, PUSH LEVER
$80.04¢40 020
#24
WASHER, PLATE
$2.75¢1 374
#25
CIRCLIP
$3.31¢1 656
#26
BEARING
$21.90¢10 948
#27
BEARING
$16.09¢8 044
#28
OIL SEAL
$8.03¢4 013
#29
IMPELLER SHAFT ASSY
$33.06¢16 531
#30
BEARING
$27.84¢13 921
#31
SEAL, MECHANICAL
$58.28¢29 141
#32
OIL SEAL
$12.39¢6 193
#33
CIRCLIP
$3.37¢1 685
#34
COVER, HOUSING
$66.99¢33 494
#35
O-RING
$7.38¢3 691
#36
PIN, DOWEL
$1.81¢903
#37
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
