FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

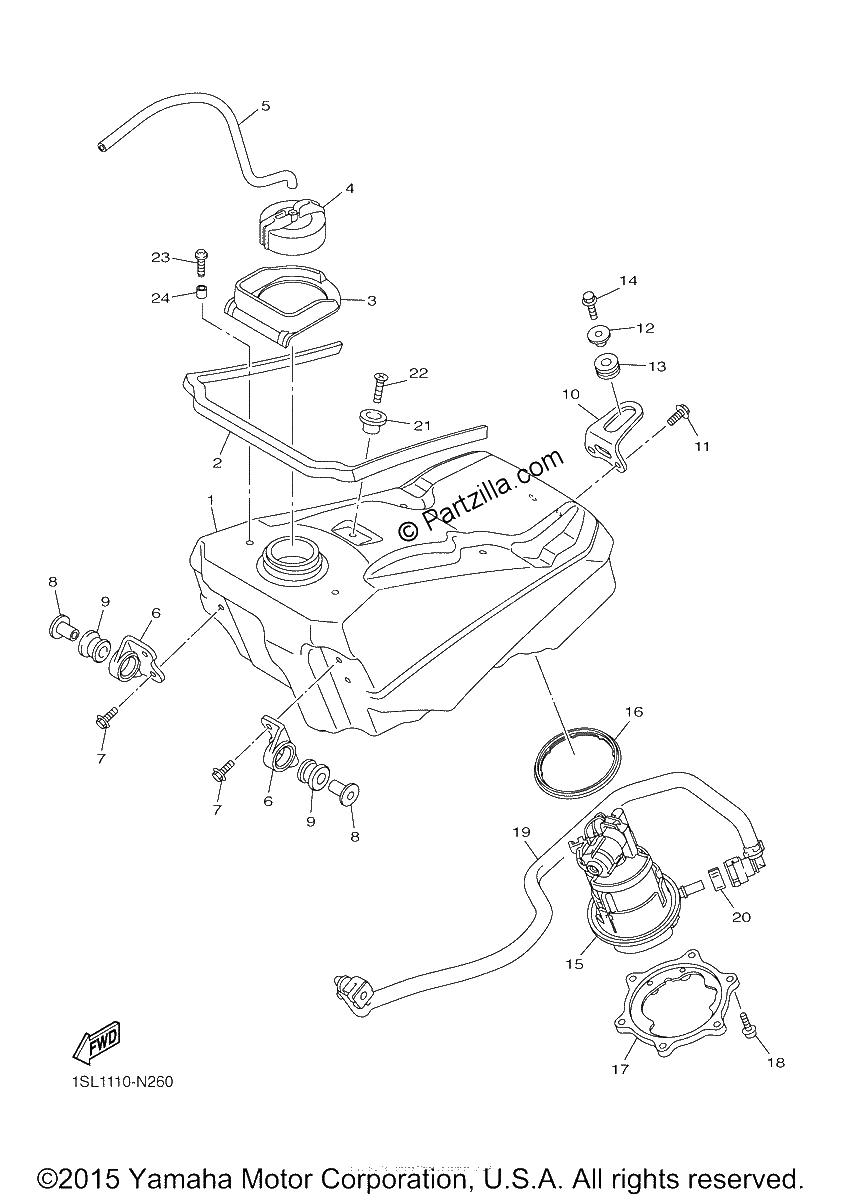

Diagrama de FUEL TANK

Repuestos

#1
1SL-24110-00-00
FUEL TANK COMP.
$716.17¢358 087
1
#2
1S4-2414J-00-00
DAMPER, PLATE 2
$2.89¢1 443
1
#3
1SL-24188-00-00
MOLD, FUEL TANK
$32.36¢16 180
1
#4
1SL-24610-01-00
CAP ASSY
$66.16¢33 080
1
#5
90445-098B3-00
HOSE (L580) (replaces 90445-09008-00)
$11.73¢5 865
1
#6
1SL-24115-00-00
STAY, FUEL TANK 1
$22.69¢11 345
1
#7
90105-06170-00
BOLT, FLANGE
$4.65¢2 323
1
#8
90387-06091-00
COLLAR
$6.82¢3 410
1
#9
90480-18549-00
Grommet
$9.66¢4 830
1
#10
1SL-2419A-00-00
HOLDER
$4.74¢2 369
1
#11
90105-06170-00
BOLT, FLANGE
$4.65¢2 323
1
#12
90387-066Y6-00
COLLAR
$7.65¢3 824
1
#13
90480-10289-00
GROMMET
$7.07¢3 536
1
#14
95022-06020-00
BOLT, FLANGE
$3.65¢1 823
1
#15
33D-13907-00-00
FUEL PUMP COMP.
$523.16¢261 579
1
#16
33D-24486-00-00
O-Ring
$31.31¢15 657
1
#17
33D-24491-00-00
Bracket, Fuel Pump
$75.67¢37 835
1
#18
90110-05058-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#19
1SL-13971-01-00
PIPE, FUEL 1 (replaces 1SL-13971-00-00)
$141.89¢70 943
1
#20
33D-24135-00-00
CLAMP 1
$9.56¢4 778
1
#21
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$13.91¢6 958
1
#22
98707-06025-00
SCREW,FLAT
$6.76¢3 381
1
#23
90111-06149-00
BOLT,HEX. SOCKET BUTTON
$1.94¢972
1
#24
90387-06284-00
Collar
$5.58¢2 789
1
