CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

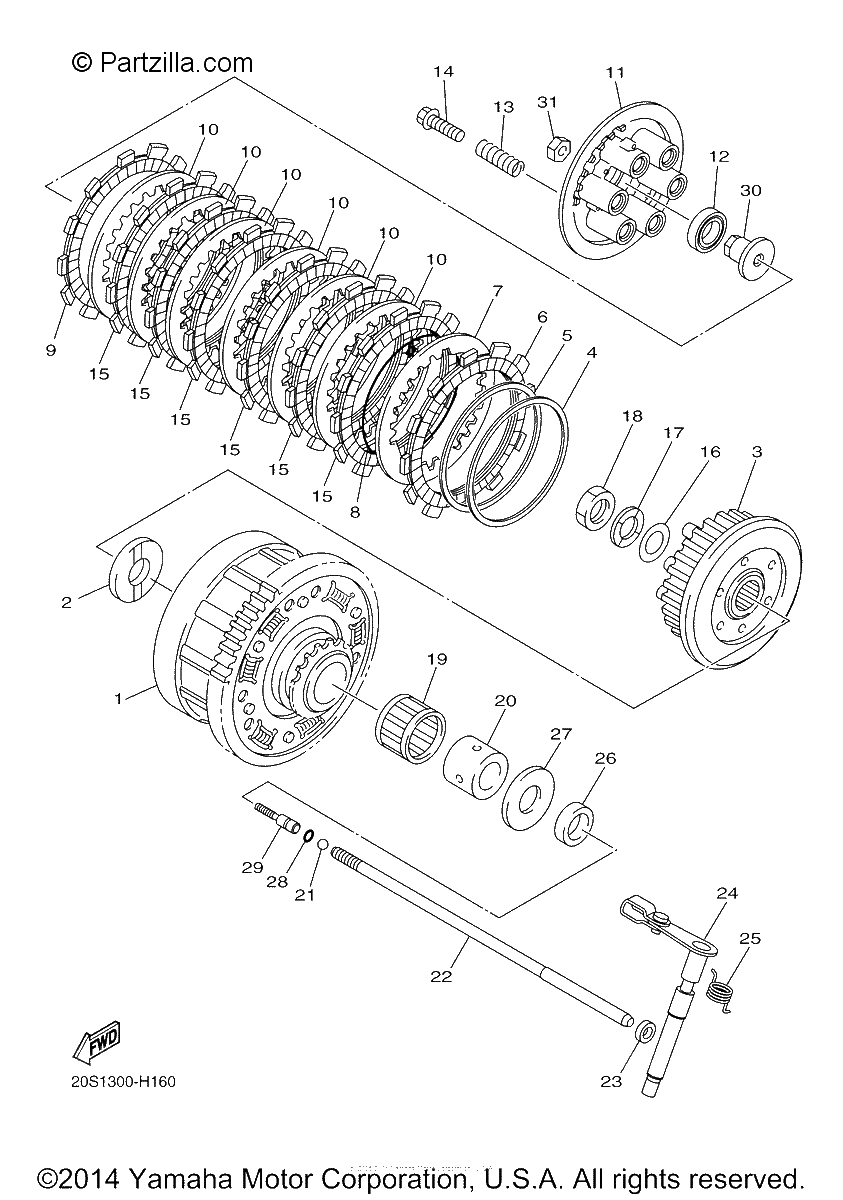

Diagrama de CLUTCH

Repuestos

#1
20S-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$499.38¢249 688
1
#2
5EB-16154-00-00
PLATE, THRUST 1
$24.72¢12 362
1
#3
20S-16371-10-00
BOSS, CLUTCH
$198.27¢99 136
1
#4
20S-16384-10-00
PLATE, SEAT
$20.90¢10 448
1
#5
5LV-16383-00-00
SPRING.,CUSHION
$48.53¢24 265
1
#6
5Y1-16331-01-00
PLATE, FRICTION 2
$28.40¢14 202
1
#7
3J2-16324-00-00
PLATE,CLUTCH 1
$11.50¢5 750
1
#8
20S-16385-00-00
RING SET
$7.38¢3 691
1
#9
4H7-16321-02-00
PLATE, FRICTION
$21.98¢10 988
1
#10
3J2-16324-00-00
PLATE,CLUTCH 1
$11.50¢5 750
1
#11
20S-16351-00-00
PLATE, PRESSURE 1
$86.16¢43 079
1
#12
93306-00315-00
BEARING
$30.60¢15 301
1
#13
90501-225A9-00
SPRING, COMPRESSION
$8.26¢4 129
1
#14
90119-06263-00
BOLT, WITH WASHER
$6.83¢3 415
1
#15
5LV-16321-20-00
Plate, Friction
$27.65¢13 823
1
#16
90201-20030-00
WASHER, PLATE
$6.73¢3 364
1
#17
90208-20001-00
WASHER, CONICAL SPRING
$16.09¢8 044
1
#18
90179-20007-00
NUT
$13.93¢6 963
1
#19
93310-340N8-00
BEARING,CYL.#10
$44.37¢22 184
1
#20
90387-25024-00
Collar
$35.21¢17 607
1
#21
93511-32027-00
BALL
$6.75¢3 375
1
#22
20S-16357-00-00
ROD, PUSH 2
$52.52¢26 260
1
#23
93109-08061-00
OIL SEAL
$6.22¢3 111
1
#24
20S-16380-00-00
PUSH LEVER ASSY
$101.71¢50 853
1
#25
90508-18052-00
SPRING, TORSION
$5.98¢2 990
1
#26
90201-25634-00
WASHER, PLATE
$10.38¢5 192
1
#27
1AE-16164-00-00
PLATE,THRUST 2
$16.90¢8 452
1
#28
93210-06632-00
O-Ring
$7.30¢3 651
1
#29
20S-16356-00-00
ROD, PUSH 1
$21.59¢10 793
1
#30
20S-16358-00-00
PLATE, PUSH
$14.88¢7 440
1
#31
95380-06600-00
NUT, HEXAGON
$4.65¢2 323
1
