STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

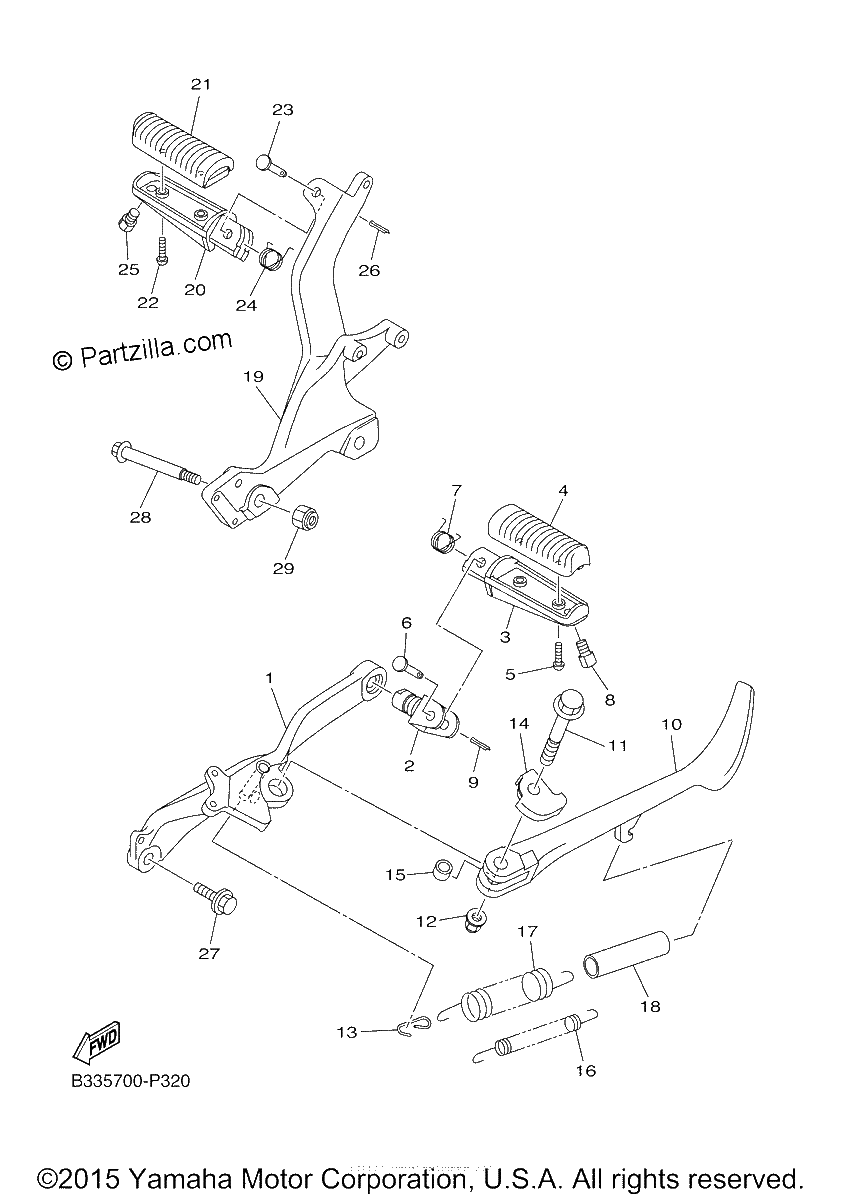

Diagrama de STAND FOOTREST

Repuestos

#1
B33-27411-00-00
FOOTREST 1
$328.89¢164 444
1
#2
46X-27411-10-00
FOOTREST 1
$35.49¢17 744
1
#3
4BH-27451-01-00
FOOTREST
$60.51¢30 256
1
#4
4BP-27413-00-00
COVER, FOOTREST
$32.09¢16 044
1
#5
98580-05014-00
SCREW, PAN HEAD
$8.74¢4 369
1
#6
91701-08035-00
PIN
$6.99¢3 494
1
#7
90508-20572-00
SPRING, TORSION
$7.94¢3 969
1
#8
1D7-27435-09-00
BOLT (replaces 1D7-27435-00-00)
$17.69¢8 844
1
#9
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#10
1TP-27311-00-00
STAND, SIDE
$195.91¢97 956
1
#11
90105-10426-00
BOLT, FLANGE
$8.77¢4 387
1
#12
90185-10008-00
NUT, SELF-LOCKING
$6.81¢3 406
1
#13
1TP-27315-00-00
LINK, SIDE STAND
$8.26¢4 131
1
#14
5S7-27322-00-00
WASHER
$16.44¢8 219
1
#15
90387-10020-00
COLLAR
$19.52¢9 763
1
#16
90506-23015-00
SPRING, TENSION
$10.66¢5 331
1
#17
90506-29006-00
SPRING, TENSION
$15.34¢7 669
1
#18
90445-16641-00
HOSE (L60)
$7.28¢3 638
1
#19
B33-27421-00-00
FOOTREST 2
$301.25¢150 625
1
#20
4BH-27461-01-00
FOOTREST
$60.30¢30 150
1
#21
4BP-27413-00-00
COVER, FOOTREST
$32.09¢16 044
1
#22
98580-05014-00
SCREW, PAN HEAD
$8.74¢4 369
1
#23
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#24
90508-20572-00
SPRING, TORSION
$7.94¢3 969
1
#25
1D7-27435-09-00
BOLT (replaces 1D7-27435-00-00)
$17.69¢8 844
1
#26
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#27
90105-10424-00
BOLT, FLANGE
$8.19¢4 094
1
#28
90105-10323-00
BOLT, FLANGE
$4.95¢2 475
1
#29
90185-10008-00
NUT, SELF-LOCKING
$6.81¢3 406
1
