REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

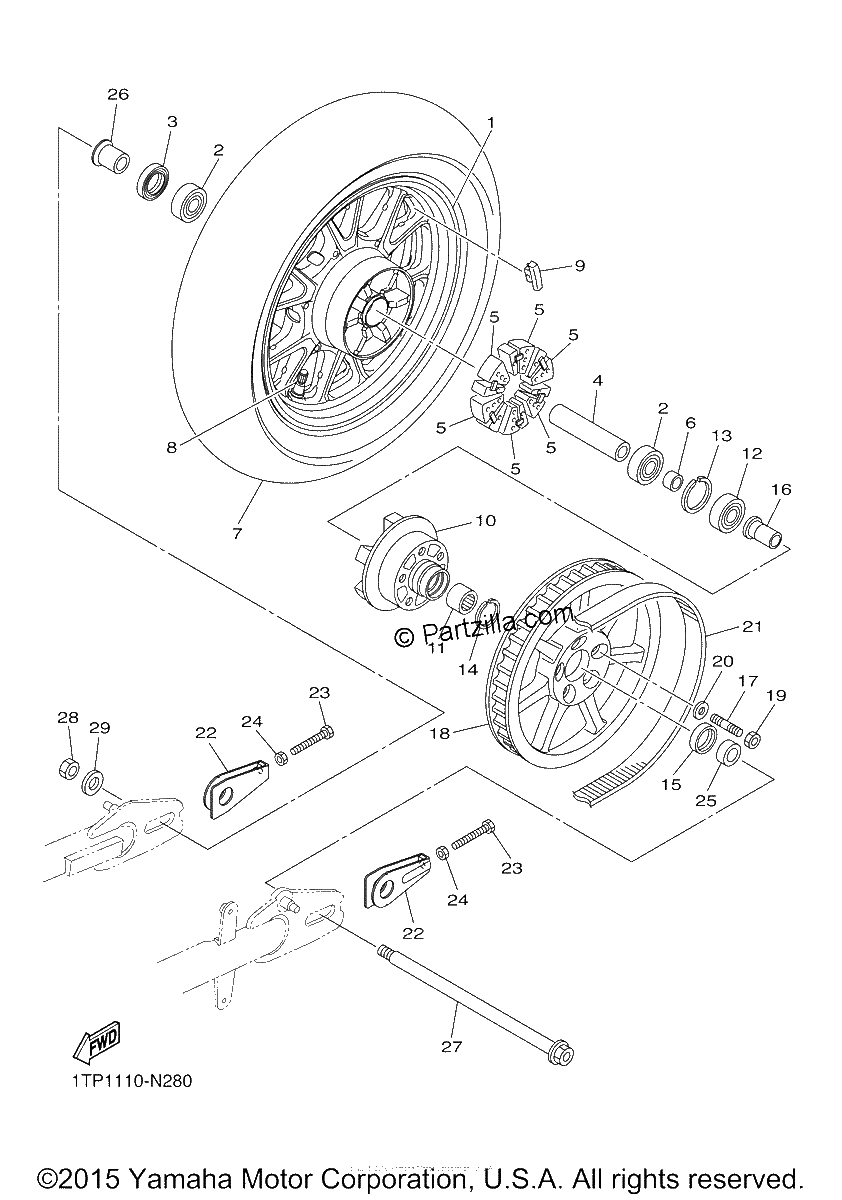

Diagrama de REAR WHEEL

Repuestos

#0
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$47.05¢23 525
1
#0
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$18.31¢9 156
1
#1
1TP-25338-00-00
CAST WHEEL, REAR
$656.24¢328 119
1
#2
93306-20469-00
BEARING
$43.46¢21 731
1
#3
93106-28023-00
OIL SEAL
$12.65¢6 325
1
#4
1TP-25317-00-00
SPACER, BEARING
$17.68¢8 838
1
#5
4WM-25364-00-00
DAMPER
$23.26¢11 631
1
#6
1TP-25383-00-00
COLLAR, WHEEL
$22.54¢11 269
1
#7
94115-16028-00
TIRE | BRIDGESTONE
$665.96¢332 981
1
#8
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$17.22¢8 612
1
#9
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$18.51¢9 256
1
#10
1TP-25366-00-00
CLUTCH, HUB
$210.36¢105 181
1
#11
93311-32698-00
BEARING
$78.56¢39 281
1
#12
93306-30437-00
BEARING
$68.03¢34 013
1
#13
99009-52500-00
CIRCLIP
$12.79¢6 394
1
#14
93450-35163-00
CIRCLIP
$3.04¢1 519
1
#15
93106-30004-00
OIL SEAL
$13.08¢6 538
1
#16
4WM-25376-10-00
COLLAR, WHEEL
$46.63¢23 313
1
#17
95612-12630-00
BOLT, STUD
$10.29¢5 144
1
#18
1TP-25470-00-00
SPROCKET, DRIVEN (70T)
$759.31¢379 656
1
#19
95614-12100-00
NUT, U
$4.86¢2 431
1
#20
90201-12045-00
WASHER, PLATE
$6.14¢3 069
1
#21
1TP-46241-00-00
V-BELT
$414.75¢207 375
1
#22
1TP-25388-00-00
PULLER, CHAIN 1
$27.70¢13 850
1
#23
90101-08777-00
BOLT
$7.49¢3 744
1
#24
95317-08700-00
NUT
$8.39¢4 194
1
#25
90387-20034-00
COLLAR
$16.54¢8 269
1
#26
90387-2000B-00
COLLAR
No Disponible
1
#27
1TP-25381-00-00
AXLE, WHEEL
$107.95¢53 975
1
#28
90185-18009-00
NUT, SELF-LOCKING
$18.90¢9 450
1
#29
90201-18020-00
WASHER, PLATE
$2.91¢1 456
1
