TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

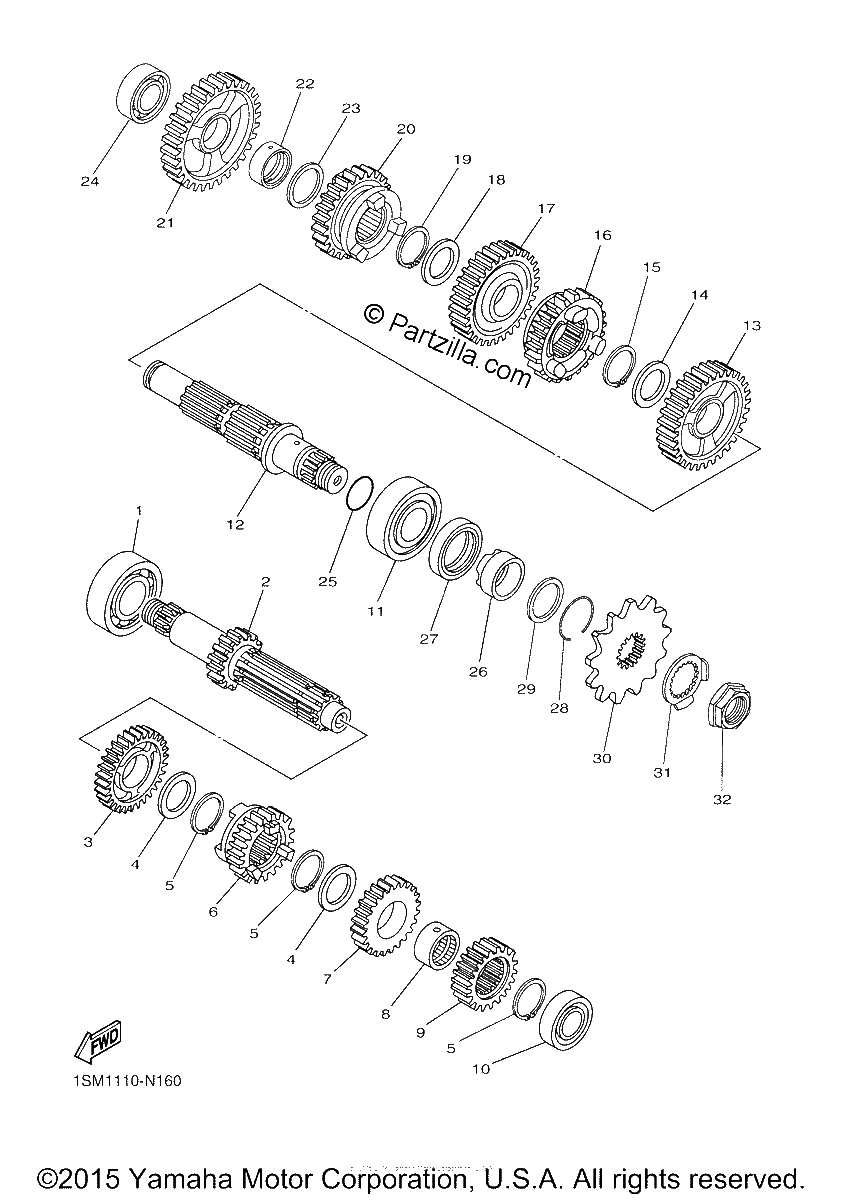

Diagrama de TRANSMISSION

Repuestos

#1
93306-00426-00
BEARING
$43.60¢21 800
1
#2
1SM-17411-20-00
AXLE, MAIN (replaces 1SM-17411-00-00)
$154.66¢77 331
1
#3
1SM-17151-00-00
GEAR, 5TH PINION
$82.26¢41 131
1
#4
90209-20008-00
WASHER
$10.21¢5 106
1
#5
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#6
1SM-17131-10-00
GEAR, 3RD PINION
$315.88¢157 938
1
#7
1SM-17141-00-00
GEAR, 4TH PINION
$92.31¢46 156
1
#8
90387-20006-00
Collar
$31.65¢15 825
1
#9
1SM-17121-00-00
GEAR, 2ND PINION
$81.72¢40 863
1
#10
93306-20336-00
BEARING
$32.40¢16 200
1
#11
93306-27209-00
BEARING
$82.17¢41 088
1
#12
1SM-1742A-00-00
DRIVE AXLE ASSY., 2
$189.41¢94 706
1
#13
1SM-17221-00-00
GEAR, 2ND WHEEL (28T)
$129.45¢64 725
1
#14
90209-23012-00
WASHER
$5.99¢2 994
1
#15
93410-26067-00
CIRCLIP,S-TYPE
$8.84¢4 419
1
#16
1SM-17241-10-00
GEAR, 3RD PINION (19T)
$177.99¢88 994
1
#17
17D-17231-10-00
GEAR, 3RD WHEEL (26T)
$120.29¢60 144
1
#18
90209-20008-00
WASHER
$10.21¢5 106
1
#19
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#20
1SM-17251-00-00
GEAR, 5TH WHEEL (25T)
$225.00¢112 500
1
#21
1SM-17211-00-00
GEAR, 1ST WHEEL
$106.14¢53 069
1
#22
90387-17012-00
COLLAR
$16.48¢8 238
1
#23
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#24
93306-20351-00
BEARING
$40.65¢20 325
1
#25
93210-196A4-00
O-RING
$2.33¢1 163
1
#26
90387-22033-00
Collar
$27.14¢13 569
1
#27
93102-28012-00
Oil Seal
$17.48¢8 738
1
#28
93450-40N50-00
Circlip
$1.47¢737
1
#29
90201-29M00-00
WASHER,PLATE
$6.47¢3 238
1
#30
9383B-13218-00
SPROCKET, DRIVE (13T)
$22.69¢11 344
1
#31
90215-20003-00
Washer, Lock
$7.30¢3 650
1
#32
90179-18001-00
Nut
$16.34¢8 169
1
